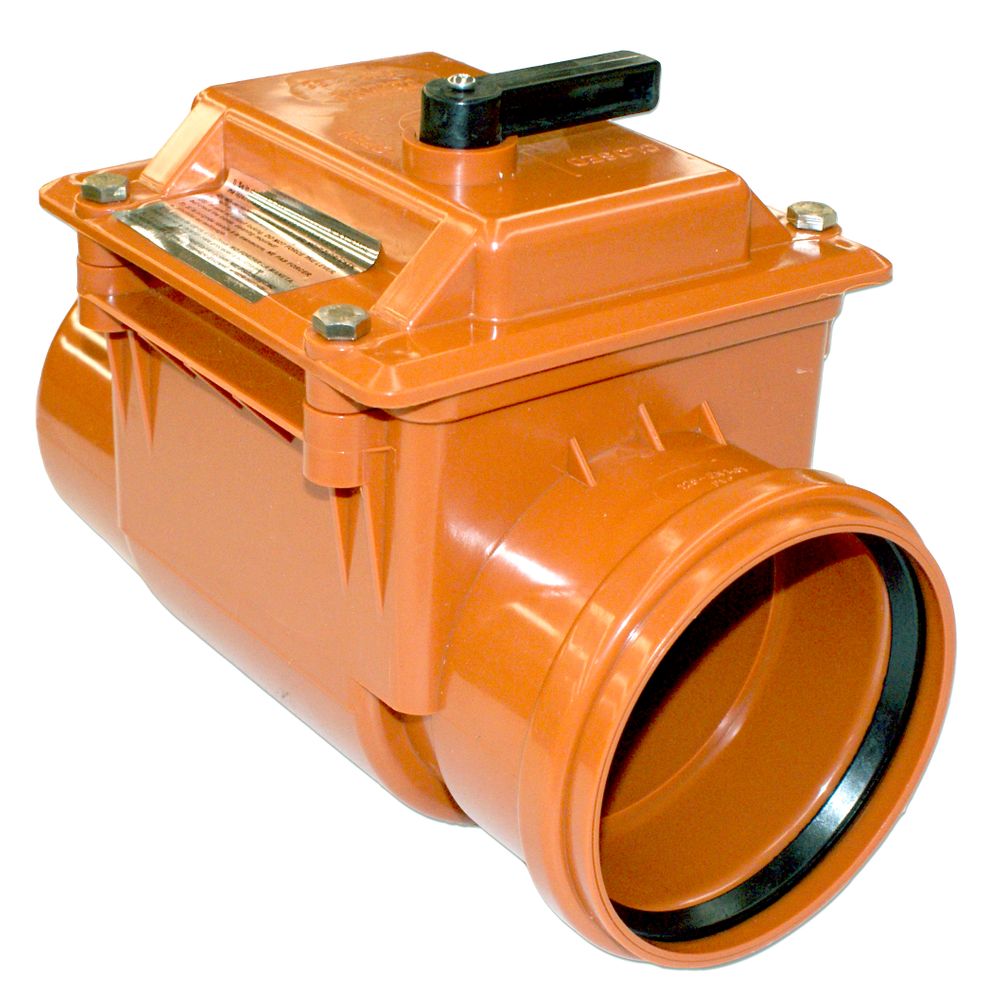

PVC CHECK VALVE LOCKABLE 160MM REDBR SO/SP

Code	STA160
Code	STA160
Reference	3575
Unit	pieces
Product model	Check valve PVC locking
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Description	Lockable PVC non-return valve that prevents wastewater from flowing back into the drainage pipe. The non-return valve is normally closed and opens automatically during discharge. The pipe can be manually closed using the integrated locking mechanism. Equipped with an inspection cover secured with stainless steel bolts. Full description
Documents	Technical data sheet

Availablility

Lockable PVC non-return valve that prevents wastewater from flowing back into the drainage pipe. The non-return valve is normally closed and opens automatically during discharge. The pipe can be manually closed using the integrated locking mechanism. Equipped with an inspection cover secured with stainless steel bolts.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓ Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Technical specifications

(Everything you should know)

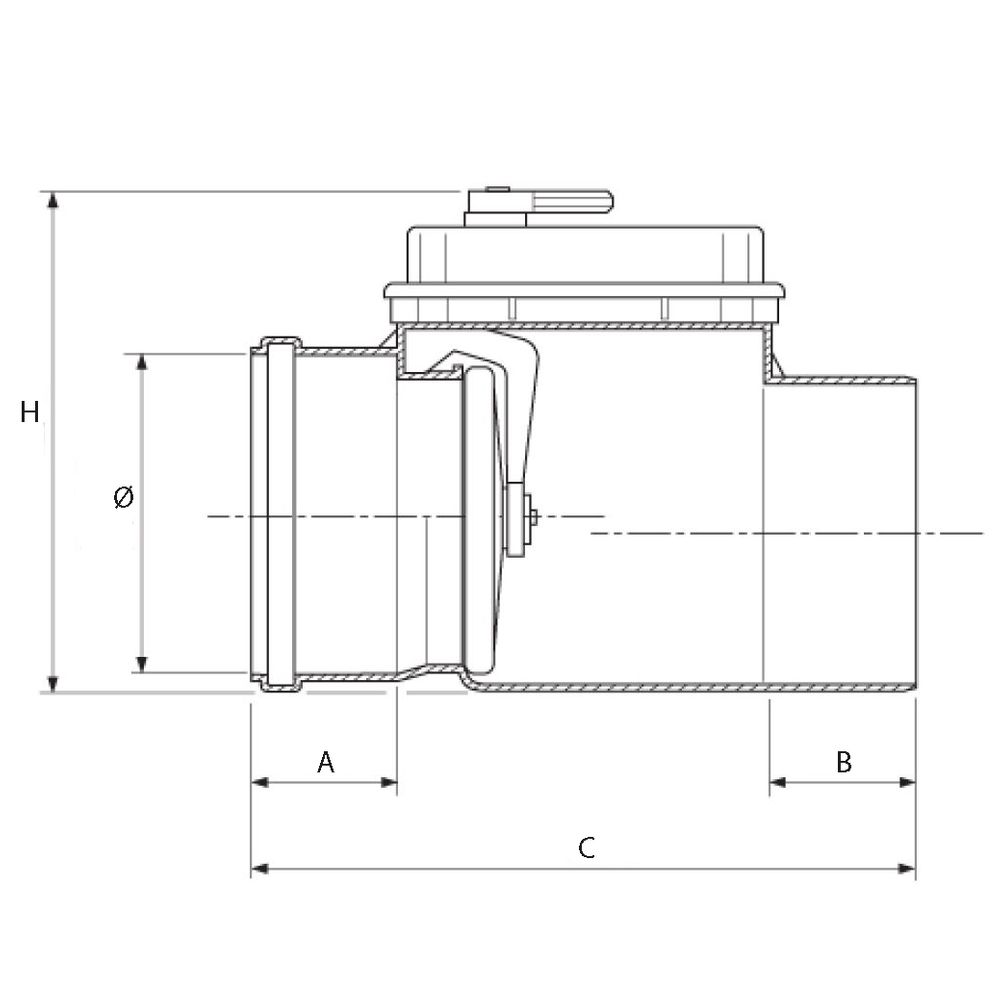

Product type	Check valve PVC locking
Diameter Ø (mm)	160mm
Raw material	PVC
Height (mm)	248mm
Colour	Reddish brown

A (mm)	103mm
B (mm)	68mm
C (mm)	350mm
Pipe wall	Solid wall

Product type	Check valve PVC locking
Diameter Ø (mm)	160mm
Raw material	PVC
Height (mm)	248mm
Colour	Reddish brown
A (mm)	103mm
B (mm)	68mm
C (mm)	350mm
Pipe wall	Solid wall
