C. IR. COV. D400 FSØ900 COØ700 H200 WATERTI. 1BAR

C. IR. COV. D400 FSØ900 COØ700 H200 WATERTI. 1BAR

C. IR. COV. D400 FSØ900 COØ700 H200 WATERTI. 1BAR
Code ARTI5-1BAR
Code ARTI5-1BAR
Reference 28780
Unit pieces
Product model Cast Iron Road Cover
Availablility

Availablility

Description

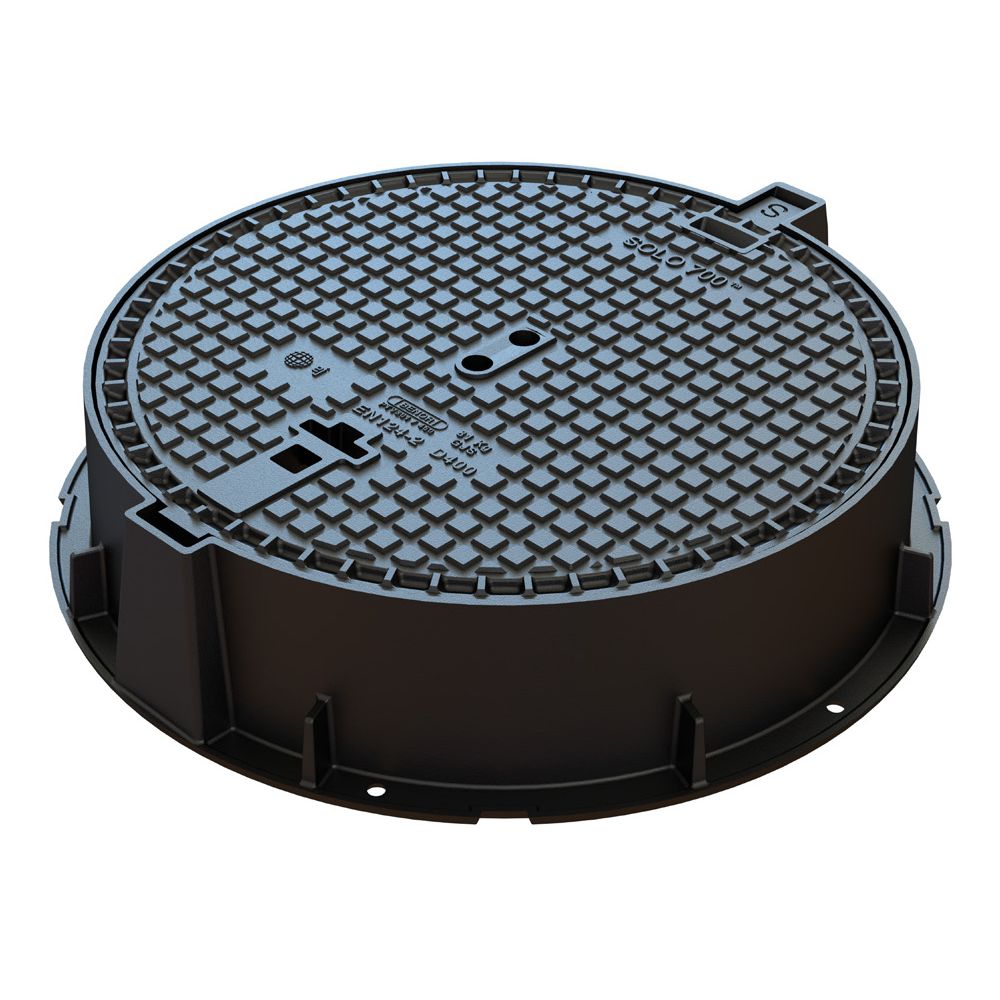

A hinged road manhole cover Ø 700 with circular frame. Watertight up to 1 bar – 6 stainless steel bolts (socket wrench No. 19). Elastic joint with a width of 27 mm under the entire seating of the cover Self-cleaning hinge Anti-blocking safety device at 90° Anti-slip surface Factory-treated with black water-based paint in accordance with SB 250 version 4.1 Removable cover at an opening angle of 120°

Full description
Documents
Technical data sheet

Availablility

A hinged road manhole cover Ø 700 with circular frame. Watertight up to 1 bar – 6 stainless steel bolts (socket wrench No. 19). Elastic joint with a width of 27 mm under the entire seating of the cover Self-cleaning hinge Anti-blocking safety device at 90° Anti-slip surface Factory-treated with black water-based paint in accordance with SB 250 version 4.1 Removable cover at an opening angle of 120°

Full description
Technical data sheet
Become a professional online customer
  • ✓ Access to your net prices
  • ✓ Exclusive online promotions
  • ✓ Tracking of your orders, deliveries, and invoices
  • ✓ Insight into the currently available stock per branch
  • ✓ 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

A hinged road manhole cover Ø 700 with circular frame. Watertight up to 1 bar – 6 stainless steel bolts (socket wrench No. 19).

  • Elastic joint with a width of 27 mm under the entire seating of the cover
  • Self-cleaning hinge
  • Anti-blocking safety device at 90°
  • Anti-slip surface
  • Factory-treated with black water-based paint in accordance with SB 250 version 4.1
  • Removable cover at an opening angle of 120°

Pros and cons

(According to our consultants)

Durability and reliability: the design guarantees good resistance for all types of traffic.

  • Reduced vibrations thanks to the high quality of the elastomer ring
  • The weight reduces vibrations transmitted to the structure
  • The position of the seal beneath the cover protects it during installation works
  • Ergonomics: several openings for easy handling


Simplicity: the frame with horizontal reinforcement reduces the cutting of paving stones during installation

Technical specifications

(Everything you should know)
Product type Cast Iron Road Cover
Load class D400
Shape Round
Certificate BENOR
Raw material Cast iron
Certificate norm EN 124
Weight (kg) 148kg
Height (mm) 200mm
Lid properties Hinged cover, Watertight
Clear opening diameter Ø (mm) 700mm
Label Zonder/Sans
Outer diameter Ø (mm) 900mm
Product type Cast Iron Road Cover
Load class D400
Shape Round
Certificate BENOR
Raw material Cast iron
Certificate norm EN 124
Weight (kg) 148kg
Height (mm) 200mm
Lid properties Hinged cover, Watertight
Clear opening diameter Ø (mm) 700mm
Label Zonder/Sans
Outer diameter Ø (mm) 900mm
