CA. IR. COV. D400 FSØ900 COØ700 H200 RWA/EP BENOR

CA. IR. COV. D400 FSØ900 COØ700 H200 RWA/EP BENOR

Code ARTI5RWA
Code ARTI5RWA
Reference 31169
Unit pieces
Product model Cast Iron Road Cover
Availablility

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem
Description

Hinged road cover Ø700 with circular frame. Elastic joint with a width of 27 mm under the entire seating of the cover. Self-cleaning hinge. Anti-blocking safety device at 90°. Anti-slip surface. Factory-treated with water-based black paint in accordance with SB 250, version 4.1. Cover removable at 120°.

Full description
Documents
Technical data sheet

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem

Hinged road cover Ø700 with circular frame. Elastic joint with a width of 27 mm under the entire seating of the cover. Self-cleaning hinge. Anti-blocking safety device at 90°. Anti-slip surface. Factory-treated with water-based black paint in accordance with SB 250, version 4.1. Cover removable at 120°.

Full description
Technical data sheet
Become a professional online customer
  • ✓ Access to your net prices
  • ✓ Exclusive online promotions
  • ✓ Tracking of your orders, deliveries, and invoices
  • ✓ Insight into the currently available stock per branch
  • ✓ 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

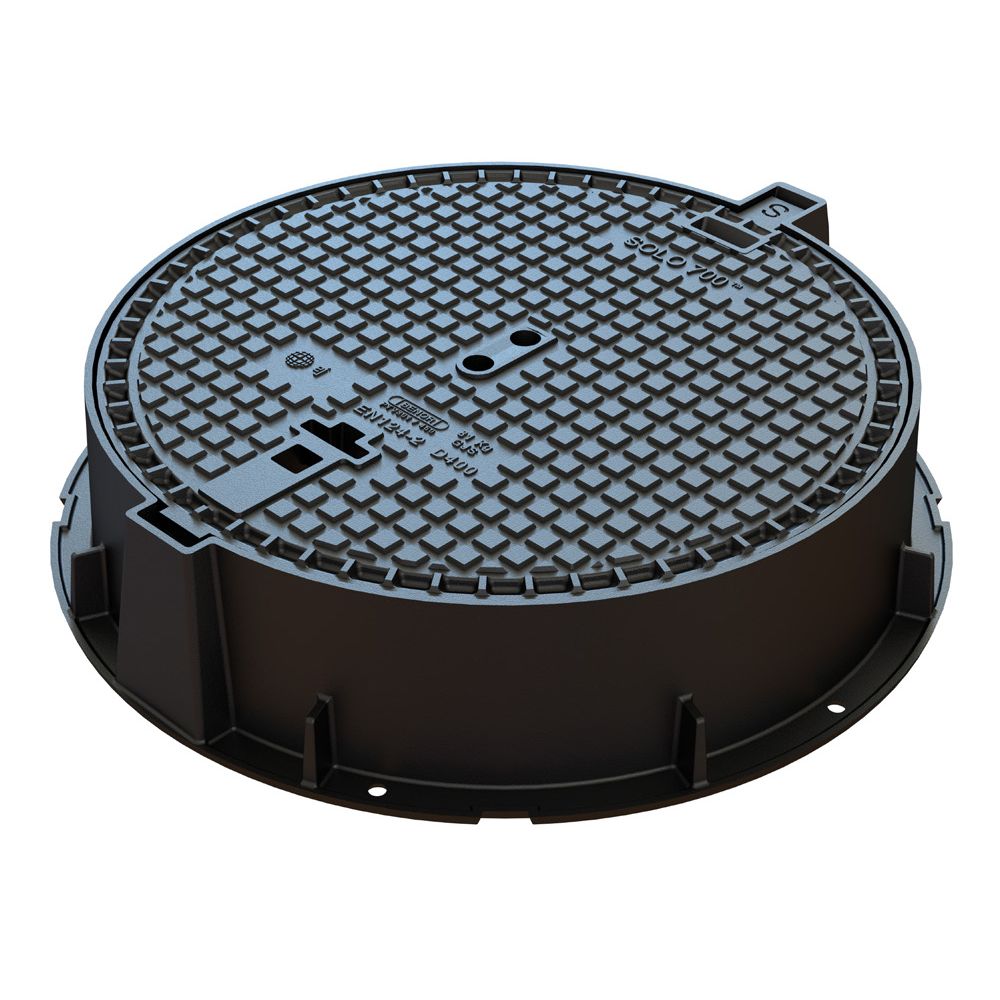

Hinged road cover Ø700 with circular frame.

  • Elastic joint with a width of 27 mm under the entire seating of the cover.
  • Self-cleaning hinge.
  • Anti-blocking safety device at 90°.
  • Anti-slip surface.
  • Factory-treated with water-based black paint in accordance with SB 250, version 4.1.
  • Cover removable at 120°.

Pros and cons

(According to our consultants)
  • The design ensures high resistance for all types of traffic.
  • The weight reduces vibrations transmitted to the structure.
  • Reduced vibrations thanks to the high quality of the elastomer ring.
  • Due to the position of the seal underneath the cover, it is protected during installation and maintenance works.
  • Multiple lifting openings for easy handling.
  • Smooth frame, ideal for installing paving stones against.

Technical specifications

(Everything you should know)
Product type Cast Iron Road Cover
Load class D400
Shape Round
Certificate BENOR
Raw material Cast iron
Certificate norm EN 124-1
Weight (kg) 133kg
Height (mm) 200mm
Lid properties Hinged cover
Clear opening diameter Ø (mm) 714mm
Label RWA
Outer diameter Ø (mm) 900mm
Product type Cast Iron Road Cover
Load class D400
Shape Round
Certificate BENOR
Raw material Cast iron
Certificate norm EN 124-1
Weight (kg) 133kg
Height (mm) 200mm
Lid properties Hinged cover
Clear opening diameter Ø (mm) 714mm
Label RWA
Outer diameter Ø (mm) 900mm
