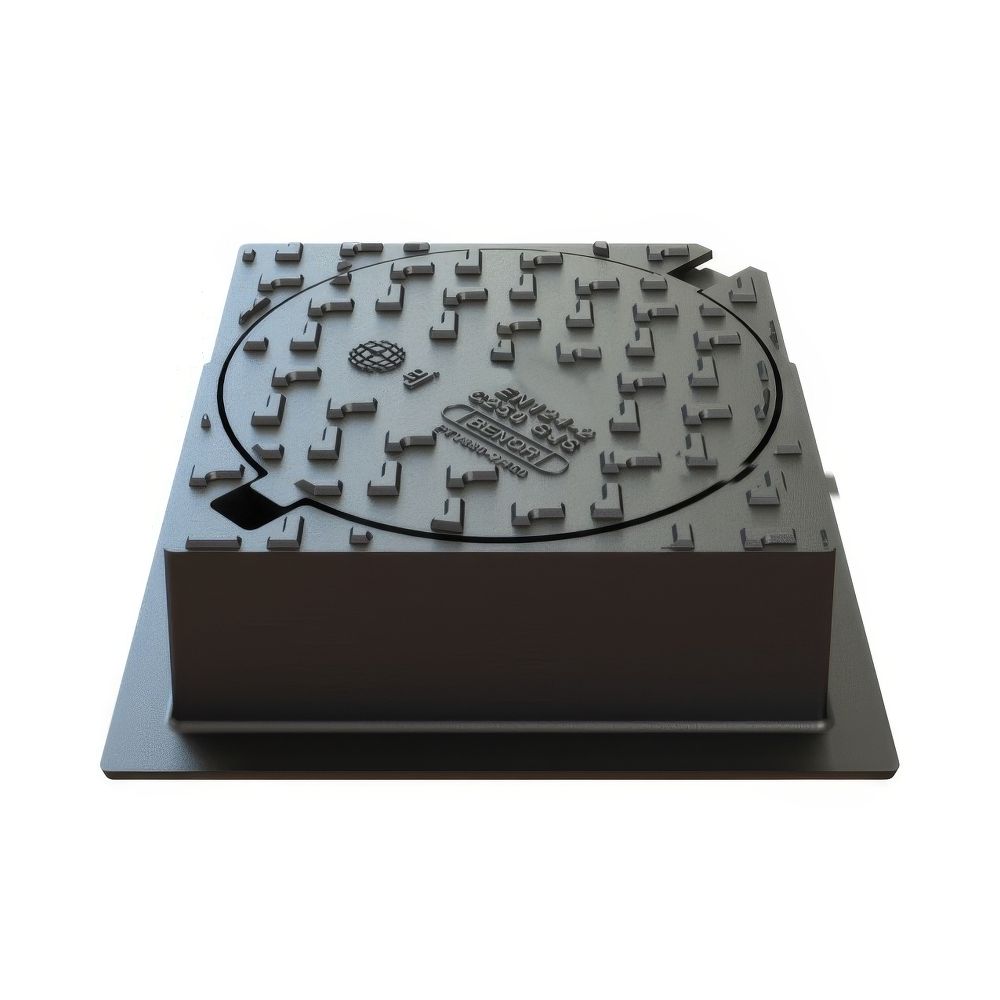

CAST IRON COVER 345x345/Ø218 DWA COPRO C250 H=100
CAST IRON COVER 345x345/Ø218 DWA COPRO C250 H=100
| Code | CH1FDWA |
| Code | CH1FDWA |
| Brand | EJ |
| Reference | 14595 |
| Unit | pieces |
| Product model | Lid cast iron |
| Availablility |
|
| Description |
Material: cast iron EN GJS 500-7 Test load: 250 kN in accordance with EN 124 Protective coating: non-toxic, non-polluting water-based black paint Cover and frame with anti-slip relief in accordance with EN 124, surface with 4L design Frame: monobloc casting, provided with a recess for lifting Cover: hinged, cannot be removed after installation |
| Documents |
-
Hamme
-
Oostakker
-
Zedelgem
Material: cast iron EN GJS 500-7 Test load: 250 kN in accordance with EN 124 Protective coating: non-toxic, non-polluting water-based black paint Cover and frame with anti-slip relief in accordance with EN 124, surface with 4L design Frame: monobloc casting, provided with a recess for lifting Cover: hinged, cannot be removed after installation
Become a professional online customer
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)- Material: cast iron EN GJS 500-7
- Test load: 250 kN in accordance with EN 124
- Protective coating: non-toxic, non-polluting water-based black paint
- Cover and frame with anti-slip relief in accordance with EN 124, surface with 4L design
- Frame: monobloc casting, provided with a recess for lifting
- Cover: hinged, cannot be removed after installation

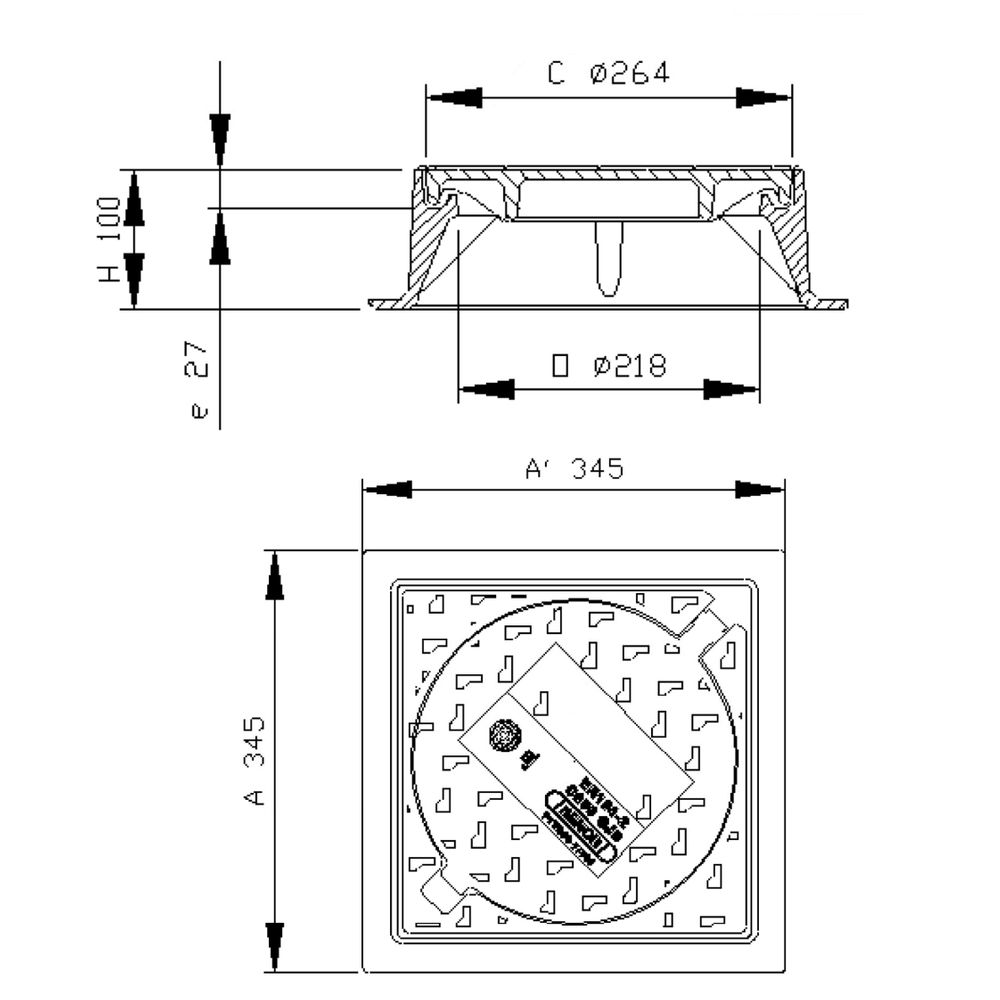

Technical specifications
(Everything you should know)| Product type | Lid cast iron |
| Width (mm) | 345mm |
| Length (mm) | 345mm |
| Load class | C250 |
| Shape | Square |
| Certificate | BENOR |
| Raw material | Cast iron |
| Weight (kg) | 16,1kg |
| Height (mm) | 100mm |
| Lid properties | Hydraulic seal |
| Cover weight (kg) | 4,7kg |
| Clear opening diameter Ø (mm) | 218mm |
| Label | DWA |
| Product type | Lid cast iron |
| Width (mm) | 345mm |
| Length (mm) | 345mm |
| Load class | C250 |
| Shape | Square |
| Certificate | BENOR |
| Raw material | Cast iron |
| Weight (kg) | 16,1kg |
| Height (mm) | 100mm |
| Lid properties | Hydraulic seal |
| Cover weight (kg) | 4,7kg |
| Clear opening diameter Ø (mm) | 218mm |
| Label | DWA |
