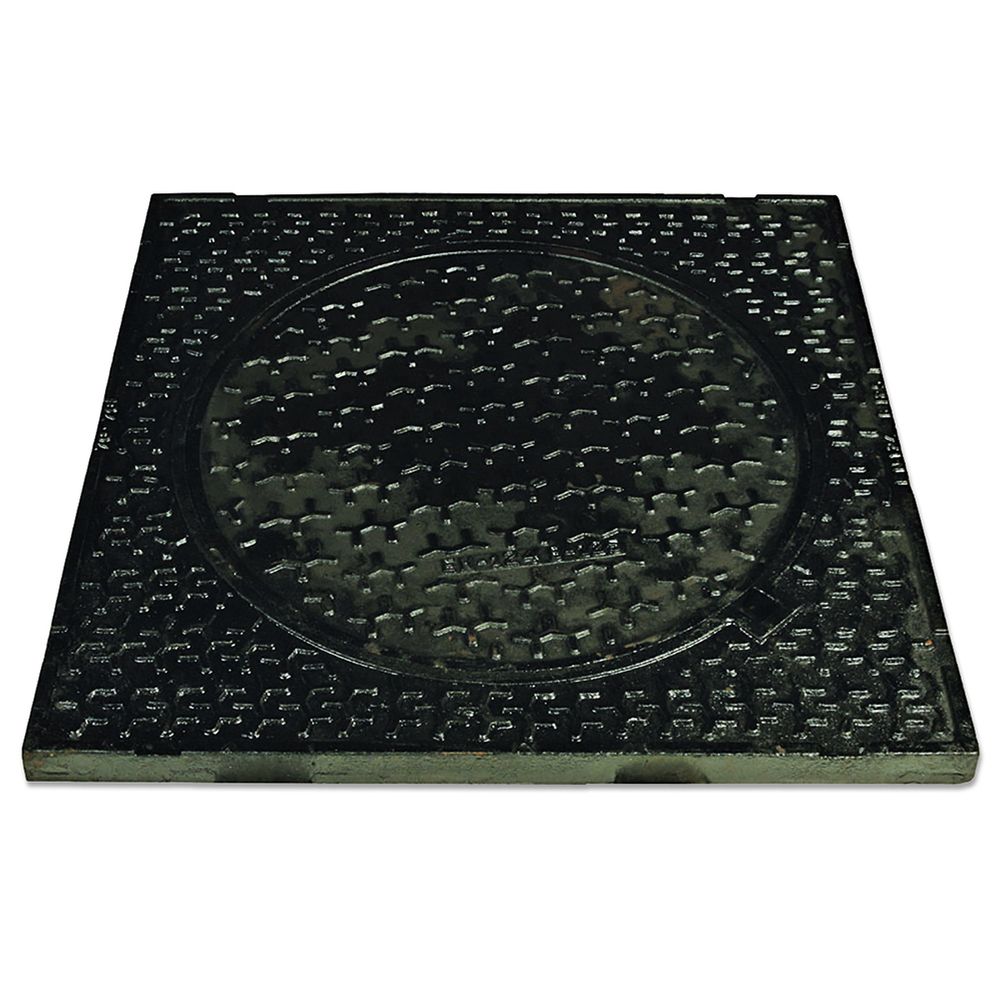

CAST IRON COVER B125 FS500X500 COØ350 ROUND FOOTP.
CAST IRON COVER B125 FS500X500 COØ350 ROUND FOOTP.
| Code | VOETP5050 |
| Code | VOETP5050 |
| Reference | 14877 |
| Unit | pieces |
| Product model | Sidewalk cover cast iron |
| Availablility |
Availablility |
| Description |
Cast iron cover with square frame and circular lid. With anti-slip surface and lifting slot. Ductile cast iron in accordance with EN 124-1 – B125. |
| Documents |
Availablility
Cast iron cover with square frame and circular lid. With anti-slip surface and lifting slot. Ductile cast iron in accordance with EN 124-1 – B125.
Become a professional online customer
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)Cast iron cover with square frame and circular lid.
- With anti-slip surface and lifting slot.
- Ductile cast iron in accordance with EN 124-1 – B125.
Technical specifications
(Everything you should know)| Product type | Sidewalk cover cast iron |
| Width (mm) | 500mm |
| Length (mm) | 500mm |
| Load class | B125 |
| Shape | Round |
| Certificate | Uncertified |
| Raw material | Cast iron |
| Weight (kg) | 1kg |
| Height (mm) | 30mm |
| Lid properties | Hydraulic seal |

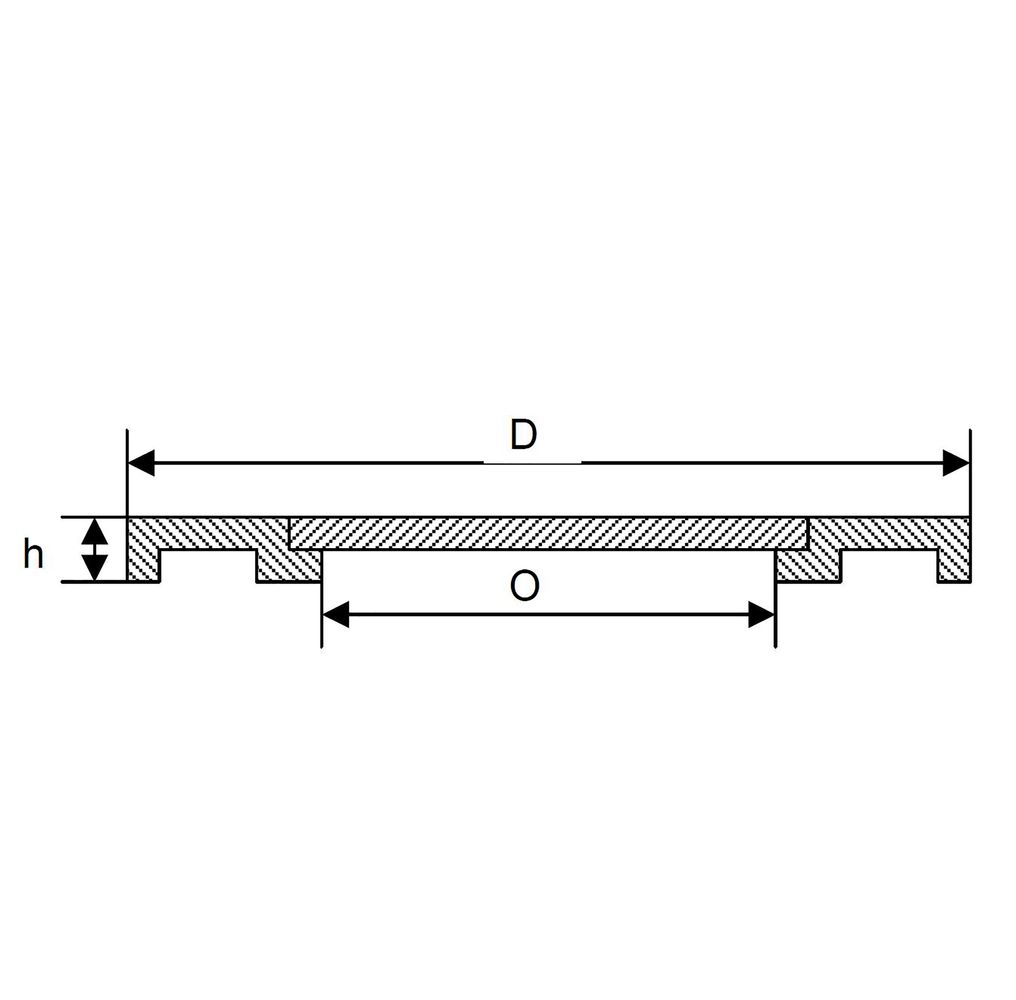

| Clear opening diameter Ø (mm) | 350mm |
| Product type | Sidewalk cover cast iron |
| Width (mm) | 500mm |
| Length (mm) | 500mm |
| Load class | B125 |
| Shape | Round |
| Certificate | Uncertified |
| Raw material | Cast iron |
| Weight (kg) | 1kg |
| Height (mm) | 30mm |
| Lid properties | Hydraulic seal |
| Clear opening diameter Ø (mm) | 350mm |
