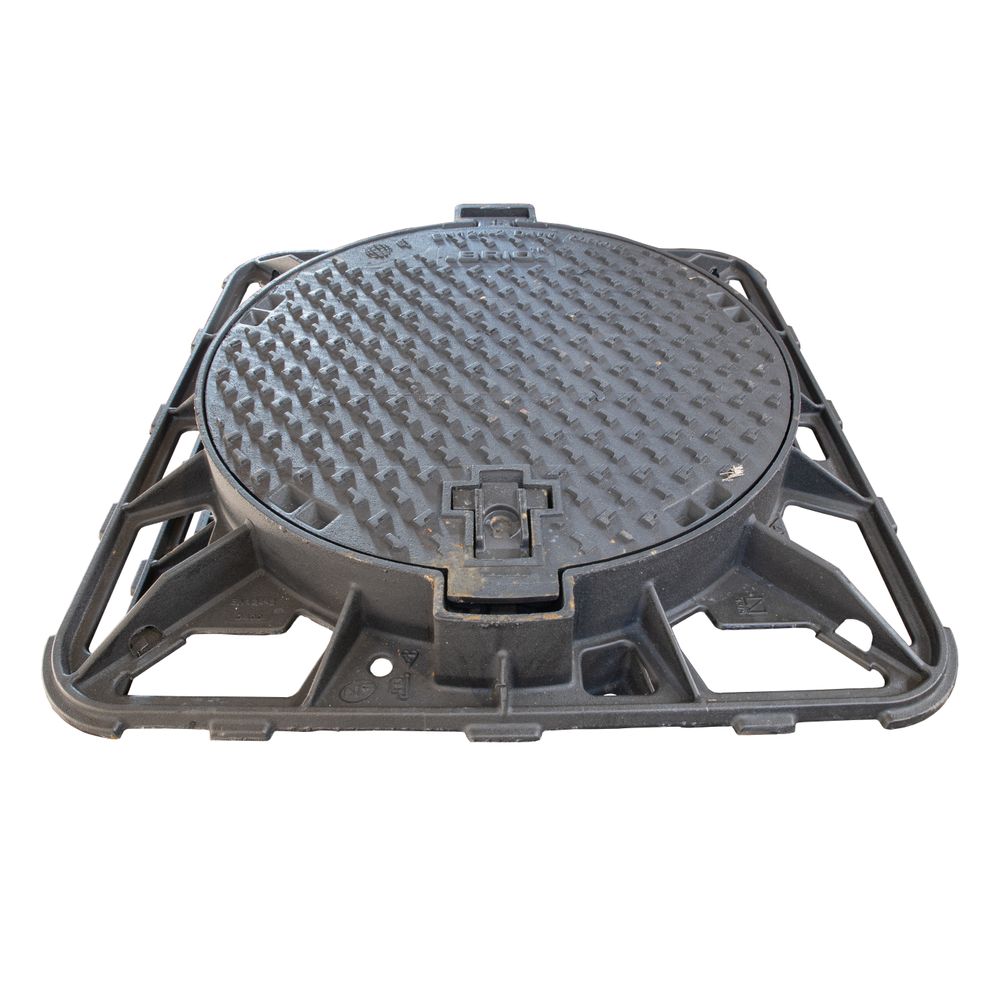

CAST IRON COVER D400 FS=950X950 CO=Ø700 BRIO COPRO
CAST IRON COVER D400 FS=950X950 CO=Ø700 BRIO COPRO
| Code | BRIO700D |
| Code | BRIO700D |
| Reference | 30398 |
| Unit | pieces |
| Product model | Cast Iron Road Cover |
| Availablility |
Availablility
|
| Description |
Material: cast iron EN-GJS-500-7 Test load: 400 kN in accordance with EN 124 Protective coating: black, water-based, non-toxic and environmentally friendly paint Frame: cast monoblock Cover: anti-slip relief type 4L, secured by the locking device (handle) Hinge: anti-backflow locking devices at 90° preventing accidental closing, identification marking “S”, opening angle 120° |
| Documents |
Availablility
-
Geel
-
Hamme
-
Hasselt
-
Herent
-
Herstal
-
Oostakker
-
Tielt
-
Zedelgem
Material: cast iron EN-GJS-500-7 Test load: 400 kN in accordance with EN 124 Protective coating: black, water-based, non-toxic and environmentally friendly paint Frame: cast monoblock Cover: anti-slip relief type 4L, secured by the locking device (handle) Hinge: anti-backflow locking devices at 90° preventing accidental closing, identification marking “S”, opening angle 120°
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)- Material: cast iron EN-GJS-500-7
- Test load: 400 kN in accordance with EN 124
- Protective coating: black, water-based, non-toxic and environmentally friendly paint
- Frame: cast monoblock
- Cover: anti-slip relief type 4L, secured by the locking device (handle)
- Hinge: anti-backflow locking devices at 90° preventing accidental closing, identification marking “S”, opening angle 120°
Technical specifications
(Everything you should know)| Product type | Cast Iron Road Cover |
| Width (mm) | 950mm |
| Length (mm) | 950mm |
| Load class | D400 |
| Shape | Round |
| Certificate | Copro |
| Raw material | Cast iron |
| Certificate norm | EN 124 |
| Weight (kg) | 87kg |
| Height (mm) | 100mm |
| Lid properties | Hinged cover |
| Clear opening diameter Ø (mm) | 700mm |
| Label | Zonder/Sans |
| Function | Hydraulic seal |
| Product type | Cast Iron Road Cover |
| Width (mm) | 950mm |
| Length (mm) | 950mm |
| Load class | D400 |
| Shape | Round |
| Certificate | Copro |
| Raw material | Cast iron |
| Certificate norm | EN 124 |
| Weight (kg) | 87kg |
| Height (mm) | 100mm |
| Lid properties | Hinged cover |
| Clear opening diameter Ø (mm) | 700mm |
| Label | Zonder/Sans |
| Function | Hydraulic seal |
