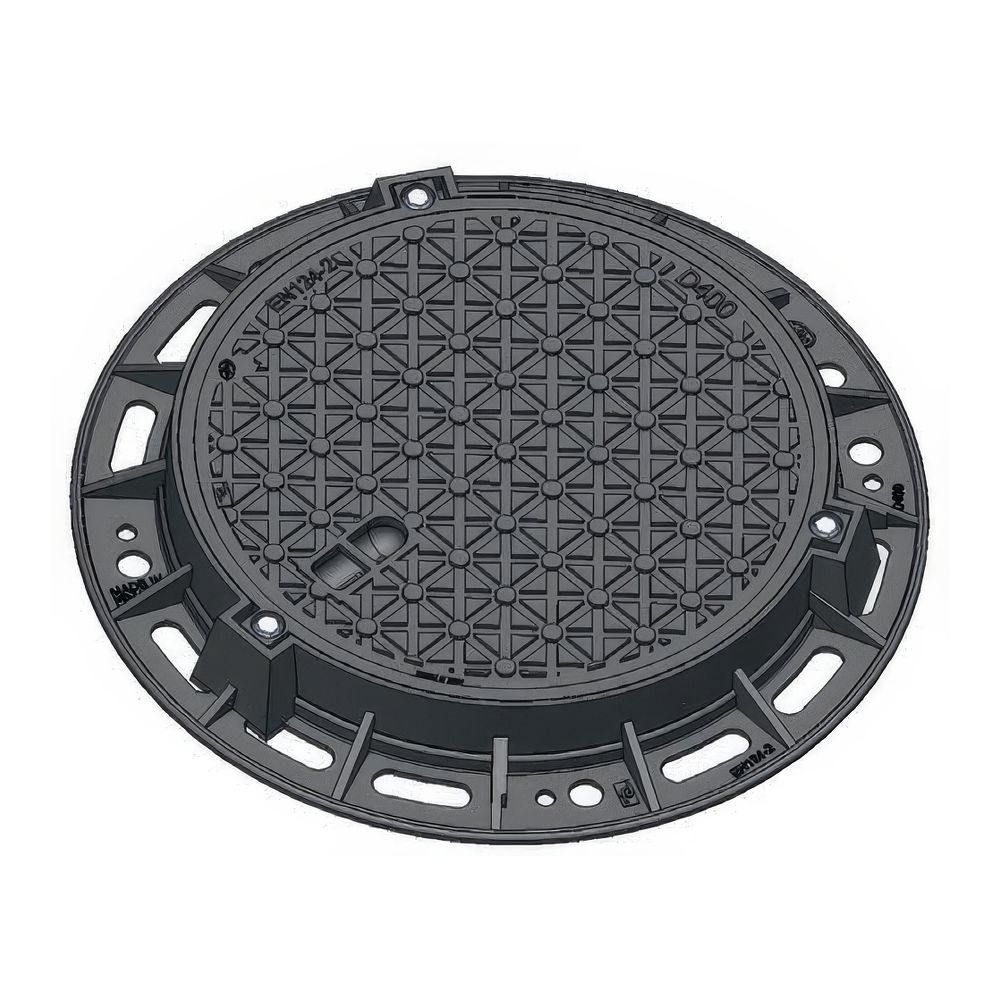

CAST IRON COVER D400 FSØ850 COØ600 H100 CITE WATER
CAST IRON COVER D400 FSØ850 COØ600 H100 CITE WATER
| Code | IJCOG |
| Code | IJCOG |
| Reference | 18377 |
| Unit | pieces |
| Product model | Cast Iron Road Cover |
| Availablility |
Availablility
|
| Description |
Cast iron EN-GJS-500-7 Bituminous coating Hydraulic seal Neoprene sealing ring Locking with 3 stainless steel M10 bolts Watertight up to 1 bar Splash-proof by means of an NBR ring on the frame Inscription available on request |
| Documents |
Availablility
-
Hasselt
-
Herent
-
Oostakker
Cast iron EN-GJS-500-7 Bituminous coating Hydraulic seal Neoprene sealing ring Locking with 3 stainless steel M10 bolts Watertight up to 1 bar Splash-proof by means of an NBR ring on the frame Inscription available on request
Become a professional online customer
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)- Cast iron EN-GJS-500-7
- Bituminous coating
- Hydraulic seal
- Neoprene sealing ring
- Locking with 3 stainless steel M10 bolts
- Watertight up to 1 bar
- Splash-proof by means of an NBR ring on the frame
- Inscription available on request
Technical specifications
(Everything you should know)| Product type | Cast Iron Road Cover |
| Load class | D400 |
| Shape | Round |
| Certificate | Uncertified |
| Raw material | Cast iron |
| Weight (kg) | 97kg |
| Height (mm) | 100mm |
| Lid properties | Hinged cover |
| Clear opening diameter Ø (mm) | 600mm |
| Outer diameter Ø (mm) | 850mm |
| Function | Hydraulic seal |
| Diameter Ø (mm) | 850mm |
| Product type | Cast Iron Road Cover |
| Load class | D400 |
| Shape | Round |
| Certificate | Uncertified |
| Raw material | Cast iron |
| Weight (kg) | 97kg |
| Height (mm) | 100mm |
| Lid properties | Hinged cover |
| Clear opening diameter Ø (mm) | 600mm |
| Outer diameter Ø (mm) | 850mm |
| Function | Hydraulic seal |
| Diameter Ø (mm) | 850mm |
