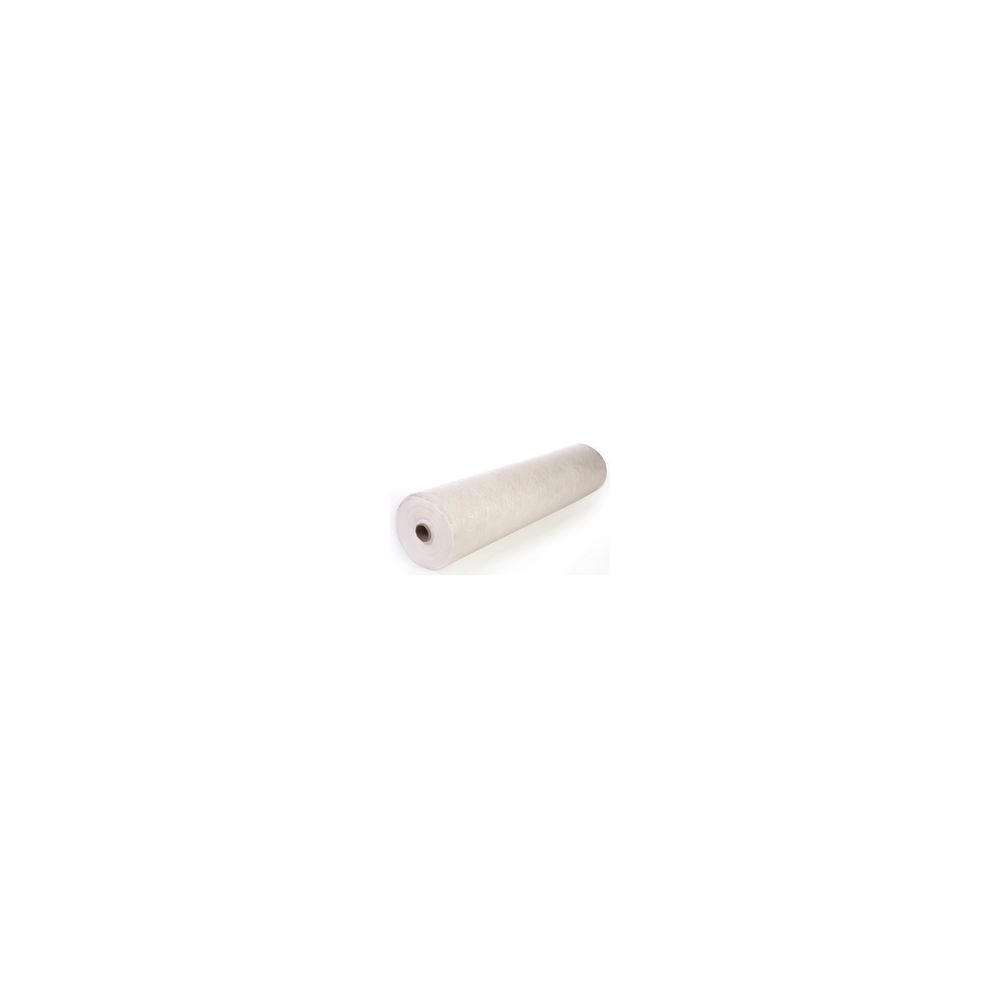

GEOTEXTILE NON-WOVEN 120G/M² 1.00X25M SNW14
GEOTEXTILE NON-WOVEN 120G/M² 1.00X25M SNW14
| Code | GEO120125 |
| Code | GEO120125 |
| Reference | 16590 |
| Unit | m² |
| Product model | Geotextile fabric |
| Availablility |
Availablility
|
| Documents |
Availablility
-
Geel
-
Hasselt
-
Herent
-
Herstal
-
Hoogstraten
-
Oostakker
-
Tielt
Become a professional online customer
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Technical specifications
(Everything you should know)| Product type | Geotextile fabric |
| Weight (g/m²) | 120g |
| Width (m) | 1m |
| Length (m) | 25m |
| Colour | White |
| Raw material | Polypropylene |
| Certificate | BENOR |
| Tensile strength MD (kN/m) | 8 |
| Tensile strength MD (kN/m) norm | EN ISO 10319 |
| Tensile strength CD (kN/m) | 8 |
| Tensile strength CD (kN/m) norm | EN ISO 10319 |
| Water vapour permeability (l/m2*sec) | 110 |
| Water vapour permeability (l/m2*sec) norm | EN ISO 11058 |
| Elongation at max. load CD (%) | 60 |
| Elongation at max. load CD (%) norm | EN ISO 10319 |
| Elongation at max. load MD (%) | 45 |
| Elongation at max. load MD (%) norm | EN ISO 10319 |
| Weight (g/m²) norm | EN ISO 9864 |
| Static perforation resistance CBR (N) | 1400 |
| Static perforation resistance CBR (N) norm | EN ISO 12236 |
| Resistance to dynamic perforation (mm) | 28 |
| Resistance to dynamic perforation (mm) norm | EN ISO 13433 |
| Mesh size (µm) | 120 |
| Mesh size (µm) norm | EN ISO 12956 |
| Water flow in plane at 20 kPa (m²/s) | 1x10-7 |
| Water flow in plane at 20 kPa (m²/s) rating | EN ISO 12958 |
| Thickness at 2 kPa (mm) | 1,2mm |
| Thickness at 2 kPa (mm) norm | EN ISO 9863-1 |
| Density (kg/dm³) | 0,91 |
| Melting point (°C) | 165 |
| Weight | 120g |
| Product type | Geotextile fabric |
| Weight (g/m²) | 120g |
| Width (m) | 1m |
| Length (m) | 25m |
| Colour | White |
| Raw material | Polypropylene |
| Certificate | BENOR |
| Tensile strength MD (kN/m) | 8 |
| Tensile strength MD (kN/m) norm | EN ISO 10319 |
| Tensile strength CD (kN/m) | 8 |
| Tensile strength CD (kN/m) norm | EN ISO 10319 |
| Water vapour permeability (l/m2*sec) | 110 |
| Water vapour permeability (l/m2*sec) norm | EN ISO 11058 |
| Elongation at max. load CD (%) | 60 |
| Elongation at max. load CD (%) norm | EN ISO 10319 |
| Elongation at max. load MD (%) | 45 |
| Elongation at max. load MD (%) norm | EN ISO 10319 |
| Weight (g/m²) norm | EN ISO 9864 |
| Static perforation resistance CBR (N) | 1400 |
| Static perforation resistance CBR (N) norm | EN ISO 12236 |
| Resistance to dynamic perforation (mm) | 28 |
| Resistance to dynamic perforation (mm) norm | EN ISO 13433 |
| Mesh size (µm) | 120 |
| Mesh size (µm) norm | EN ISO 12956 |
| Water flow in plane at 20 kPa (m²/s) | 1x10-7 |
| Water flow in plane at 20 kPa (m²/s) rating | EN ISO 12958 |
| Thickness at 2 kPa (mm) | 1,2mm |
| Thickness at 2 kPa (mm) norm | EN ISO 9863-1 |
| Density (kg/dm³) | 0,91 |
| Melting point (°C) | 165 |
| Weight | 120g |
