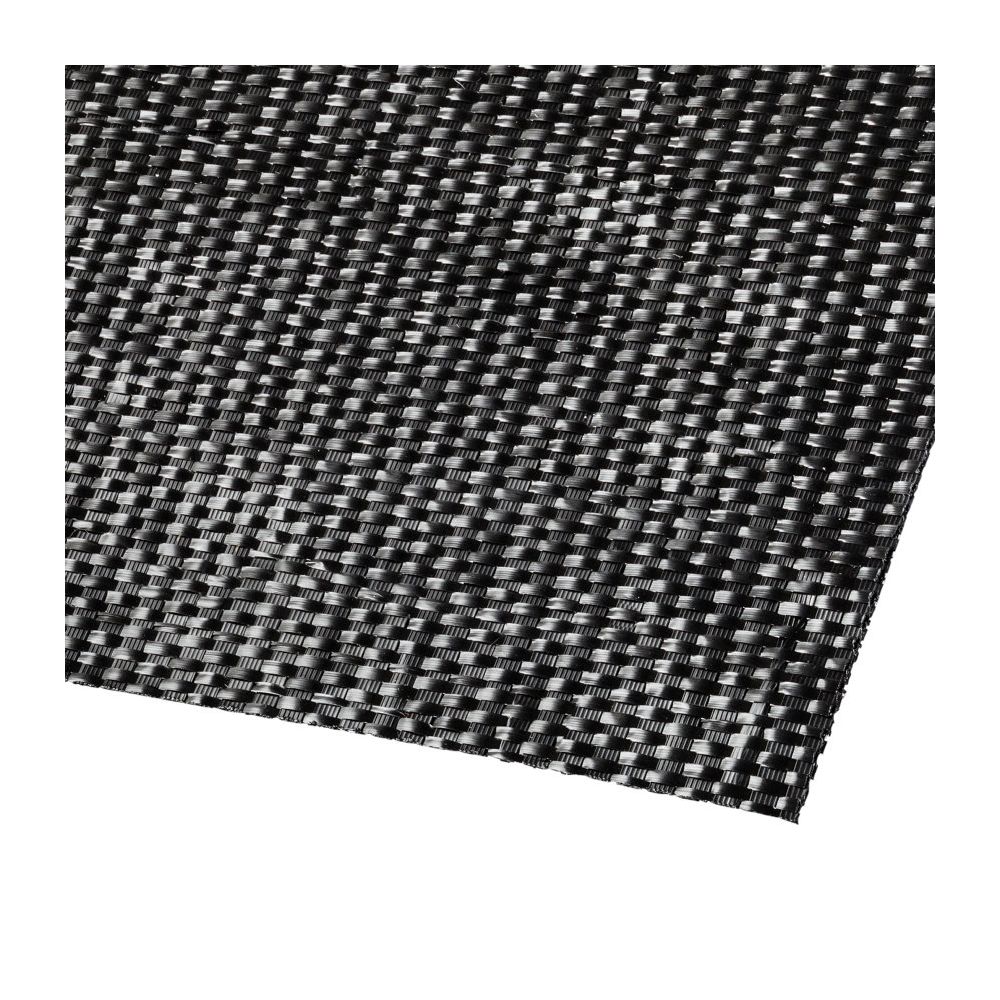

GEOTEXTILE WOVEN SG18/18B 5.25X100M BENOR 91G/M²

Code	GEO1818B
Code	GEO1818B
Reference	17981
Unit	m²
Product model	Geotextile fabric
Availablility	Availablility Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Documents	Technical data sheet

Availablility

Technical specifications

(Everything you should know)

Product type	Geotextile fabric
Weight (g/m²)	91g
Width (m)	5,25m
Length (m)	100m
Raw material	Polypropylene
Woven	yes
Certificate	BENOR
Tensile strength MD (kN/m)	17,25
Tensile strength MD (kN/m) norm	EN ISO 10319
Tensile strength CD (kN/m)	17,25
Tensile strength CD (kN/m) norm	EN ISO 10319
Water vapour permeability (l/m2*sec)	23
Water vapour permeability (l/m2*sec) norm	EN ISO 11058

Elongation at max. load CD (%)	26
Elongation at max. load CD (%) norm	EN ISO 10319
Elongation at max. load MD (%)	26
Elongation at max. load MD (%) norm	EN ISO 10319
Static perforation resistance CBR (N)	2000
Static perforation resistance CBR (N) norm	EN ISO 12236
Resistance to dynamic perforation (mm)	16
Resistance to dynamic perforation (mm) norm	EN ISO 13433
Thickness at 2 kPa (mm)	0,45mm
Thickness at 2 kPa (mm) norm	EN ISO 9863-1
Sand permeability O90 (µm)	305
Sand permeability O90 (mm) rating	EN ISO 12956
