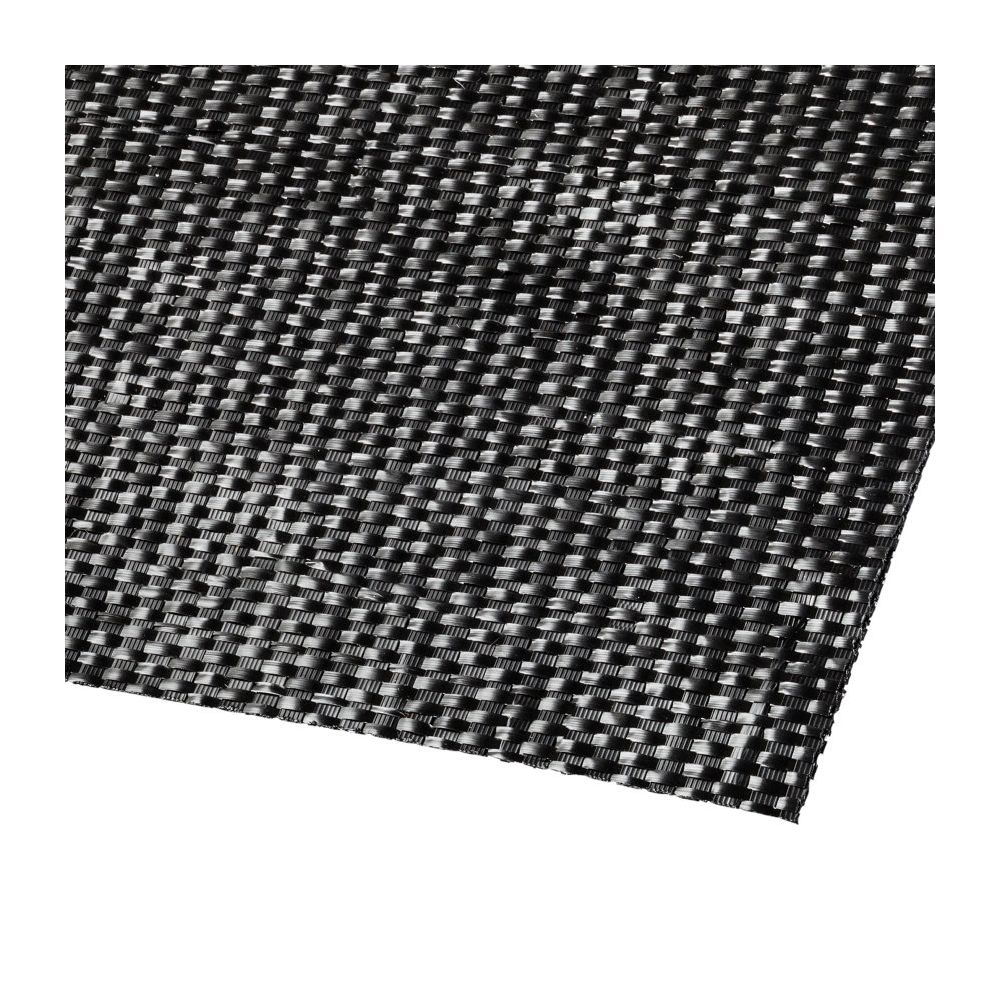

GEOTEXTILE WOVEN SG29/29 5.25X100M BENOR 170G/M²
GEOTEXTILE WOVEN SG29/29 5.25X100M BENOR 170G/M²
| Code | GEO2929 |
| Code | GEO2929 |
| Reference | 20900 |
| Unit | m² |
| Product model | Geotextile fabric |
| Availablility |
Availablility
|
| Documents |
Availablility
-
Geel
-
Herent
Become a professional online customer
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Technical specifications
(Everything you should know)| Product type | Geotextile fabric |
| Weight (g/m²) | 170g |
| Width (m) | 5,25m |
| Length (m) | 100m |
| Raw material | Polypropylene |
| Woven | yes |
| Certificate | BENOR |
| Tensile strength MD (kN/m) | 29 |
| Tensile strength MD (kN/m) norm | EN ISO 10319 |
| Tensile strength CD (kN/m) | 29 |
| Tensile strength CD (kN/m) norm | EN ISO 10319 |
| Water vapour permeability (l/m2*sec) | 23 |
| Water vapour permeability (l/m2*sec) norm | EN ISO 11058 |
| Elongation at max. load CD (%) | 26 |
| Elongation at max. load CD (%) norm | EN ISO 10319 |
| Elongation at max. load MD (%) | 26 |
| Elongation at max. load MD (%) norm | EN ISO 10319 |
| Static perforation resistance CBR (N) | 4100 |
| Static perforation resistance CBR (N) norm | EN ISO 12236 |
| Resistance to dynamic perforation (mm) | 11 |
| Resistance to dynamic perforation (mm) norm | EN ISO 13433 |
| Thickness at 2 kPa (mm) | 1mm |
| Thickness at 2 kPa (mm) norm | EN ISO 9863-1 |
| Sand permeability O90 (µm) | 330 |
| Sand permeability O90 (mm) rating | EN ISO 12956 |
