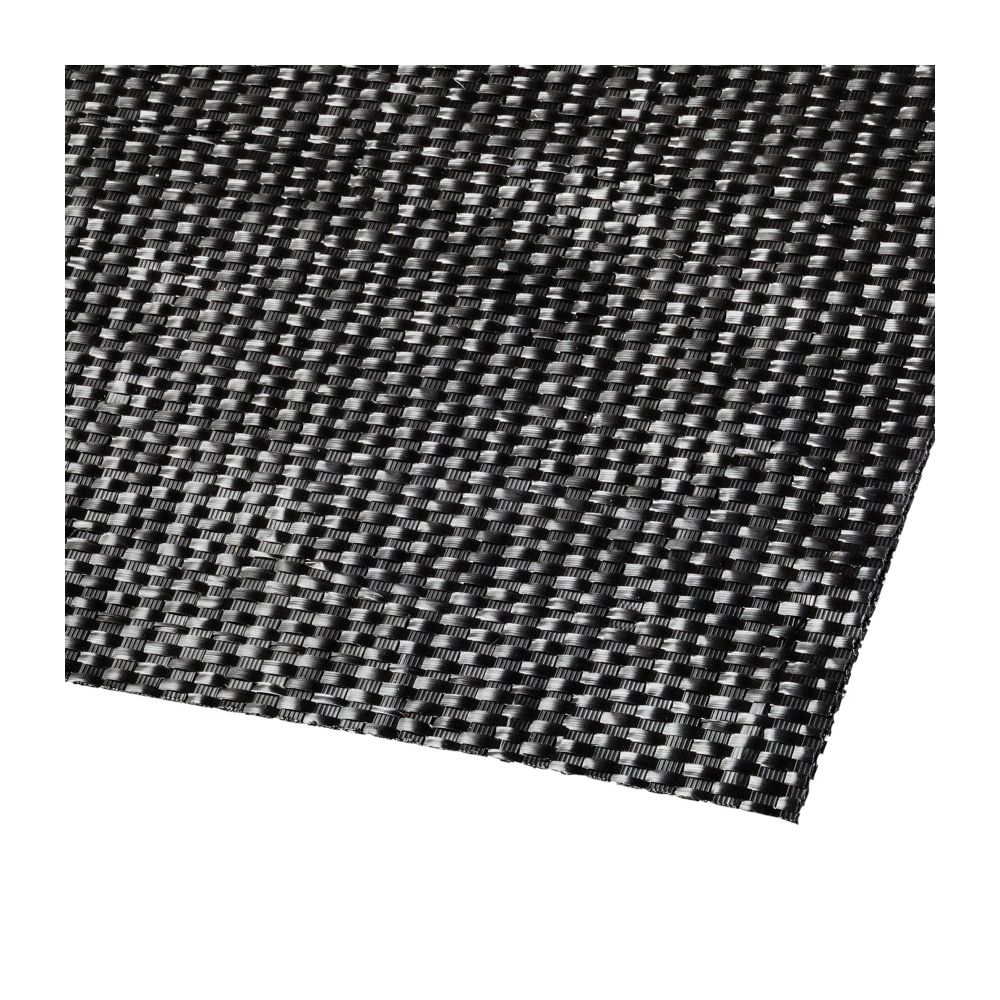

GEOTEXTILE WOVEN SG40/40 5.25X100M BENOR 185G
GEOTEXTILE WOVEN SG40/40 5.25X100M BENOR 185G
| Code | GEO4040F |
| Code | GEO4040F |
| Reference | 20901 |
| Unit | m² |
| Product model | Geotextile fabric |
| Availablility |
Availablility
|
| Documents |
Availablility
-
Geel
Become a professional online customer
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Technical specifications
(Everything you should know)| Product type | Geotextile fabric |
| Weight (g/m²) | 185g |
| Width (m) | 5,25m |
| Length (m) | 100m |
| Raw material | Polypropylene |
| Woven | yes |
| Certificate | BENOR |
| Tensile strength MD (kN/m) | 40 |
| Tensile strength MD (kN/m) norm | EN ISO 10319 |
| Tensile strength CD (kN/m) | 40 |
| Tensile strength CD (kN/m) norm | EN ISO 10319 |
| Water vapour permeability (l/m2*sec) | 25 |
| Water vapour permeability (l/m2*sec) norm | EN ISO 11058 |
| Elongation at max. load CD (%) | 14 |
| Elongation at max. load CD (%) norm | EN ISO 10319 |
| Elongation at max. load MD (%) | 17,5 |
| Elongation at max. load MD (%) norm | EN ISO 10319 |
| Static perforation resistance CBR (N) | 5000 |
| Static perforation resistance CBR (N) norm | EN ISO 12236 |
| Resistance to dynamic perforation (mm) | 12 |
| Resistance to dynamic perforation (mm) norm | EN ISO 13433 |
| Mesh size (µm) | 350 |
| Mesh size (µm) norm | EN ISO 12956 |
| Thickness at 2 kPa (mm) | 1mm |
| Thickness at 2 kPa (mm) norm | EN ISO 9863-1 |
| Density (kg/dm³) | 0,91 |
| Melting point (°C) | 165 |
| Product type | Geotextile fabric |
| Weight (g/m²) | 185g |
| Width (m) | 5,25m |
| Length (m) | 100m |
| Raw material | Polypropylene |
| Woven | yes |
| Certificate | BENOR |
| Tensile strength MD (kN/m) | 40 |
| Tensile strength MD (kN/m) norm | EN ISO 10319 |
| Tensile strength CD (kN/m) | 40 |
| Tensile strength CD (kN/m) norm | EN ISO 10319 |
| Water vapour permeability (l/m2*sec) | 25 |
| Water vapour permeability (l/m2*sec) norm | EN ISO 11058 |
| Elongation at max. load CD (%) | 14 |
| Elongation at max. load CD (%) norm | EN ISO 10319 |
| Elongation at max. load MD (%) | 17,5 |
| Elongation at max. load MD (%) norm | EN ISO 10319 |
| Static perforation resistance CBR (N) | 5000 |
| Static perforation resistance CBR (N) norm | EN ISO 12236 |
| Resistance to dynamic perforation (mm) | 12 |
| Resistance to dynamic perforation (mm) norm | EN ISO 13433 |
| Mesh size (µm) | 350 |
| Mesh size (µm) norm | EN ISO 12956 |
| Thickness at 2 kPa (mm) | 1mm |
| Thickness at 2 kPa (mm) norm | EN ISO 9863-1 |
| Density (kg/dm³) | 0,91 |
| Melting point (°C) | 165 |
