GRES MOFBUIS BENOR DN250MM L=2.50M KLASSE 160 N
GRES MOFBUIS BENOR DN250MM L=2.50M KLASSE 160 N
| Code | GRES250250 |
| Code | GRES250250 |
| Brand | Euro Sweillem |
| Reference | 15802 |
| Unit | meter |
| Product model | Socket pipe stoneware |
| Description |

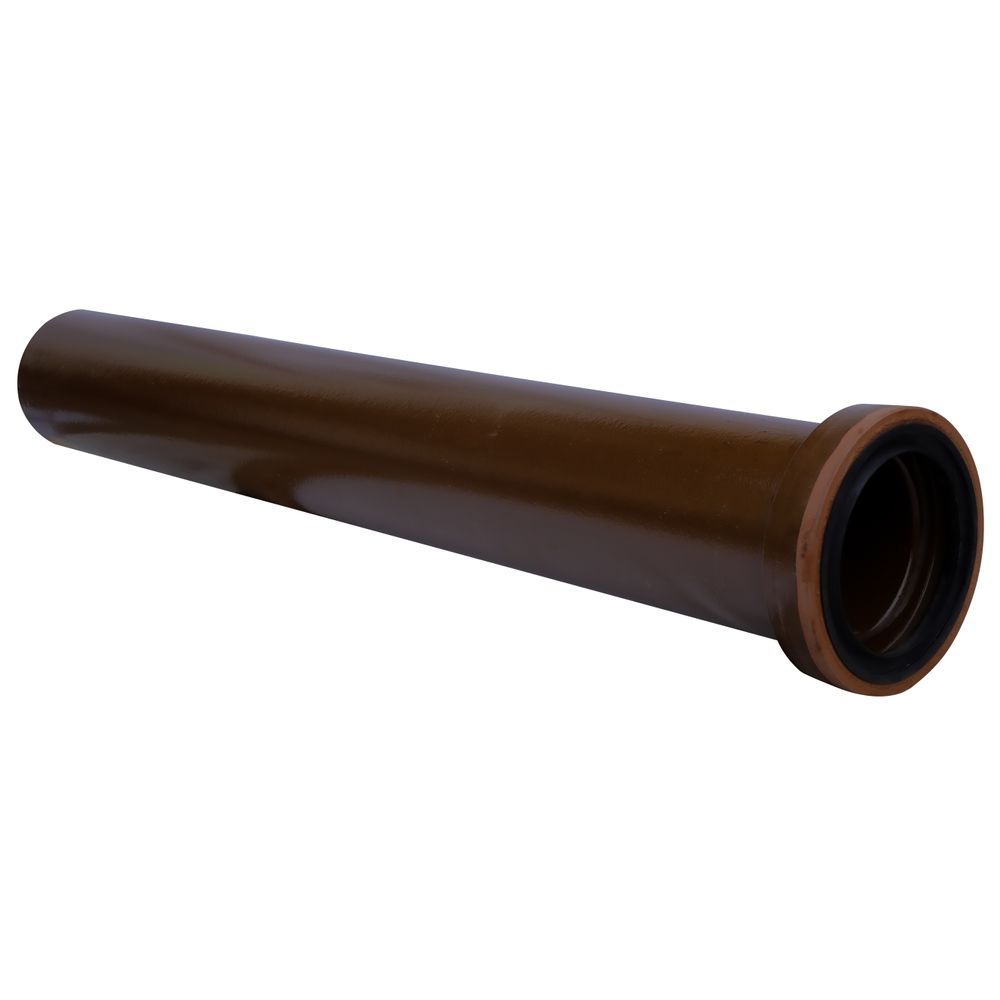

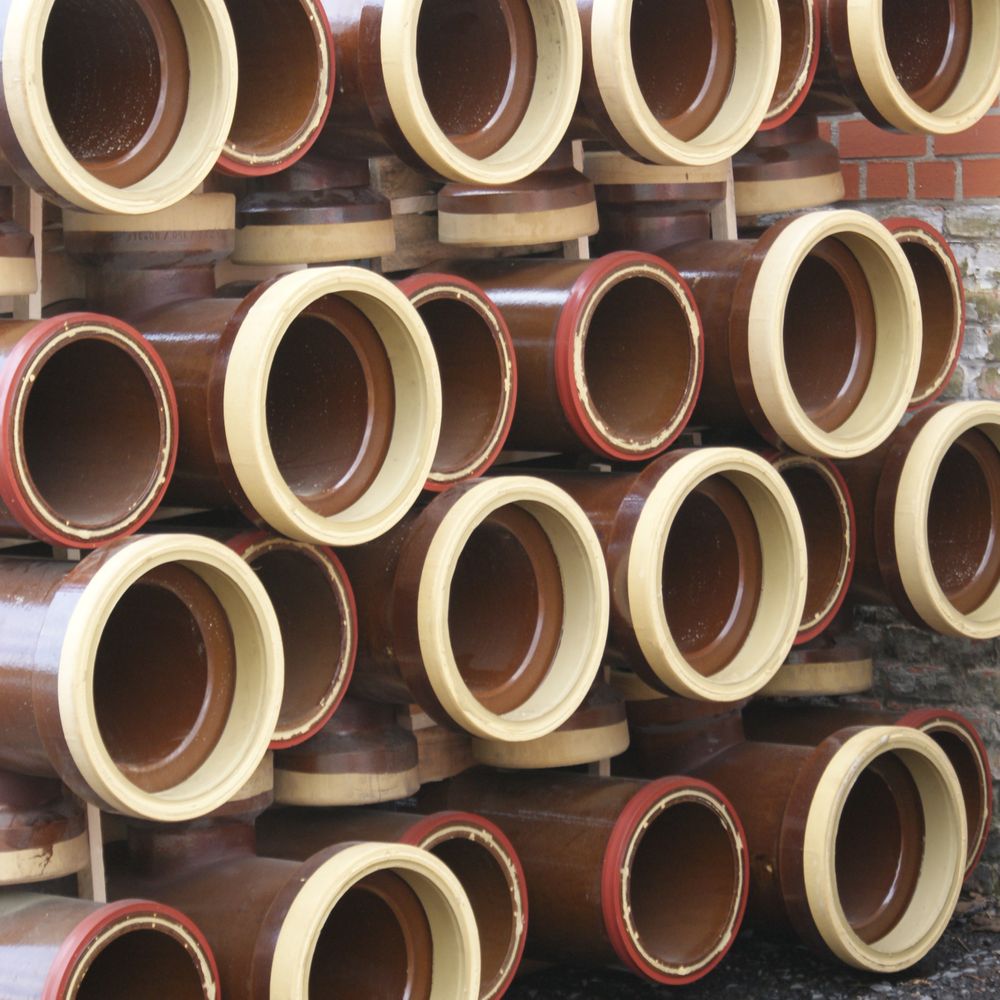

Stoneware pipe, manufactured from glazed high-quality fired clay, supplied with sealing. Diameters from 100 to 200 mm are equipped with F-type jointing system, with a sealing ring in the socket. From diameter 200 mm onwards, the pipe is equipped with C-type jointing system, featuring a polyurethane seal in the socket and on the spigot end. |
Availablility
-
Geel
-
Hasselt
-
Herent
Stoneware pipe, manufactured from glazed high-quality fired clay, supplied with sealing. Diameters from 100 to 200 mm are equipped with F-type jointing system, with a sealing ring in the socket. From diameter 200 mm onwards, the pipe is equipped with C-type jointing system, featuring a polyurethane seal in the socket and on the spigot end.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)Stoneware pipe, manufactured from glazed high-quality fired clay, supplied with sealing. Diameters from 100 to 200 mm are equipped with F-type jointing system, with a sealing ring in the socket. From diameter 200 mm onwards, the pipe is equipped with C-type jointing system, featuring a polyurethane seal in the socket and on the spigot end.
Application
Discharge of wastewater into the public sewer system.
Pros and cons
(According to our consultants)Technical specifications
(Everything you should know)| Product type | Socket pipe stoneware |
| Diameter Ø (mm) | 250mm |
| Length (m) | 2,5m |
| Ring stiffness | KL160 |
| Raw material | GRES |
| Colour | Brown |

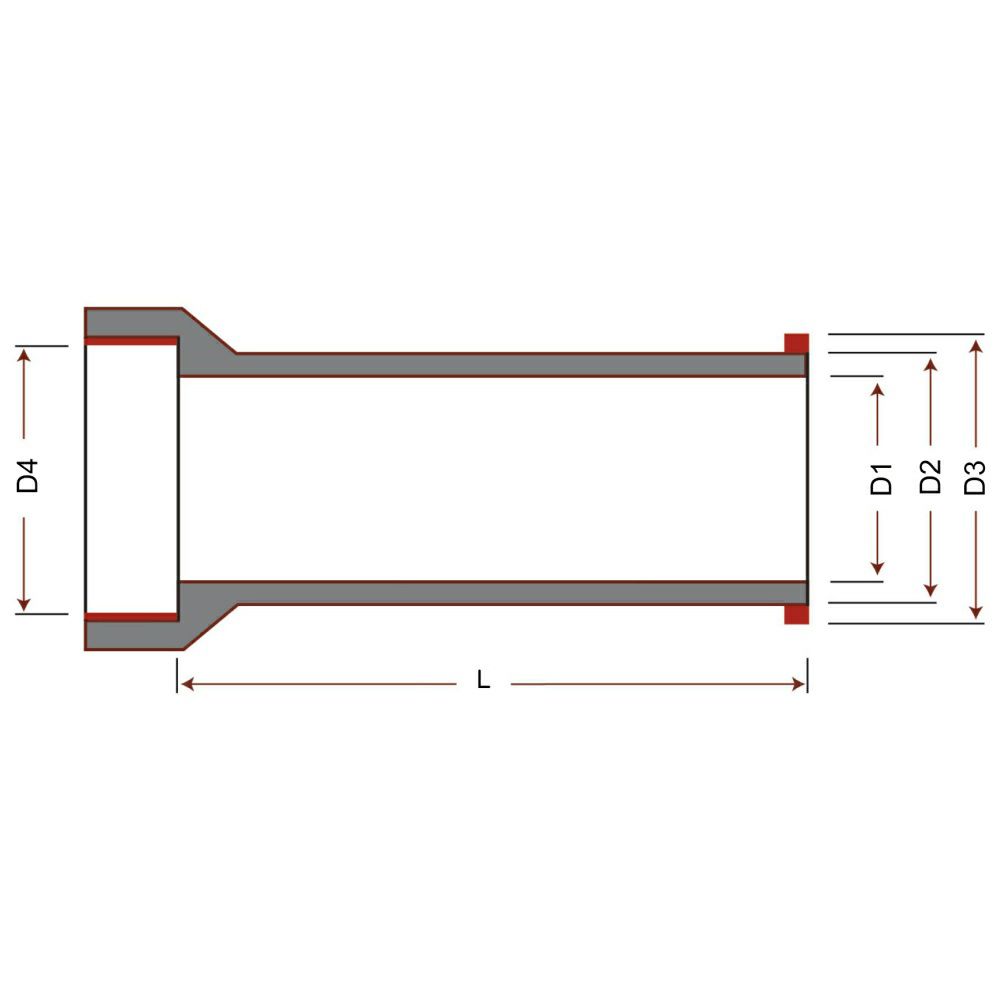

| D1 (mm) | 250 +/-6 |
| D2 (mm) | 299 +/-6 |
| Pipe wall | Solid wall |
| Certificate | BENOR |
| Certificate norm | EN 295-1 |
| Wall thickness (mm) | 25mm |
| Connection | Single socket |
| Joint | K |
| Weight (kg) | 132,5kg |
| D3 (mm) | 320.5 +/-0.5 |
| D4 (mm) | 317.5 +/-0.5 |
| Resistance crest pressure (kN/m) | 40 |
| System | C |
