GRES MOFBUIS BENOR DN300MM L=2.50M KL240 H
GRES MOFBUIS BENOR DN300MM L=2.50M KL240 H
| Code | GRES300250H |
| Code | GRES300250H |
| Brand | Euro Sweillem |
| Reference | 26308 |
| Unit | meter |
| Product model | Socket pipe stoneware |
| Availablility |
|
| Description |
Stoneware pipe, manufactured from glazed high-quality fired clay, supplied with sealing. Diameters from 100 to 200 mm are equipped with F-type jointing system, with a sealing ring in the socket. From diameter 200 mm onwards, the pipe is equipped with C-type jointing system, featuring a polyurethane seal in the socket and on the spigot end. |
| Documents |
Stoneware pipe, manufactured from glazed high-quality fired clay, supplied with sealing. Diameters from 100 to 200 mm are equipped with F-type jointing system, with a sealing ring in the socket. From diameter 200 mm onwards, the pipe is equipped with C-type jointing system, featuring a polyurethane seal in the socket and on the spigot end.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
Description
(In detail)Stoneware pipe, manufactured from glazed high-quality fired clay, supplied with sealing. Diameters from 100 to 200 mm are equipped with F-type jointing system, with a sealing ring in the socket. From diameter 200 mm onwards, the pipe is equipped with C-type jointing system, featuring a polyurethane seal in the socket and on the spigot end.
Application
Discharge of wastewater into the public sewer system.
Pros and cons
Technical specifications
(Everything you should know)| Product type | Socket pipe stoneware |
| Diameter Ø (mm) | 300mm |
| Length (m) | 2,5m |
| Ring stiffness | KL240 |
| Raw material | GRES |
| Colour | Brown |

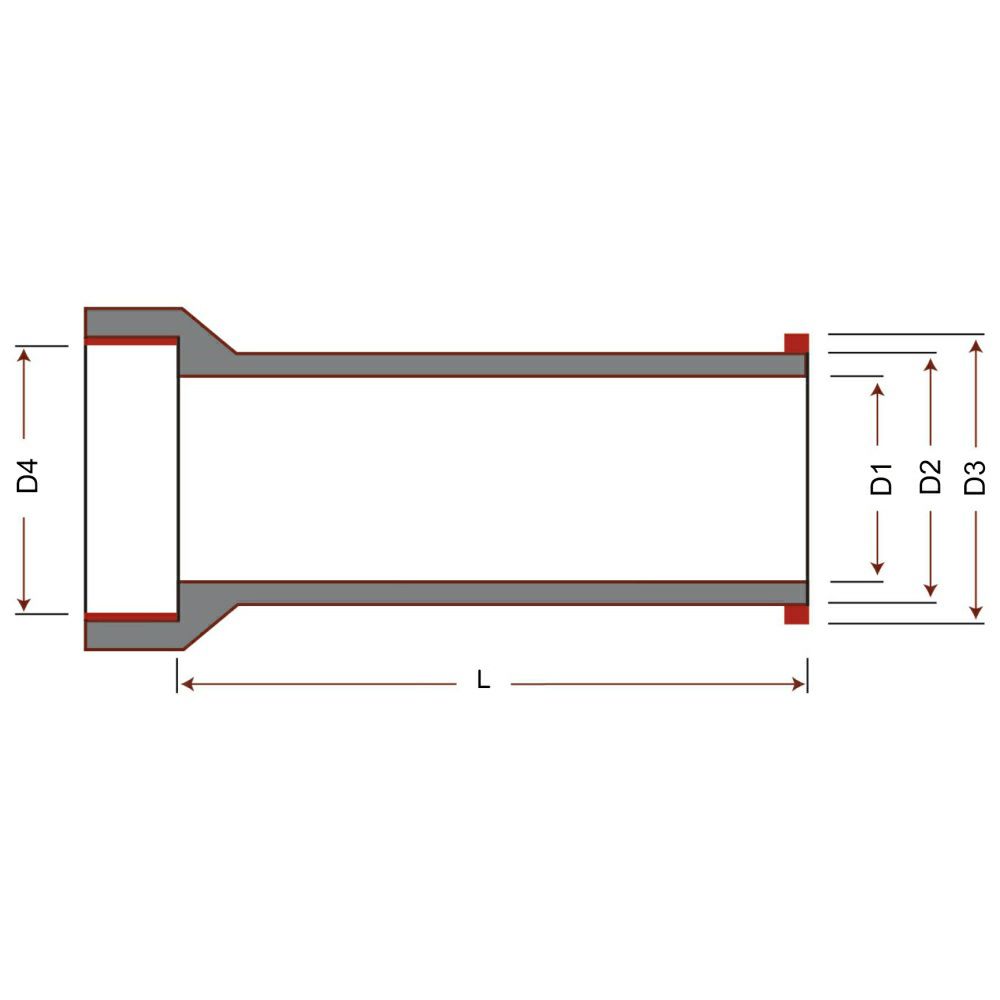

| D1 (mm) | 300 +/- 7 |
| D2 (mm) | 376 +/- 7 |
| Pipe wall | Solid wall |
| Certificate | BENOR |
| Certificate norm | EN 295-1 |
| Wall thickness (mm) | 38mm |
| Connection | Single socket |
| Joint | K |
| D3 (mm) | 401.9 +/- 0.5 |
| D4 (mm) | 398.5 +/- 0.5 |
| Resistance crest pressure (kN/m) | 72 |
| System | C |
| Weight (kg/m) | 69,75kg |
| Weight (kg) | 270kg |
| Product type | Socket pipe stoneware |
| Diameter Ø (mm) | 300mm |
| Length (m) | 2,5m |
| Ring stiffness | KL240 |
| Raw material | GRES |
| Colour | Brown |
| D1 (mm) | 300 +/- 7 |
| D2 (mm) | 376 +/- 7 |
| Pipe wall | Solid wall |
| Certificate | BENOR |
| Certificate norm | EN 295-1 |
| Wall thickness (mm) | 38mm |
| Connection | Single socket |
| Joint | K |
| D3 (mm) | 401.9 +/- 0.5 |
| D4 (mm) | 398.5 +/- 0.5 |
| Resistance crest pressure (kN/m) | 72 |
| System | C |
| Weight (kg/m) | 69,75kg |
| Weight (kg) | 270kg |
