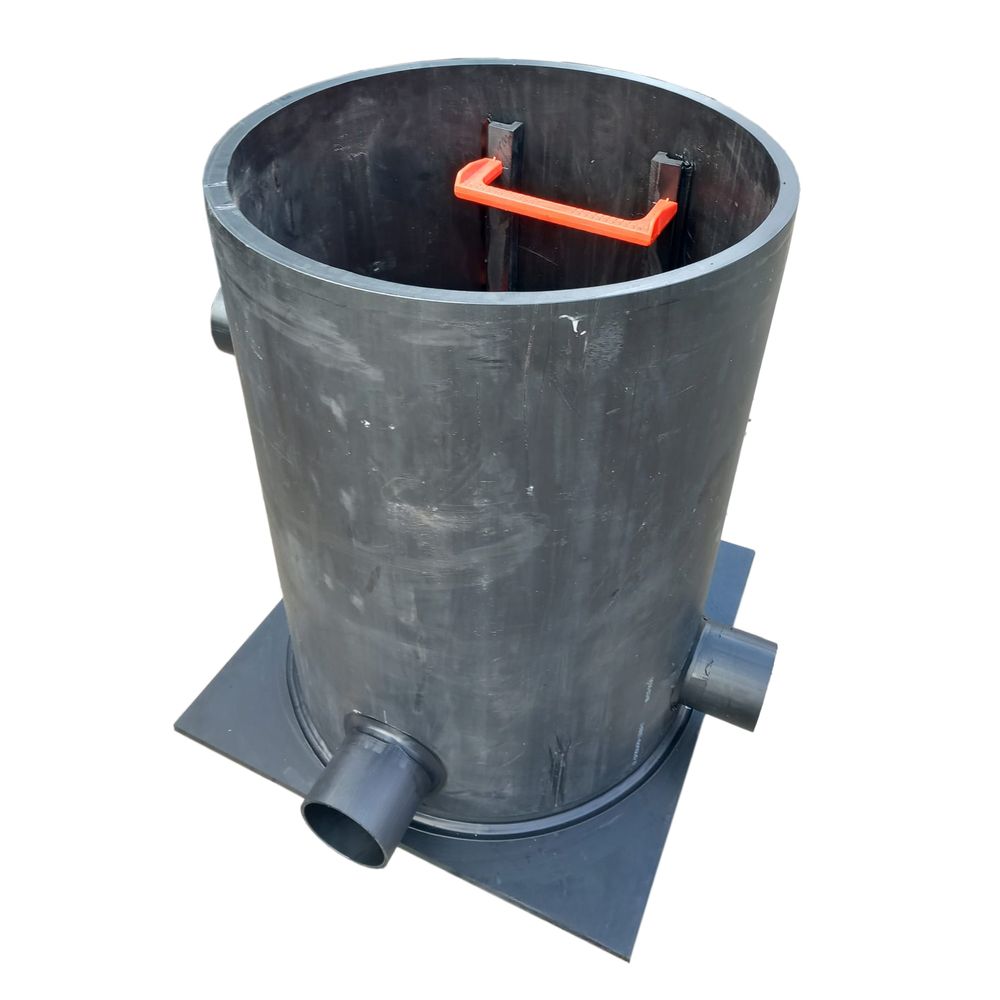

HDPE CHAMBER Ø800

HDPE CHAMBER Ø800

Code HDPEPUT800
Code HDPEPUT800
Brand Collinet
Reference 27379
Unit pieces
Product model HDPE inspection chamber
Availablility

Availablility

Description

The inspection chambers are manufactured from high-quality HDPE and are used as inspection, control and/or siphon chambers for buried sewer pipelines for the non-pressure drainage of rainwater and domestic wastewater. The chambers are BENOR-certified in accordance with NBN EN 13598-1 (chamber diameters from 250 to 400 mm) and NBN EN 13598-2 (chamber diameters from 500 to 1200 mm). The HDPE inspection chambers are suitable for the drainage of water with temperatures that may temporarily reach up to 95°C. The chambers are manufactured from HDPE pipes with diameters Ø250 mm, Ø315 mm, Ø400 mm, Ø500 mm, Ø630 mm, Ø710 mm, Ø800 mm, Ø1000 mm, Ø1200 mm or Ø1500 mm, onto which an HDPE base plate and HDPE pipe connections are welded.

Full description
Documents

Availablility

The inspection chambers are manufactured from high-quality HDPE and are used as inspection, control and/or siphon chambers for buried sewer pipelines for the non-pressure drainage of rainwater and domestic wastewater. The chambers are BENOR-certified in accordance with NBN EN 13598-1 (chamber diameters from 250 to 400 mm) and NBN EN 13598-2 (chamber diameters from 500 to 1200 mm). The HDPE inspection chambers are suitable for the drainage of water with temperatures that may temporarily reach up to 95°C. The chambers are manufactured from HDPE pipes with diameters Ø250 mm, Ø315 mm, Ø400 mm, Ø500 mm, Ø630 mm, Ø710 mm, Ø800 mm, Ø1000 mm, Ø1200 mm or Ø1500 mm, onto which an HDPE base plate and HDPE pipe connections are welded.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

The inspection chambers are manufactured from high-quality HDPE and are used as inspection, control and/or siphon chambers for buried sewer pipelines for the non-pressure drainage of rainwater and domestic wastewater. The chambers are BENOR-certified in accordance with NBN EN 13598-1 (chamber diameters from 250 to 400 mm) and NBN EN 13598-2 (chamber diameters from 500 to 1200 mm).

The HDPE inspection chambers are suitable for the drainage of water with temperatures that may temporarily reach up to 95°C. The chambers are manufactured from HDPE pipes with diameters Ø250 mm, Ø315 mm, Ø400 mm, Ø500 mm, Ø630 mm, Ø710 mm, Ø800 mm, Ø1000 mm, Ø1200 mm or Ø1500 mm, onto which an HDPE base plate and HDPE pipe connections are welded.

Technical specifications

(Everything you should know)
Product type HDPE inspection chamber
Raw material HDPE
Diameter manhole (mm) 800mm
Certificate norm EN 13598-2
Certificate BENOR
Bottom plate thickness (mm) 20mm
Wall thickness (mm) 24,9mm
Product type HDPE inspection chamber
Raw material HDPE
Diameter manhole (mm) 800mm
Certificate norm EN 13598-2
Certificate BENOR
Bottom plate thickness (mm) 20mm
Wall thickness (mm) 24,9mm
