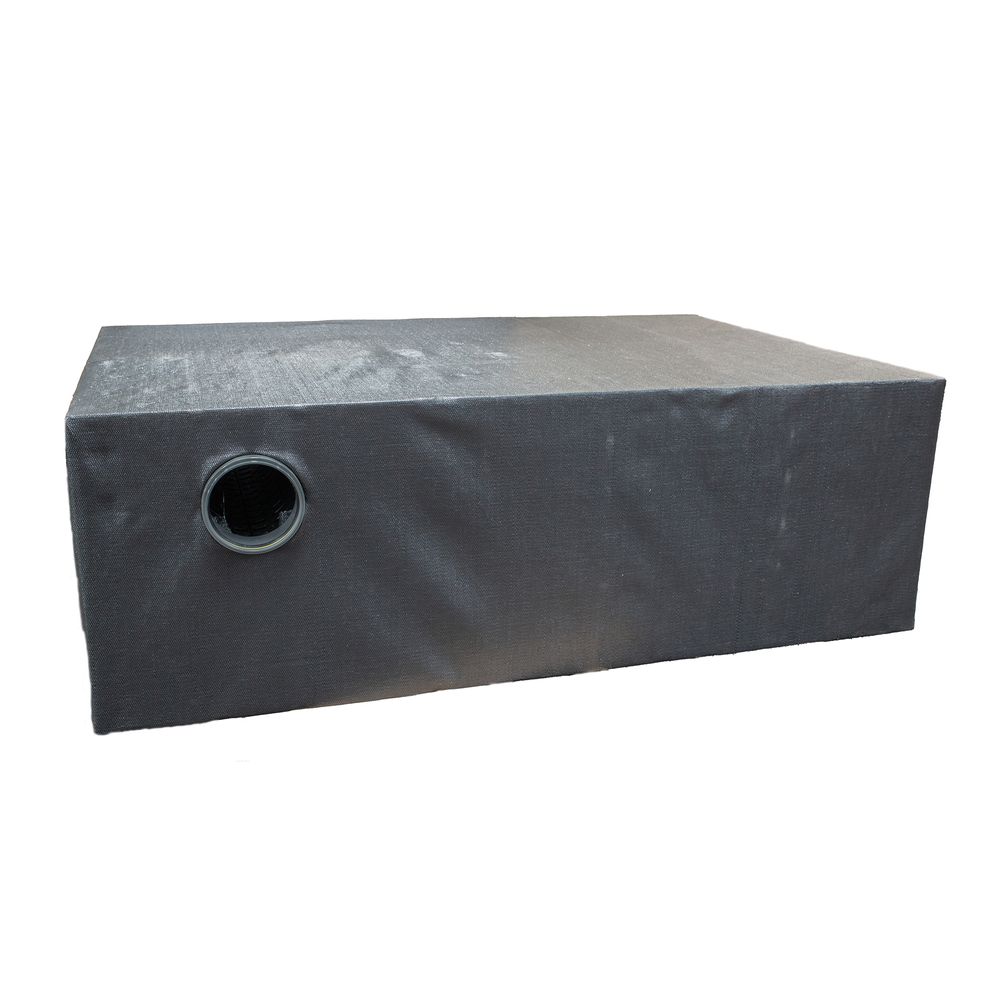

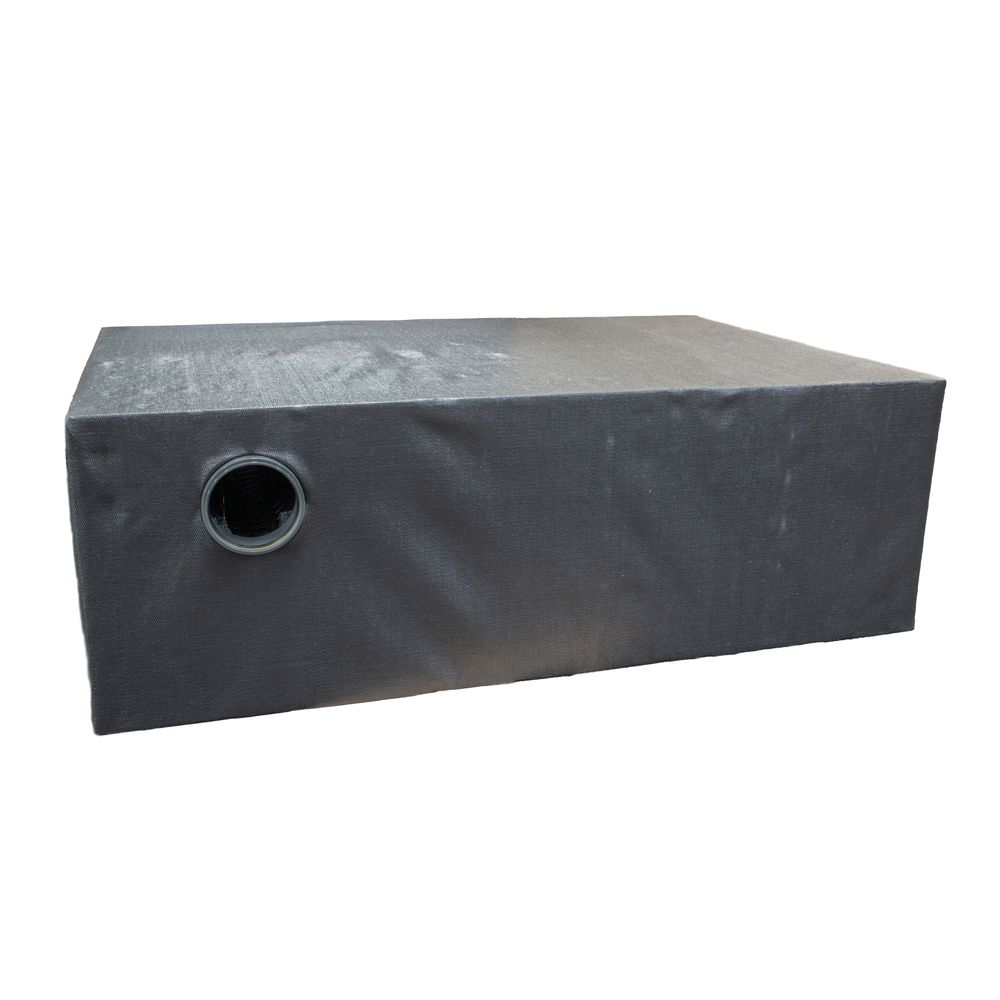

INFILTRATION UNIT + PP GEO 29/29 432L + 2XØ160MM

Code	VARIOIK432L120
Code	VARIOIK432L120
Reference	19131
Unit	pieces
Product model	Prepacked infiltration crate
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Hoogstraten Oostakker Tielt Zedelgem
Description	Infiltration crate supplied as a pre-packed, ready-to-install package. Wrapped in high-quality woven geotextile, type SG29/29, BENOR-certified. Pedestrian load from 15 cm cover; passenger vehicles from 50 cm cover. Maximum cover depth: 240 cm. Full description
Documents	Technical data sheet

Availablility

Infiltration crate supplied as a pre-packed, ready-to-install package. Wrapped in high-quality woven geotextile, type SG29/29, BENOR-certified. Pedestrian load from 15 cm cover; passenger vehicles from 50 cm cover. Maximum cover depth: 240 cm.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Infiltration crate supplied as a pre-packed, ready-to-install package.

Wrapped in high-quality woven geotextile, type SG29/29, BENOR-certified.
Pedestrian load from 15 cm cover; passenger vehicles from 50 cm cover.
Maximum cover depth: 240 cm.

Application

The pre-packed infiltration crate is specifically designed for compact applications. The system forms part of a sustainable water management solution and is intended for the storage, conveyance and infiltration of rainwater, whether originating from roofs, car parks, terraces, driveways or any other paved surface.

Pros and cons

(According to our consultants)

Three-dimensional water-permeable structure
BENOR-certified geotextile with no risk of clogging
Equipped with pre-assembled inlet and outlet Ø160 mm and inspection channel
Storage capacity: 95%
Permeability coefficient: > 63%

Technical specifications

(Everything you should know)

Product type	Prepacked infiltration crate
Length (mm)	1200mm
Height (mm)	600mm
Raw material	PP
Width (mm)	600mm
Inspectable	yes

Connection diameter (mm)	160mm
Suitable for	Row layout
Colour	Black
Net volume (L)	410l
Gross volume (L)	432l
Side infiltration area (m²)	2,16m²

Product type	Prepacked infiltration crate
Length (mm)	1200mm
Height (mm)	600mm
Raw material	PP
Width (mm)	600mm
Inspectable	yes
Connection diameter (mm)	160mm
Suitable for	Row layout
Colour	Black
Net volume (L)	410l
Gross volume (L)	432l
Side infiltration area (m²)	2,16m²
