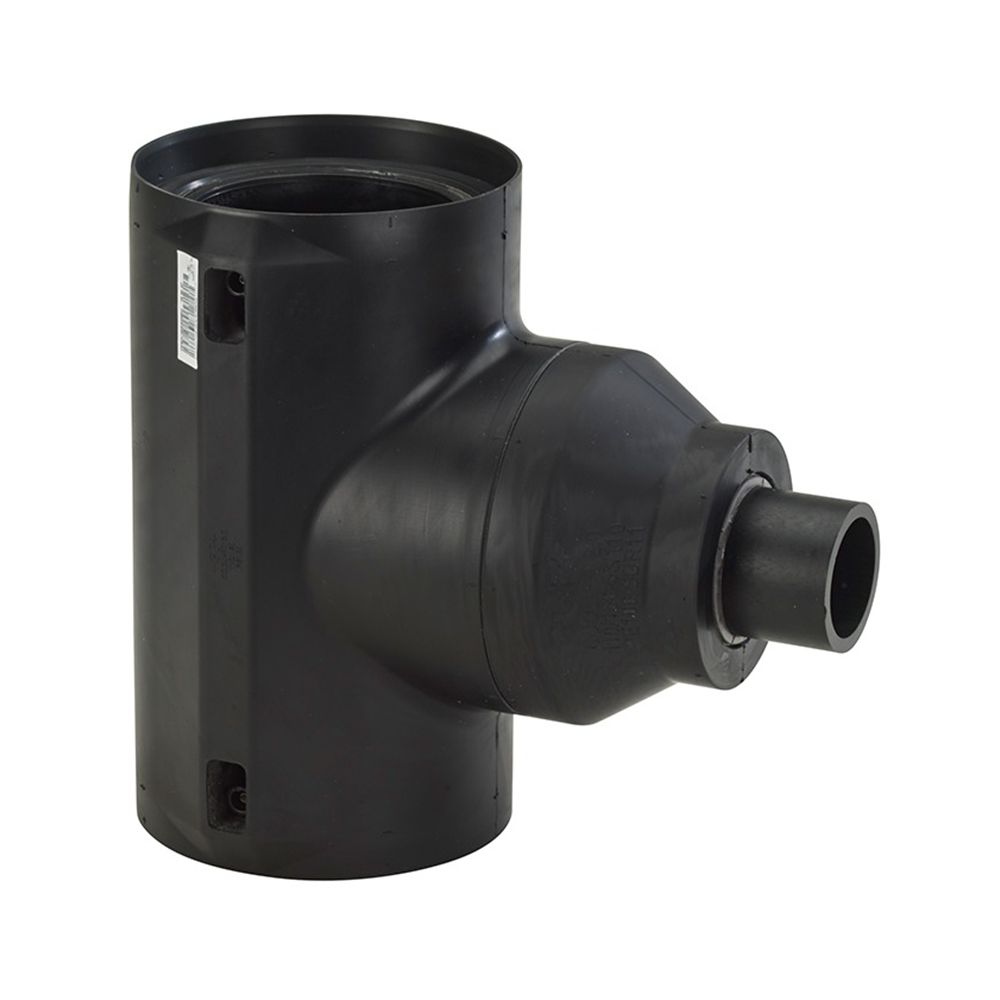

INSULATED TEE 90° PE100 SDR11 PN16 D75/D63
INSULATED TEE 90° PE100 SDR11 PN16 D75/D63
| Code | CFITT7563 |
| Code | CFITT7563 |
| Brand | Georg Fischer |
| Reference | 64883 |
| Unit | pieces |
| Product model | Electrofusion reducing T-piece PE pressure insulated |
| Collection | COOL-FIT |
| Availablility |
Availablility |
Availablility
Become a professional online customer
- ✓ Access to your net prices
- ✓Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Technical specifications
(Everything you should know)| Product type | Electrofusion reducing T-piece PE pressure insulated |
| Diameter Ø (mm) | 75mm |
| Diameter Ø 2 (mm) | 63mm |
| Outer diameter conduit (mm) | 125mm |
| Pressure (bar) | PN16 |
| Raw material | HDPE |
| SDR value | SDR11 |
| DN (mm) | 65mm |
| Insulation material | GF HE foam |
| Outer diameter 2 conduit (mm) | 110mm |
| Collection | COOL-FIT |
| Degrees (°) | 90° |
| Product type | Electrofusion reducing T-piece PE pressure insulated |
| Diameter Ø (mm) | 75mm |
| Diameter Ø 2 (mm) | 63mm |
| Outer diameter conduit (mm) | 125mm |
| Pressure (bar) | PN16 |
| Raw material | HDPE |
| SDR value | SDR11 |
| DN (mm) | 65mm |
| Insulation material | GF HE foam |
| Outer diameter 2 conduit (mm) | 110mm |
| Collection | COOL-FIT |
| Degrees (°) | 90° |
