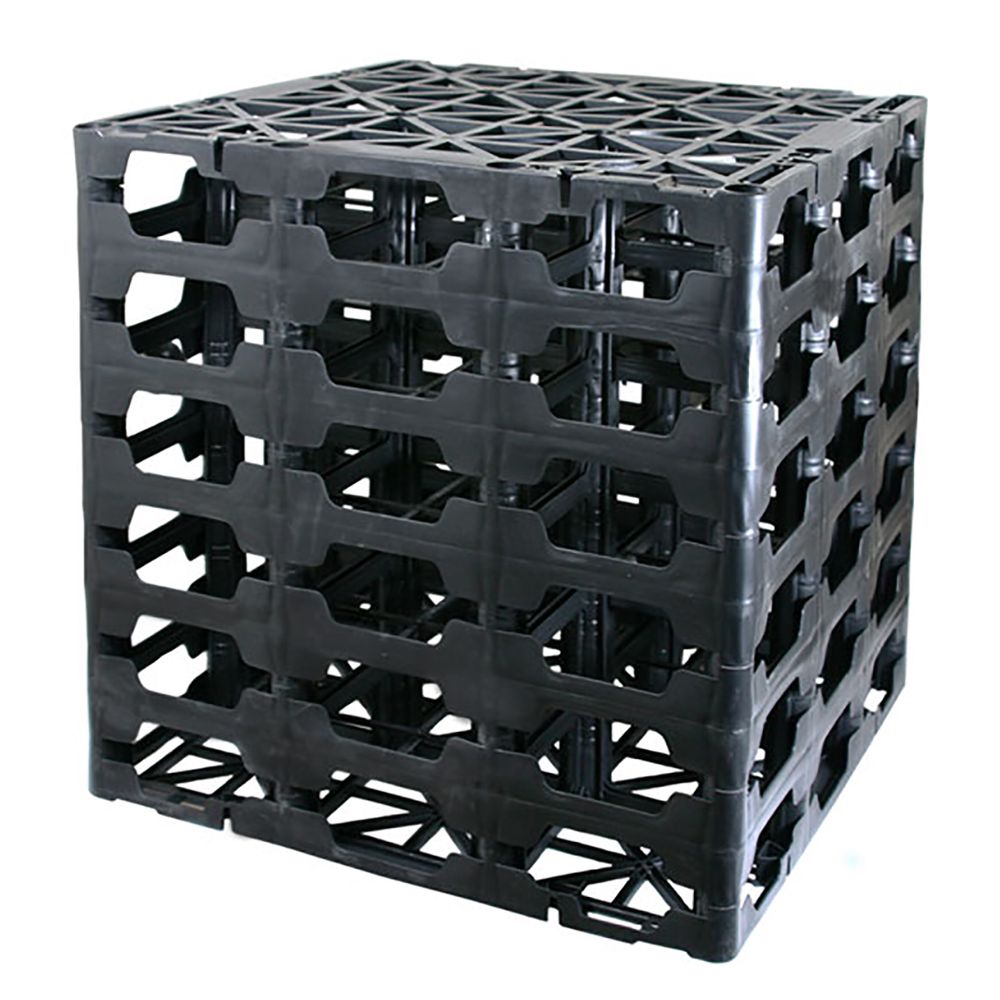

IT PLUS VARIOBOX 600X600X500MM SLW60

IT PLUS VARIOBOX 600X600X500MM SLW60

Code VARIOBOX50
Code VARIOBOX50
Brand Hewitech
Reference 15535
Unit pieces
Product model Infiltration crate
Availablility

Availablility

Description

Infiltration crate manufactured from thermoplastic material, consisting of a fully open plastic structure that can be assembled modularly, both horizontally and vertically, into a stable underground structure (basin) for the temporary storage and/or infiltration of water into the soil. The IT Plus Variobox is manufactured from PP (polypropylene). The IT Plus Variobox system is 100% compatible with the IT Plus Controlbox and the IT Plus Vivo Control, offering numerous configuration options for maintenance and inspection.

Full description
Documents

Availablility

Infiltration crate manufactured from thermoplastic material, consisting of a fully open plastic structure that can be assembled modularly, both horizontally and vertically, into a stable underground structure (basin) for the temporary storage and/or infiltration of water into the soil. The IT Plus Variobox is manufactured from PP (polypropylene). The IT Plus Variobox system is 100% compatible with the IT Plus Controlbox and the IT Plus Vivo Control, offering numerous configuration options for maintenance and inspection.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Accessories

(Selected for you)

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem

Product information

(Well informed)

Description

(In detail)

Infiltration crate manufactured from thermoplastic material, consisting of a fully open plastic structure that can be assembled modularly, both horizontally and vertically, into a stable underground structure (basin) for the temporary storage and/or infiltration of water into the soil.

  • The IT Plus Variobox is manufactured from PP (polypropylene).
  • The IT Plus Variobox system is 100% compatible with the IT Plus Controlbox and the IT Plus Vivo Control, offering numerous configuration options for maintenance and inspection.

Application

The IT Plus Variobox is specifically designed for use in large-scale applications. The system forms part of a sustainable water management solution and is intended for the storage, conveyance and infiltration of rainwater, whether originating from roofs, roads, car parks or any other paved surface.

Pros and cons

(According to our consultants)
  • Three-dimensional water-permeable structure
  • Extremely high load-bearing capacity with very low installation height
  • Connection and linking options on all sides
  • Storage capacity: 95%
  • Permeability coefficient: > 63%
  • 100% recyclable

Technical specifications

(Everything you should know)
Product type Infiltration crate
Length (mm) 600mm
Height (mm) 500mm
Raw material PP
Width (mm) 600mm
Connection options 110, 125, 160, 200, 315, 400, 500
Colour Black
Weight (kg) 9kg
Net volume (L) 171l
Gross volume (L) 180l
Product type Infiltration crate
Length (mm) 600mm
Height (mm) 500mm
Raw material PP
Width (mm) 600mm
Connection options 110, 125, 160, 200, 315, 400, 500
Colour Black
Weight (kg) 9kg
Net volume (L) 171l
Gross volume (L) 180l
