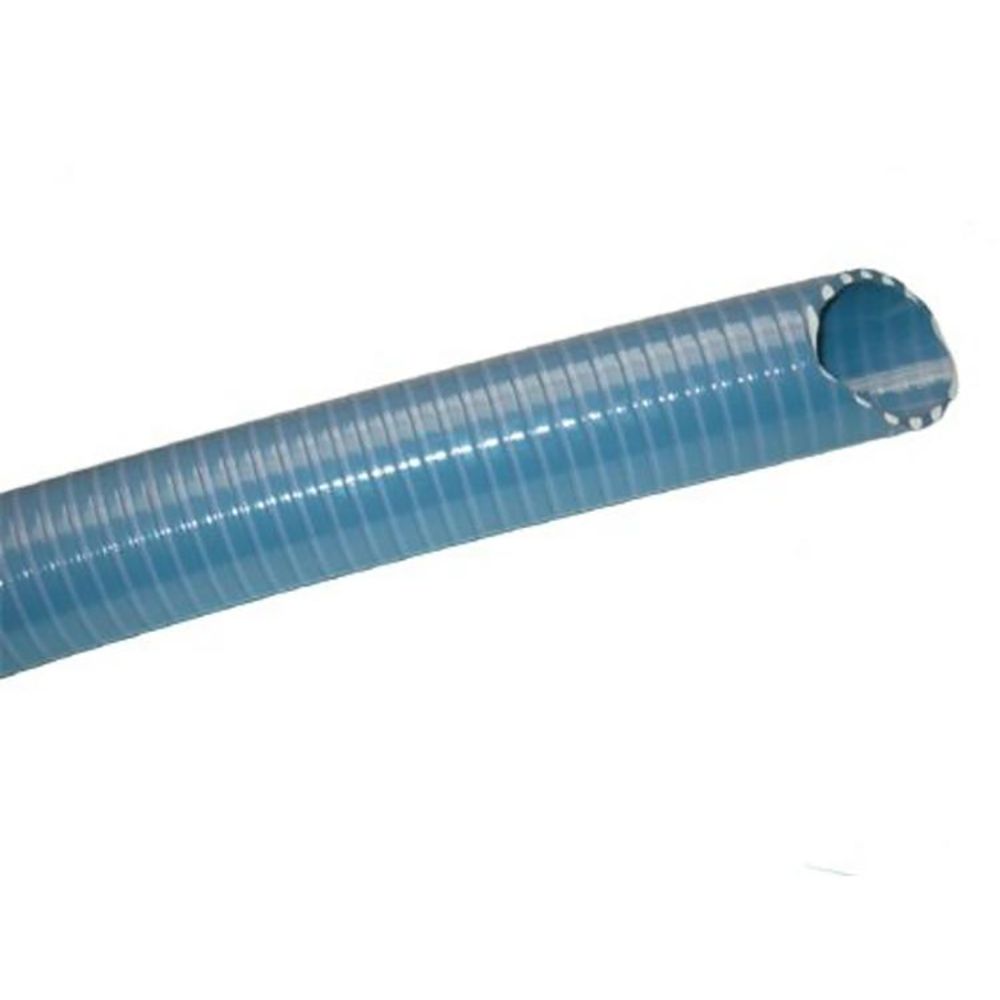

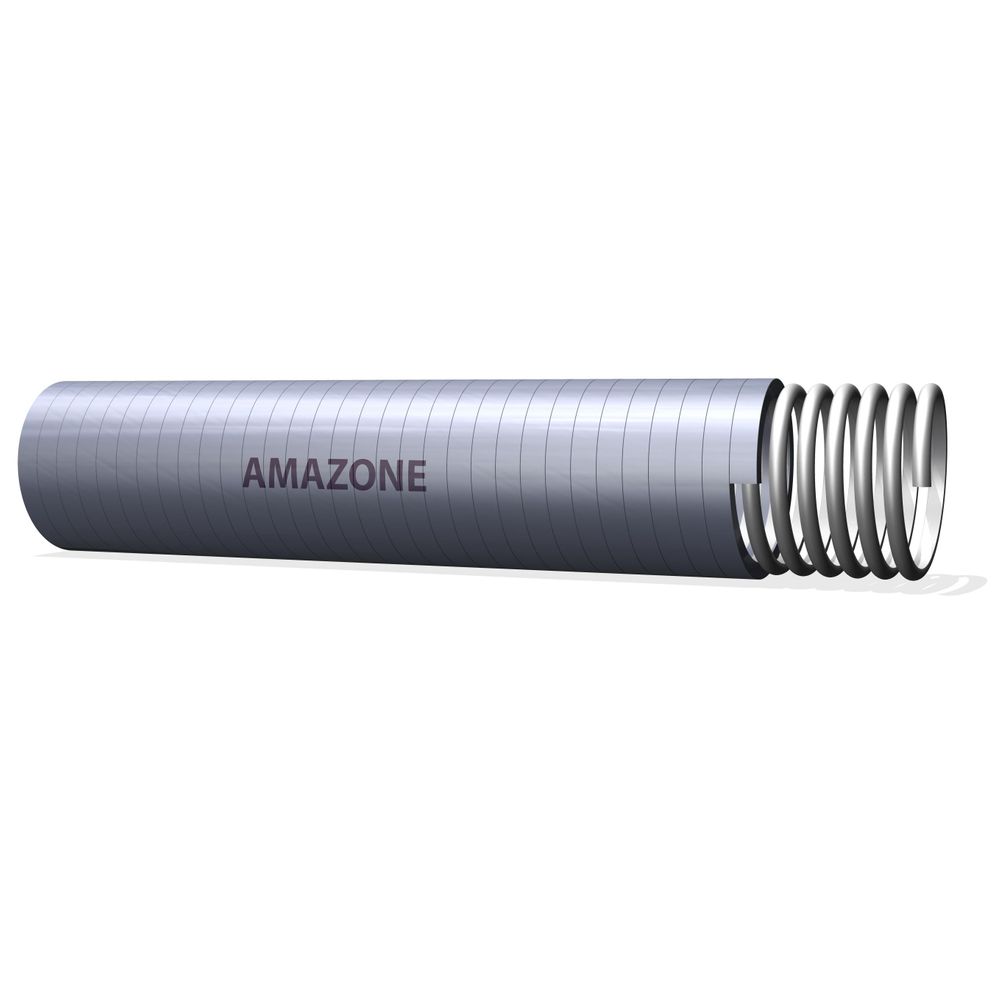

KANAFLEX AMAZONE GREY 76MM
KANAFLEX AMAZONE GREY 76MM
| Code | KAN076 |
| Code | KAN076 |
| Brand | Alfaflex |
| Reference | 5990 |
| Unit | meter |
| Product model | Suction pressure hose |
| Availablility |
Availablility |
| Description |
Flexible and super-elastic PVC hose reinforced with a rigid PVC spiral (anti-shock) Smooth inner wall Easy to handle Working pressure (WP) at 23 °C Safety factor at 20 °C: 3 times the WP Temperature range: -20 to 60 °C |
| Documents |
Availablility
Flexible and super-elastic PVC hose reinforced with a rigid PVC spiral (anti-shock) Smooth inner wall Easy to handle Working pressure (WP) at 23 °C Safety factor at 20 °C: 3 times the WP Temperature range: -20 to 60 °C
Become a professional online customer
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)Flexible and super-elastic PVC hose reinforced with a rigid PVC spiral (anti-shock)
- Smooth inner wall
- Easy to handle
- Working pressure (WP) at 23 °C
- Safety factor at 20 °C: 3 times the WP
- Temperature range: -20 to 60 °C
Application
- Suction and discharge hose for wastewater
- Slurry tanks / manure tankers
- Specially designed for vacuum and cleaning service vehicles
Technical specifications
(Everything you should know)| Product type | Suction pressure hose |
| Diameter Ø (mm) | 76mm |
| Ø ('') | 3 |
| Raw material | PVC |
| Colour | Grey |
| Weight (g/m) | 1720g |
| Bending radius (mm) | 375mm |
| Working pressure (bar) | 4,5Bar |
| Wall thickness (mm) | 5,5mm |
| Product type | Suction pressure hose |
| Diameter Ø (mm) | 76mm |
| Ø ('') | 3 |
| Raw material | PVC |
| Colour | Grey |
| Weight (g/m) | 1720g |
| Bending radius (mm) | 375mm |
| Working pressure (bar) | 4,5Bar |
| Wall thickness (mm) | 5,5mm |
