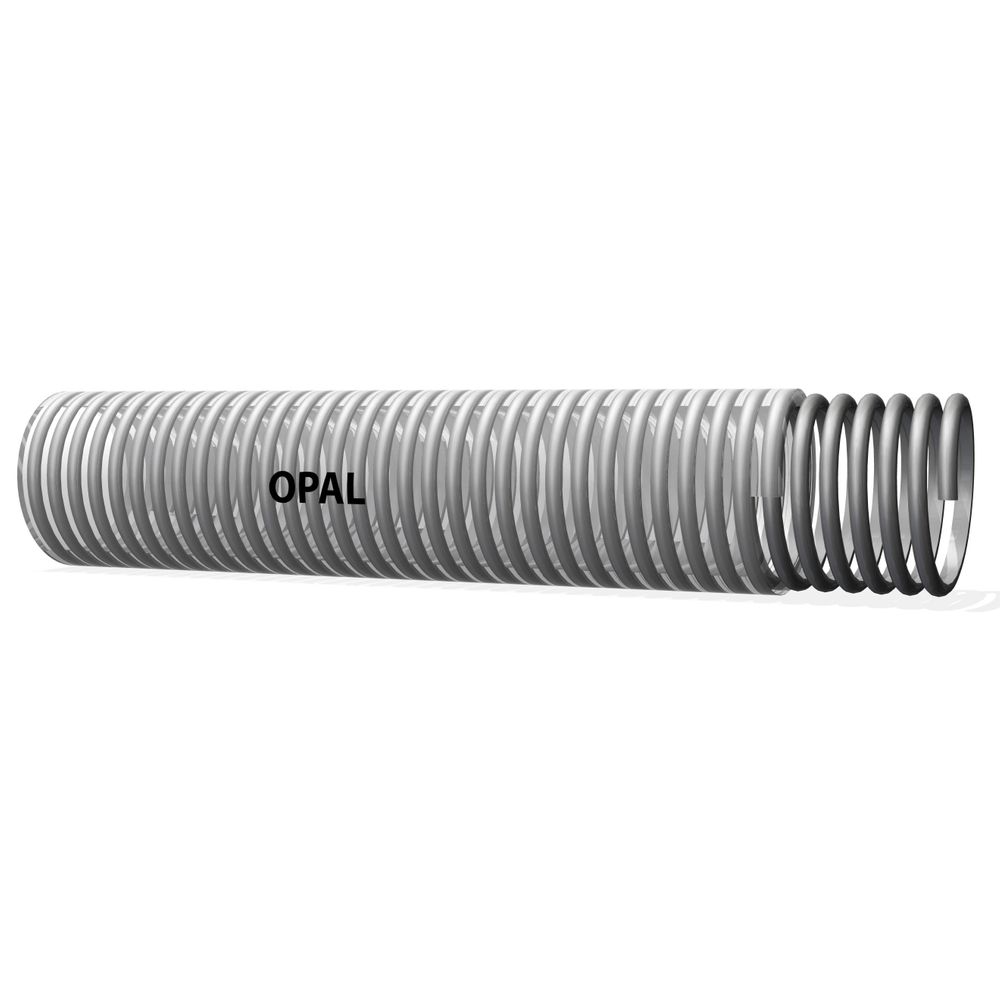

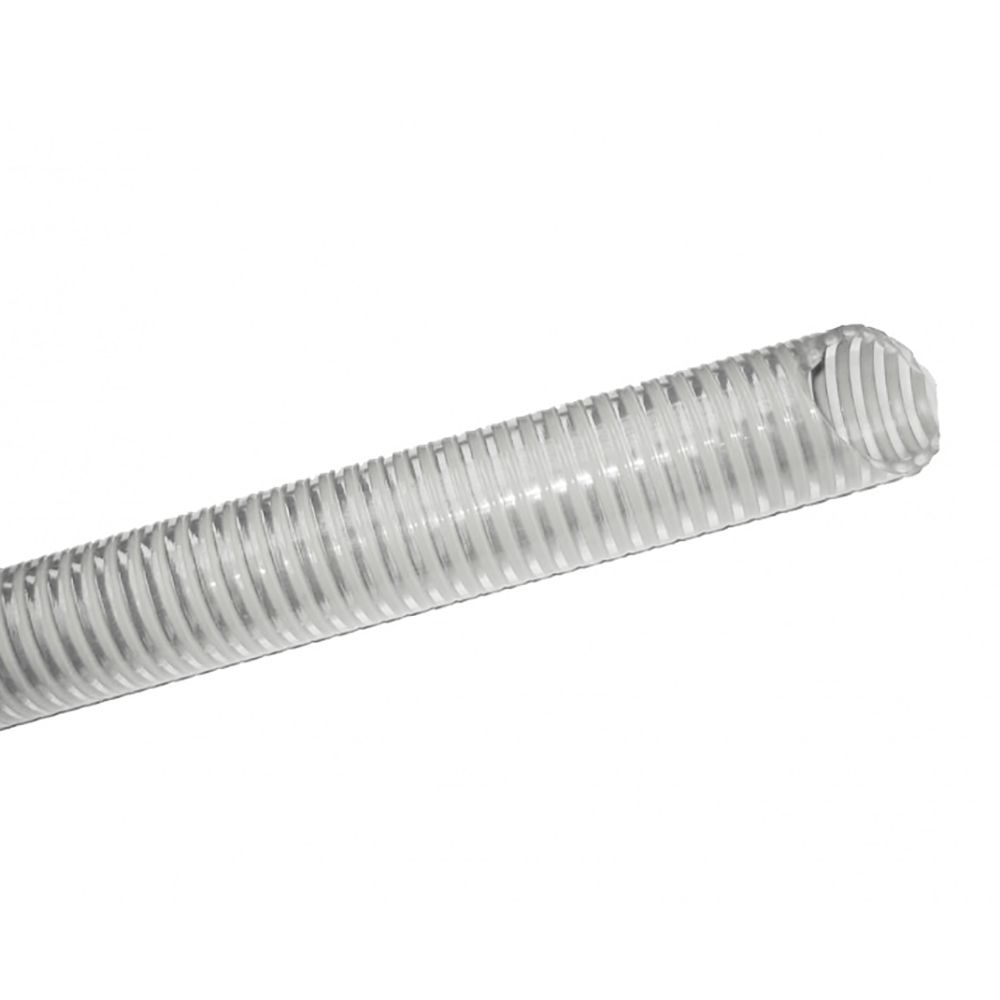

KANAFLEX OPAL CLEAR 20MM
KANAFLEX OPAL CLEAR 20MM
| Code | KDS20 |
| Code | KDS20 |
| Brand | Alfaflex |
| Reference | 5996 |
| Unit | meter |
| Product model | Suction pressure hose |
| Availablility |
Availablility
|
| Description |
Flexible PVC hose reinforced with a rigid PVC spiral (anti-shock) Smooth, transparent inner wall suitable for food contact, approved by the IANESCO laboratory (report PV No. 4818 dated 05/08/1994) Easy to handle thanks to its high flexibility, even at low temperatures Suitable for use at temperatures between -10 °C and +60 °C Working pressure (WP) at 23 °C Safety factor at 20 °C: 3 times the WP |
| Documents |
Availablility
-
Geel
-
Hoogstraten
-
Zedelgem
Flexible PVC hose reinforced with a rigid PVC spiral (anti-shock) Smooth, transparent inner wall suitable for food contact, approved by the IANESCO laboratory (report PV No. 4818 dated 05/08/1994) Easy to handle thanks to its high flexibility, even at low temperatures Suitable for use at temperatures between -10 °C and +60 °C Working pressure (WP) at 23 °C Safety factor at 20 °C: 3 times the WP
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)Flexible PVC hose reinforced with a rigid PVC spiral (anti-shock)
- Smooth, transparent inner wall suitable for food contact, approved by the IANESCO laboratory (report PV No. 4818 dated 05/08/1994)
- Easy to handle thanks to its high flexibility, even at low temperatures
- Suitable for use at temperatures between -10 °C and +60 °C
- Working pressure (WP) at 23 °C
- Safety factor at 20 °C: 3 times the WP
Technical specifications
(Everything you should know)| Product type | Suction pressure hose |
| Diameter Ø (mm) | 20mm |
| Ø ('') | 3/4 |
| Raw material | PVC |
| Colour | Transparent |
| Weight (g/m) | 250g |
| Bending radius (mm) | 100mm |
| Working pressure (bar) | 6Bar |
| Wall thickness (mm) | 2,9mm |
| Product type | Suction pressure hose |
| Diameter Ø (mm) | 20mm |
| Ø ('') | 3/4 |
| Raw material | PVC |
| Colour | Transparent |
| Weight (g/m) | 250g |
| Bending radius (mm) | 100mm |
| Working pressure (bar) | 6Bar |
| Wall thickness (mm) | 2,9mm |
