L&S COVER 80 LIGHT 700X 700MM H= 80MM

L&S COVER 80 LIGHT 700X 700MM H= 80MM

Code LS80LIGHT070
Code LS80LIGHT070
Brand LSDRAIN
Reference 17552
Unit pieces
Product model Clinker lid aluminium
Collection Light Line
Availablility

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem
Description

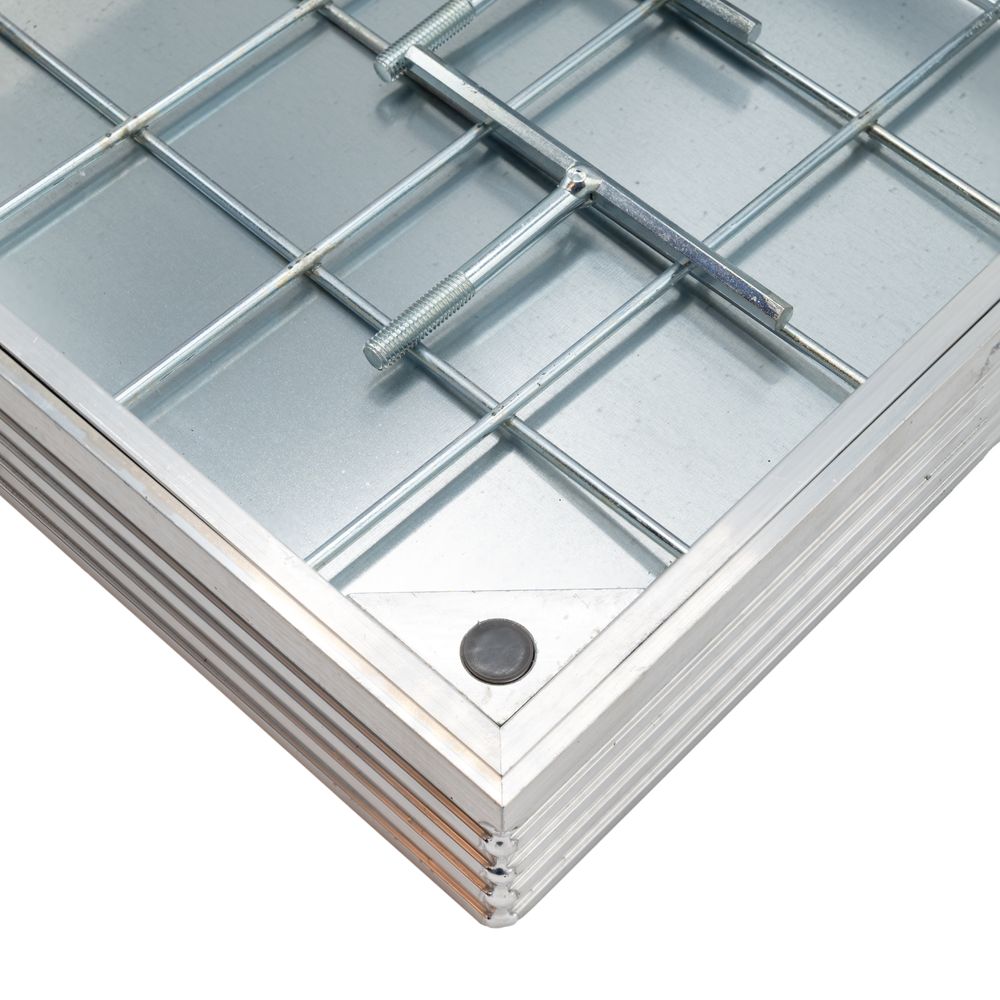

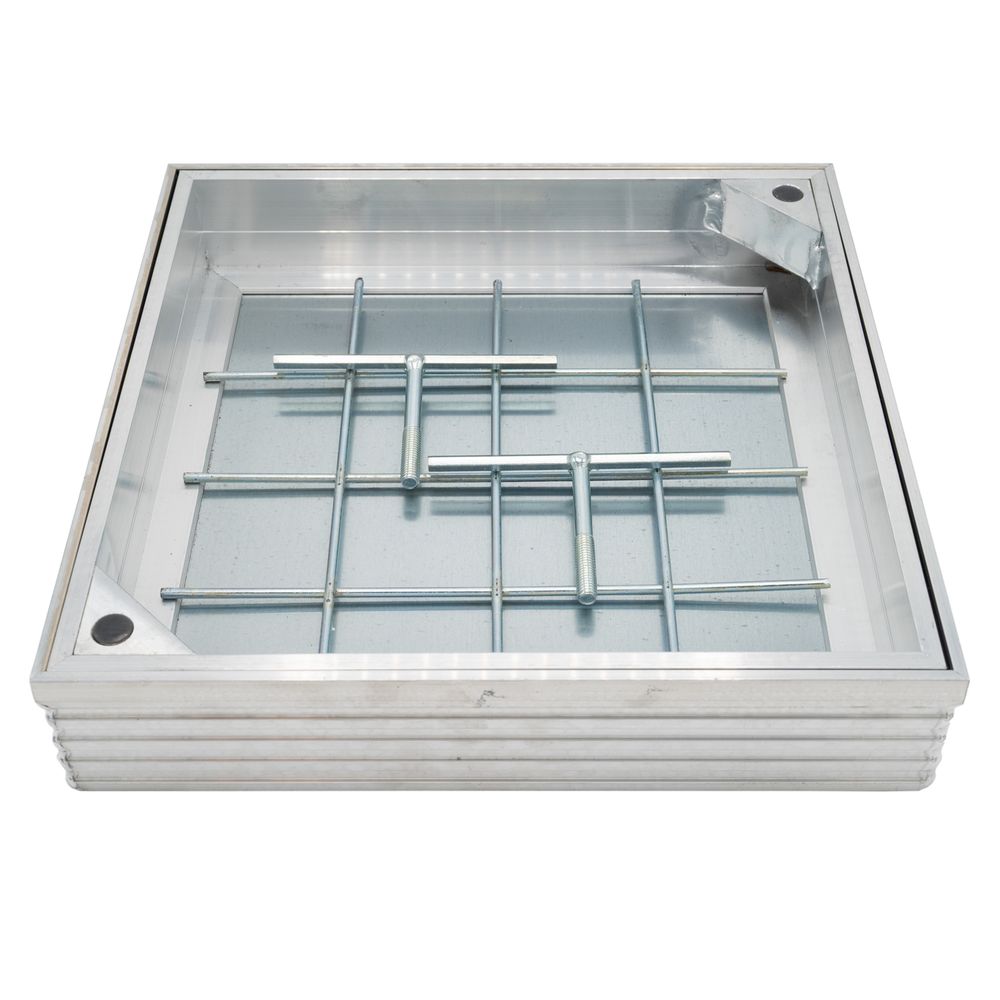

Tile and paving lid made of extruded aluminium. The lid is freely seated in the frame. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Two seals: one on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Documents

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem

Tile and paving lid made of extruded aluminium. The lid is freely seated in the frame. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Two seals: one on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

Tile and paving lid made of extruded aluminium.

  • The lid is freely seated in the frame.
  • Equipped with a reinforcement mesh.
  • 3 mm galvanised steel plate as base plate.
  • Two seals: one on the bottom and one on the side of the outer frame.
  • T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Pros and cons

(According to our consultants)

Easy to open using lifting keys.

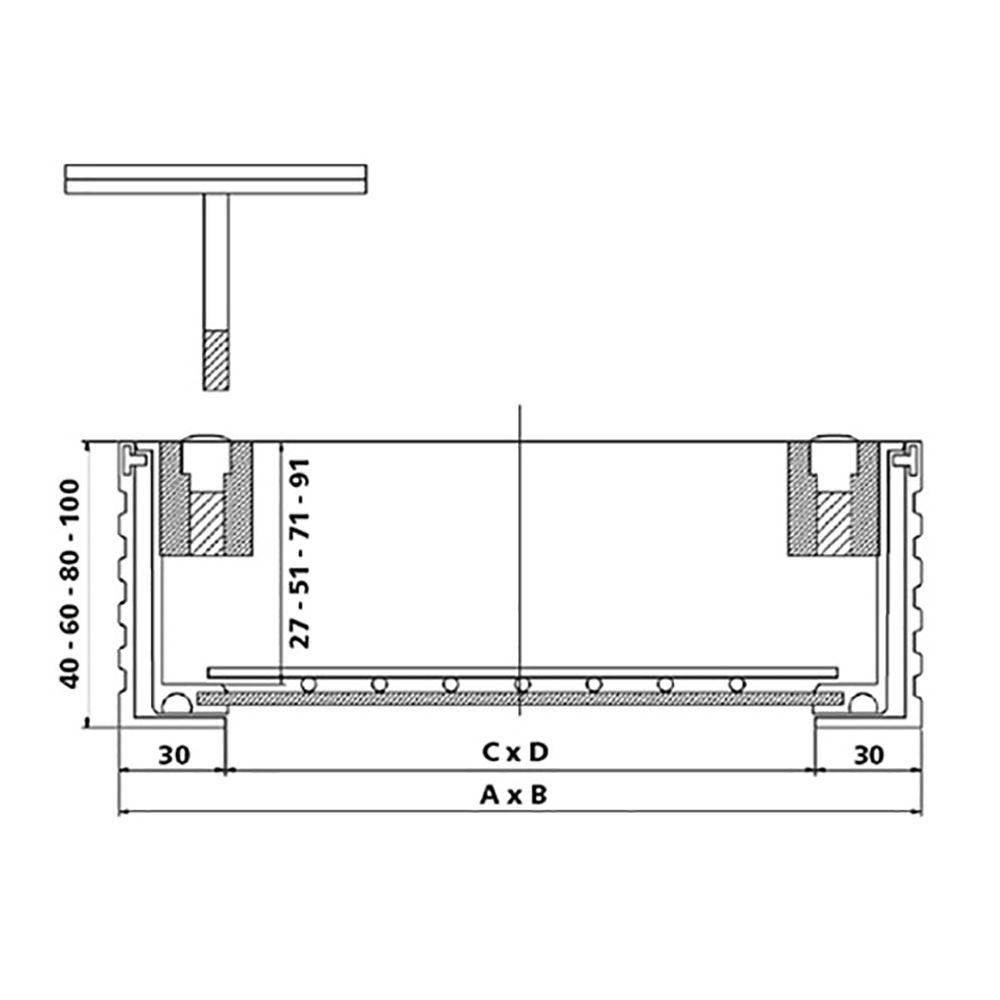

Technical specifications

(Everything you should know)
Product type Clinker lid aluminium
Collection Light Line
Width (mm) 700mm
Height (mm) 80mm
Load class A15
Shape Square
Raw material Aluminium
Opening length (mm) 640mm
Length (mm) 700mm
Opening width (mm) 640mm
Lid properties Clinker lid, Tile cover
Weight (kg) 17,36kg
Product type Clinker lid aluminium
Collection Light Line
Width (mm) 700mm
Height (mm) 80mm
Load class A15
Shape Square
Raw material Aluminium
Opening length (mm) 640mm
Length (mm) 700mm
Opening width (mm) 640mm
Lid properties Clinker lid, Tile cover
Weight (kg) 17,36kg
