L&S COVER 80 PRO 600X 600MM H=80MM

Code	LS80PRO060
Code	LS80PRO060
Brand	LSDRAIN
Reference	20
Unit	pieces
Product model	Clinker lid aluminium
Collection	Pro Line
Availablility	Availablility Oostakker
Description	Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing. Full description
Documents	Technical data sheet

Availablility

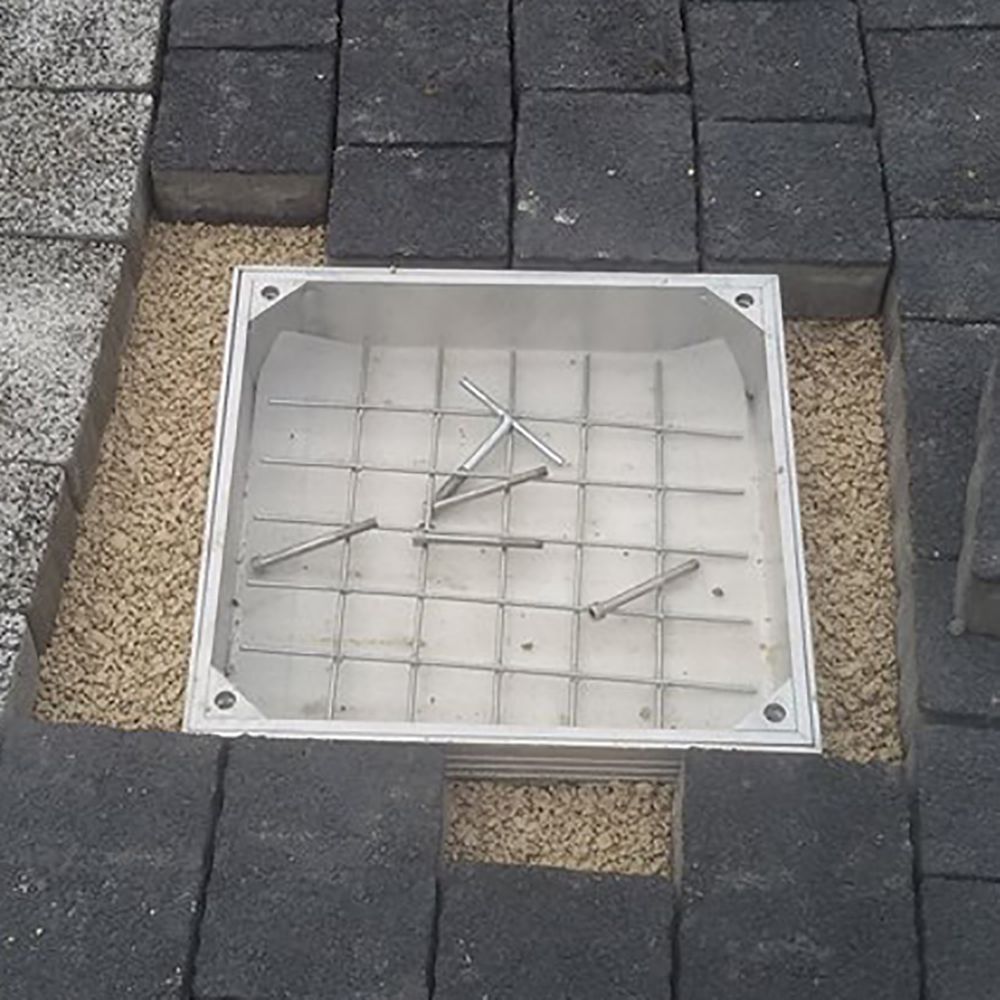

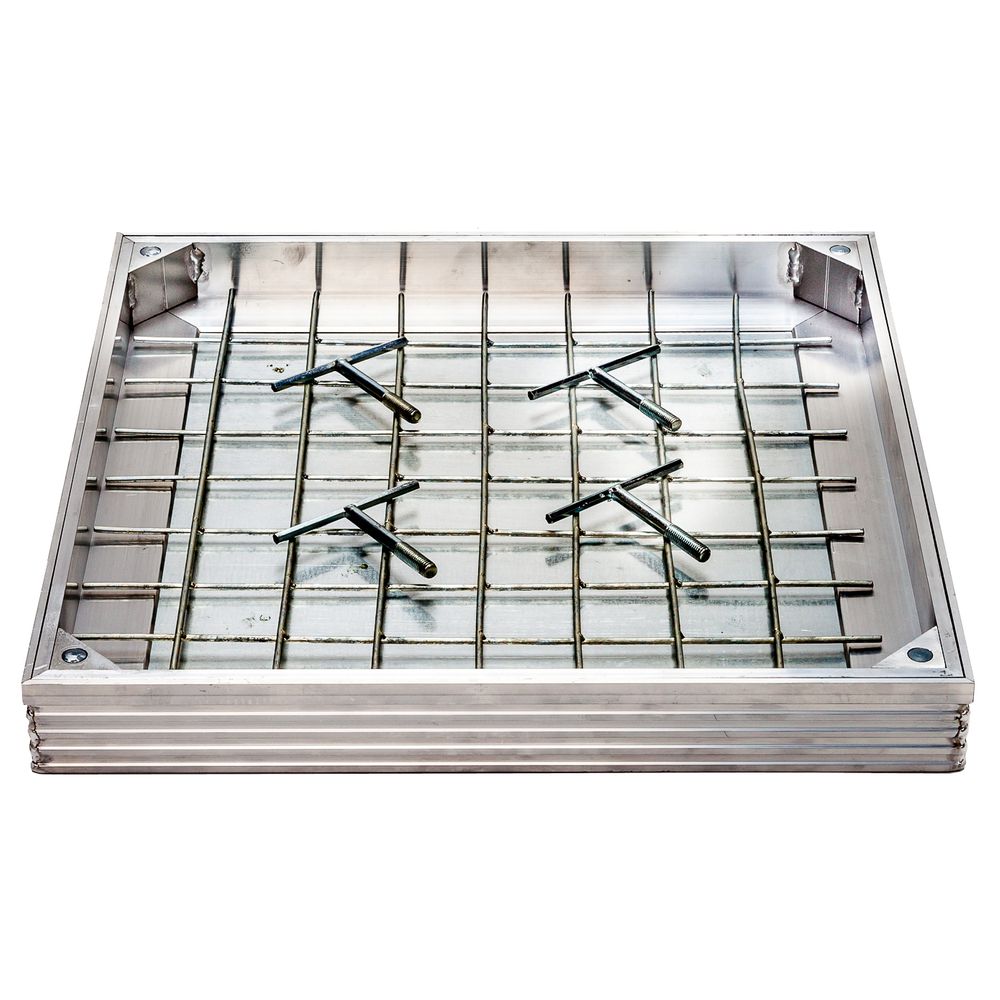

Tile and paving lid made of extruded aluminium. The lid is fixed with screws. Equipped with a reinforcement mesh. 3 mm galvanised steel plate as base plate. Three seals: two on the bottom and one on the side of the outer frame. T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓ Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Tile and paving lid made of extruded aluminium.

The lid is fixed with screws.
Equipped with a reinforcement mesh.
3 mm galvanised steel plate as base plate.
Three seals: two on the bottom and one on the side of the outer frame.
T-shaped rubber with triple function: prevents the ingress of dirt, provides a spring effect to reduce stress between the infill cover and the frame, and ensures additional odour sealing.

Technical specifications

(Everything you should know)

Product type	Clinker lid aluminium
Collection	Pro Line
Width (mm)	600mm
Height (mm)	80mm
Load class	A15
Shape	Square

Raw material	Aluminium
Opening length (mm)	510mm
Length (mm)	600mm
Opening width (mm)	510mm
Lid properties	Clinker lid, Tile cover
Weight (kg)	13,8kg

Product type	Clinker lid aluminium
Collection	Pro Line
Width (mm)	600mm
Height (mm)	80mm
Load class	A15
Shape	Square
Raw material	Aluminium
Opening length (mm)	510mm
Length (mm)	600mm
Opening width (mm)	510mm
Lid properties	Clinker lid, Tile cover
Weight (kg)	13,8kg
