PE PRESS SEWERPIPE 560X33.2 PE100RC PN10 SDR17 12M
PE PRESS SEWERPIPE 560X33.2 PE100RC PN10 SDR17 12M
| Code | PEDR560RCPN1012 |
| Code | PEDR560RCPN1012 |
| Reference | 46111 |
| Unit | meter |
| Product model | Drain pipe PE pressure |
| Availablility |
Availablility
|
| Description |

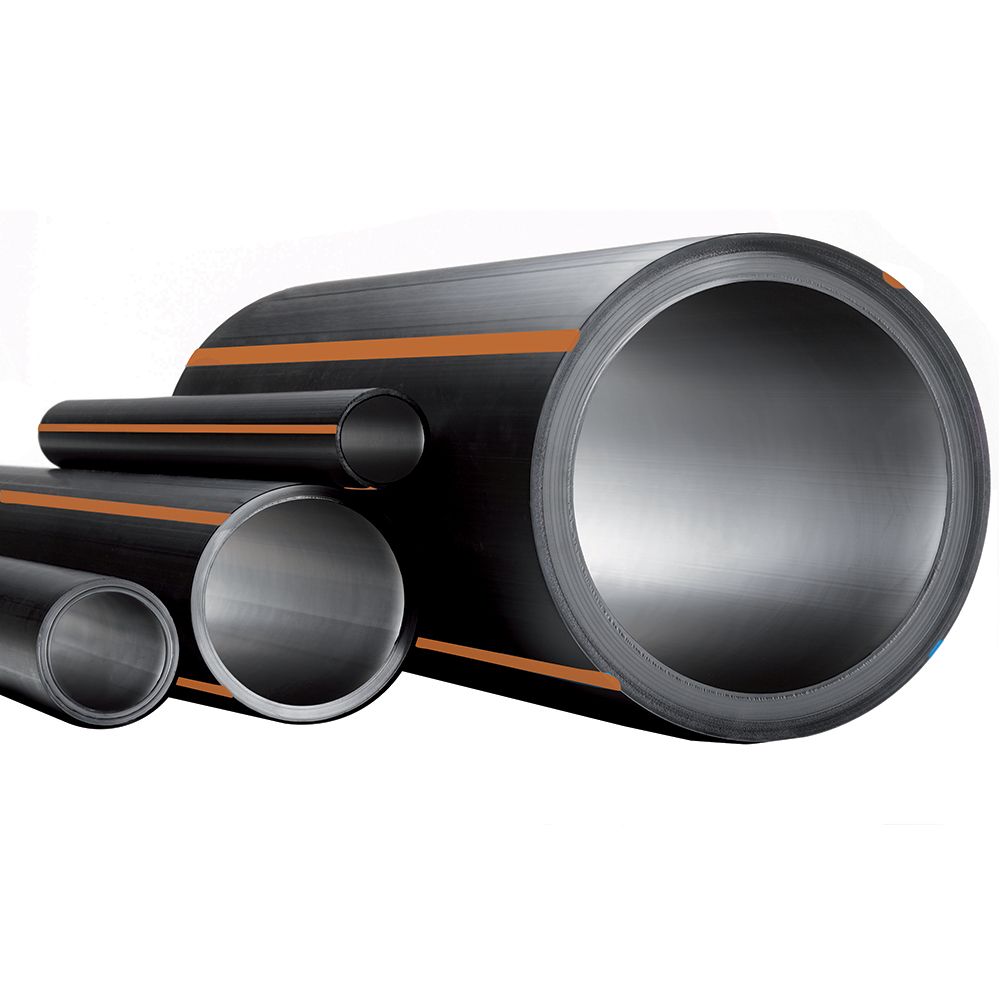

Black HDPE pressure pipe with reddish-brown stripe. BENOR approved in accordance with NBN EN 12201-2 Maximum allowable operating pressure for water at 20°C: 10 bar Available in rigid lengths or coils Pipes can be connected by butt welding or electrofusion Application: industrial and sewer pressure pipelines – Application code: “P” BENOR-certified pipe available on request up to Ø 1000 mm |
| Documents |
Availablility
-
Hamme
Black HDPE pressure pipe with reddish-brown stripe. BENOR approved in accordance with NBN EN 12201-2 Maximum allowable operating pressure for water at 20°C: 10 bar Available in rigid lengths or coils Pipes can be connected by butt welding or electrofusion Application: industrial and sewer pressure pipelines – Application code: “P” BENOR-certified pipe available on request up to Ø 1000 mm
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)Black HDPE pressure pipe with reddish-brown stripe.
- BENOR approved in accordance with NBN EN 12201-2
- Maximum allowable operating pressure for water at 20°C: 10 bar
- Available in rigid lengths or coils
- Pipes can be connected by butt welding or electrofusion
- Application: industrial and sewer pressure pipelines – Application code: “P”
- BENOR-certified pipe available on request up to Ø 1000 mm
Pros and cons
(According to our consultants)Technical specifications
(Everything you should know)| Product type | Drain pipe PE pressure |
| Diameter Ø (mm) | 560mm |
| Length (m) | 12m |
| SDR value | SDR17 |
| Raw material | HDPE PE100 RC |
| Pressure (bar) | PN10 |
| Certificate | BENOR |
| Certificate norm | EN 12201-2 |
| Wall thickness (mm) | 33,2mm |
| Colour | Black with red-brown line |
| Product type | Drain pipe PE pressure |
| Diameter Ø (mm) | 560mm |
| Length (m) | 12m |
| SDR value | SDR17 |
| Raw material | HDPE PE100 RC |
| Pressure (bar) | PN10 |
| Certificate | BENOR |
| Certificate norm | EN 12201-2 |
| Wall thickness (mm) | 33,2mm |
| Colour | Black with red-brown line |
