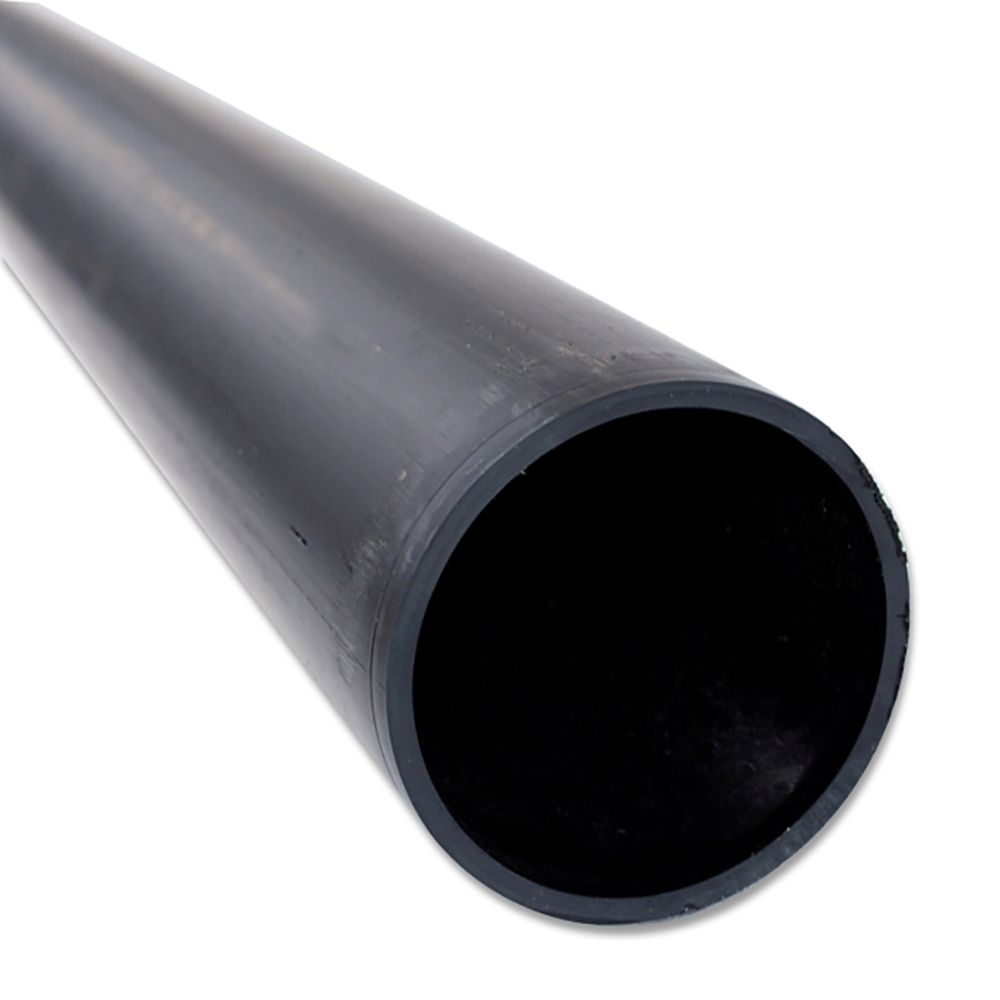

PE SEWAGE PIPE BENOR 160X6.2MM PN4 S12.5 5M

Code	L1001601
Code	L1001601
Reference	2389
Unit	meter
Product model	Drain pipe PE
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Oostakker Tielt Zedelgem
Description	HDPE drainage pipe for gravity (non-pressurised) discharge of rainwater and domestic wastewater. BENOR certified in accordance with NBN EN 1519 Low thermal conductivity: little to no condensation formation Factory tempered Density: 0.954 g/cm³ Tensile strength: 85 N/mm² Coefficient of thermal expansion (between 20°C and 90°C): 0.20 mm/m·°C Full description
Documents	Technical data sheet Certificate

Availablility

HDPE drainage pipe for gravity (non-pressurised) discharge of rainwater and domestic wastewater. BENOR certified in accordance with NBN EN 1519 Low thermal conductivity: little to no condensation formation Factory tempered Density: 0.954 g/cm³ Tensile strength: 85 N/mm² Coefficient of thermal expansion (between 20°C and 90°C): 0.20 mm/m·°C

Full description

Technical data sheet

Certificate

Become a professional online customer

✓ Access to your net prices
✓Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

HDPE drainage pipe for gravity (non-pressurised) discharge of rainwater and domestic wastewater.

BENOR certified in accordance with NBN EN 1519
Low thermal conductivity: little to no condensation formation
Factory tempered
Density: 0.954 g/cm³
Tensile strength: 85 N/mm²
Coefficient of thermal expansion (between 20°C and 90°C): 0.20 mm/m·°C

Application

These pipes are suitable for the discharge of wastewater with temperatures of up to 95°C, without any limitation in volume or duration.

Technical specifications

(Everything you should know)

Product type	Drain pipe PE
Diameter Ø (mm)	160mm
Pressure (bar)	PN4
Length (m)	5m
Raw material	HDPE
Colour	Black

Pipe wall	Solid wall
SDR value	SDR26
Certificate	BENOR
Certificate norm	EN 1519
Wall thickness (mm)	6,2mm

Product type	Drain pipe PE
Diameter Ø (mm)	160mm
Pressure (bar)	PN4
Length (m)	5m
Raw material	HDPE
Colour	Black
Pipe wall	Solid wall
SDR value	SDR26
Certificate	BENOR
Certificate norm	EN 1519
Wall thickness (mm)	6,2mm
