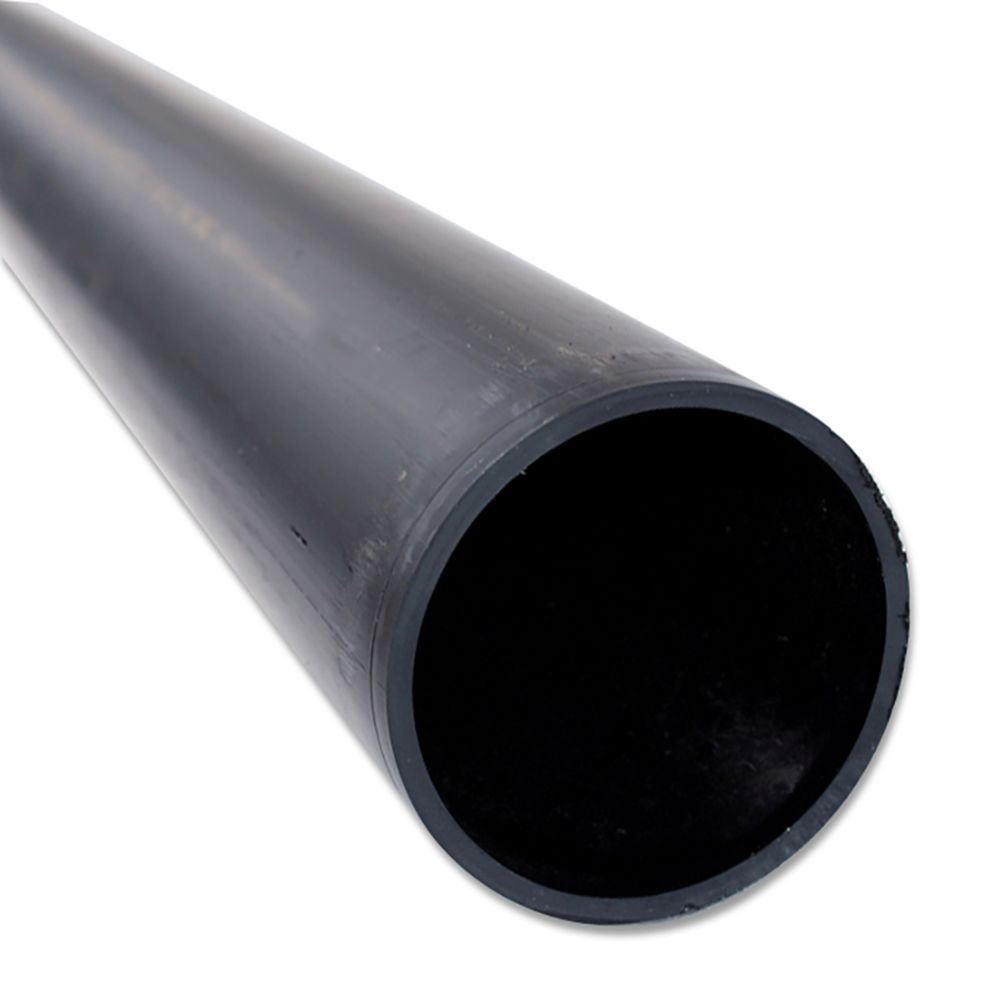

PE SEWAGE PIPE EN12666-1 1000X30.6MM S16 6M

Availablility

Technical specifications

(Everything you should know)

Density norm	EN ISO 1183
Melt Flow Rate - 190°C / 5 kg	0.2 : 1.4 g/10 min
Oxidation induction time at 200 °C	≥ 20'
Melt flow rate - 190°C / 5 kg rating	EN ISO 1133
Oxidation induction time at 200 °C rating	EN 728
Resistance to hydraulic pressure at 80 °C / σ 2.8 MPa	≥ 1000 h
Resistance to hydraulic pressure at 80 °C / σ 2.8 Mpa norm	EN 921
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa	≥ 165 h
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa norm	EN 921
Ring stiffness deflection at 3% / 23 ±2 °C	≥ 2 kN/m²
Ring stiffness deviation 3 % / 23 ±2 °C rating	EN ISO 9969

Product type	Drain pipe PE
Diameter Ø (mm)	1000mm
Pressure (bar)	PN3.2
Length (m)	6m
Raw material	HDPE
Colour	Black
Pipe wall	Solid wall
SDR value	S16
Certificate norm	EN 12666-1
Wall thickness (mm)	30,6mm
Ring stiffness	SN2
Density (kg/m³)	≥ 930 km/m³
Density norm	EN ISO 1183
Melt Flow Rate - 190°C / 5 kg	0.2 : 1.4 g/10 min
Oxidation induction time at 200 °C	≥ 20'
Melt flow rate - 190°C / 5 kg rating	EN ISO 1133
Oxidation induction time at 200 °C rating	EN 728
Resistance to hydraulic pressure at 80 °C / σ 2.8 MPa	≥ 1000 h
Resistance to hydraulic pressure at 80 °C / σ 2.8 Mpa norm	EN 921
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa	≥ 165 h
Resistance to hydraulic pressure at 80 °C / σ 4.0 Mpa norm	EN 921
Ring stiffness deflection at 3% / 23 ±2 °C	≥ 2 kN/m²
Ring stiffness deviation 3 % / 23 ±2 °C rating	EN ISO 9969
