PP BASE 1000MM SOLID BENOR 2X315MM 15° 48CM
PP BASE 1000MM SOLID BENOR 2X315MM 15° 48CM
| Code | PPBOD1000V3115 |
| Code | PPBOD1000V3115 |
| Reference | 18226 |
| Unit | pieces |
| Product model | PP Ribwall Pit Bottom |
| Availablility |
Availablility
|
| Description |

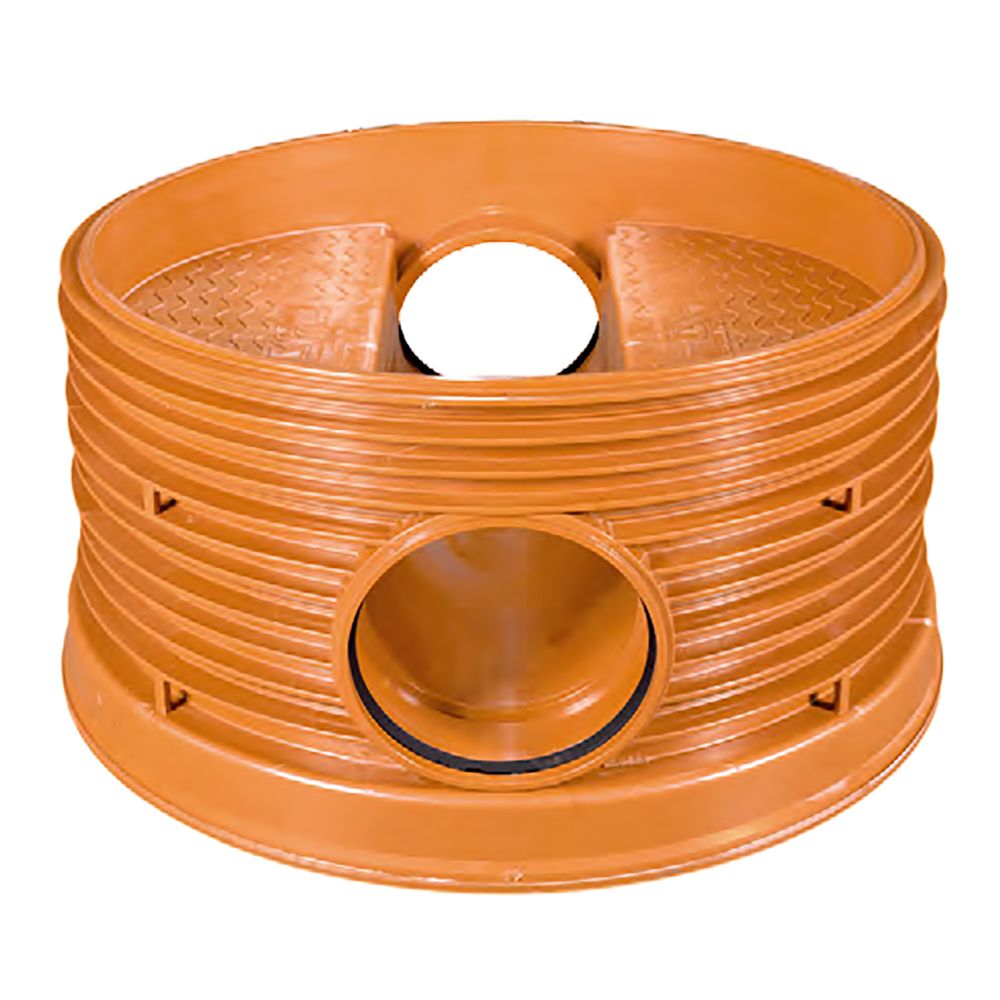

Profiled manhole base composed of an injection-moulded manhole body, equipped with reinforcing ribs, steps and a flow profile adapted to the outlet diameter. Suitable for connection to standard pipes of type PVC-U, PP and PE. The connections are fitted with fixed lip seals. The manhole body is equipped at the top with a riser collar with lip seal for watertight connection of a ribbed PP DN1000 riser pipe. Maximum installation depth: 6 m Permissible groundwater level: 5 m Traffic load: SLW60 |
| Documents |
Availablility
-
Zedelgem
Profiled manhole base composed of an injection-moulded manhole body, equipped with reinforcing ribs, steps and a flow profile adapted to the outlet diameter. Suitable for connection to standard pipes of type PVC-U, PP and PE. The connections are fitted with fixed lip seals. The manhole body is equipped at the top with a riser collar with lip seal for watertight connection of a ribbed PP DN1000 riser pipe. Maximum installation depth: 6 m Permissible groundwater level: 5 m Traffic load: SLW60
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Accessories
(Selected for you)
Product information
(Well informed)Description
(In detail)Profiled manhole base composed of an injection-moulded manhole body, equipped with reinforcing ribs, steps and a flow profile adapted to the outlet diameter. Suitable for connection to standard pipes of type PVC-U, PP and PE. The connections are fitted with fixed lip seals. The manhole body is equipped at the top with a riser collar with lip seal for watertight connection of a ribbed PP DN1000 riser pipe.
- Maximum installation depth: 6 m
- Permissible groundwater level: 5 m
- Traffic load: SLW60
Pros and cons
(According to our consultants)Technical specifications

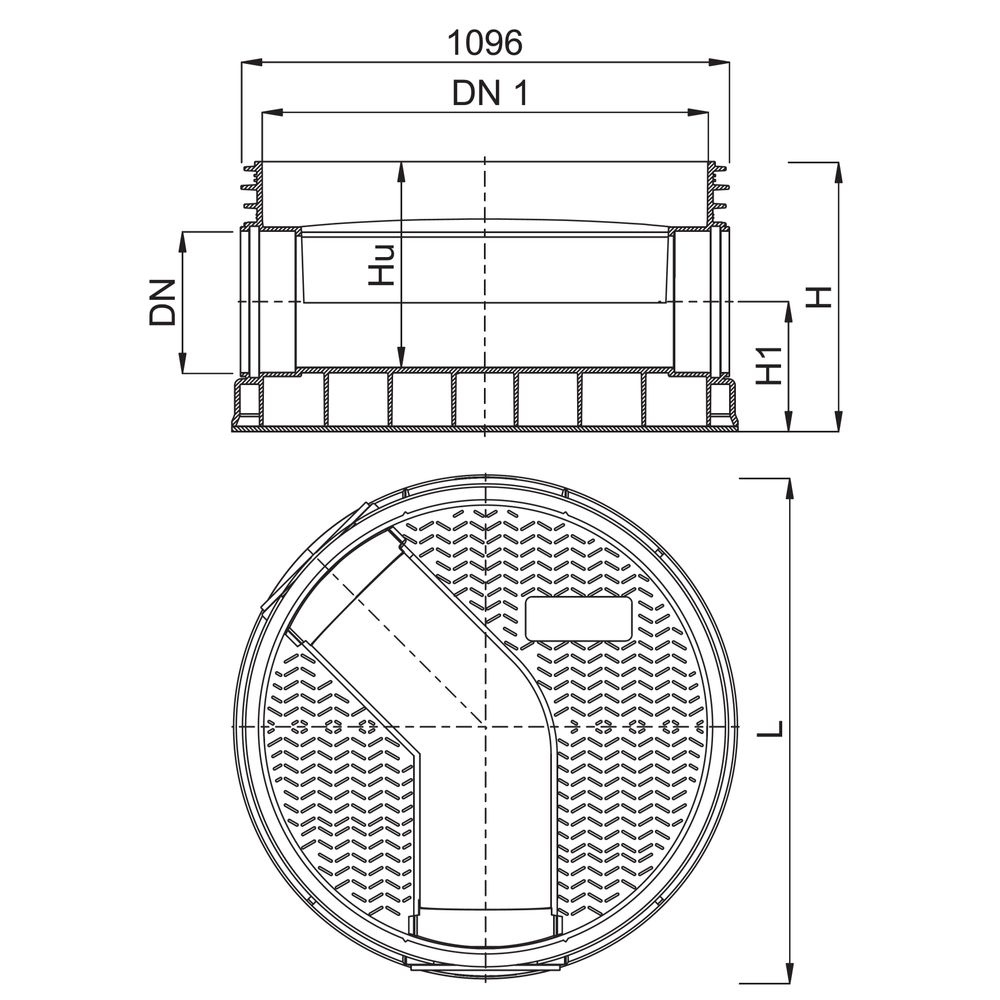

(Everything you should know)| Product type | PP Ribwall Pit Bottom |
| Raw material | PP |
| Colour | Reddish brown |
| DN 1 (mm) | 1000mm |
| DN (mm) | 315mm |
| Number of connections | 2 |
| Base | Profile |
| Pipe wall | Solid wall |
| Certificate norm | EN 13598-2 |
| Certificate | BENOR |
| H (mm) | 595mm |
| Hu (mm) | 475mm |
| Length (mm) | 1136mm |
| H1 (mm) | 280mm |
| Weight (kg) | 76,4kg |
| Product type | PP Ribwall Pit Bottom |
| Raw material | PP |
| Colour | Reddish brown |
| DN 1 (mm) | 1000mm |
| DN (mm) | 315mm |
| Number of connections | 2 |
| Base | Profile |
| Pipe wall | Solid wall |
| Certificate norm | EN 13598-2 |
| Certificate | BENOR |
| H (mm) | 595mm |
| Hu (mm) | 475mm |
| Length (mm) | 1136mm |
| H1 (mm) | 280mm |
| Weight (kg) | 76,4kg |
