PP BASE 800MM RIBWALL BENOR 2X250MM 180° 43CM
PP BASE 800MM RIBWALL BENOR 2X250MM 180° 43CM
| Code | PPBOD800R2518 |
| Code | PPBOD800R2518 |
| Reference | 22331 |
| Unit | pieces |
| Product model | PP Ribwall Pit Bottom |
| Availablility |
Availablility |
| Description |

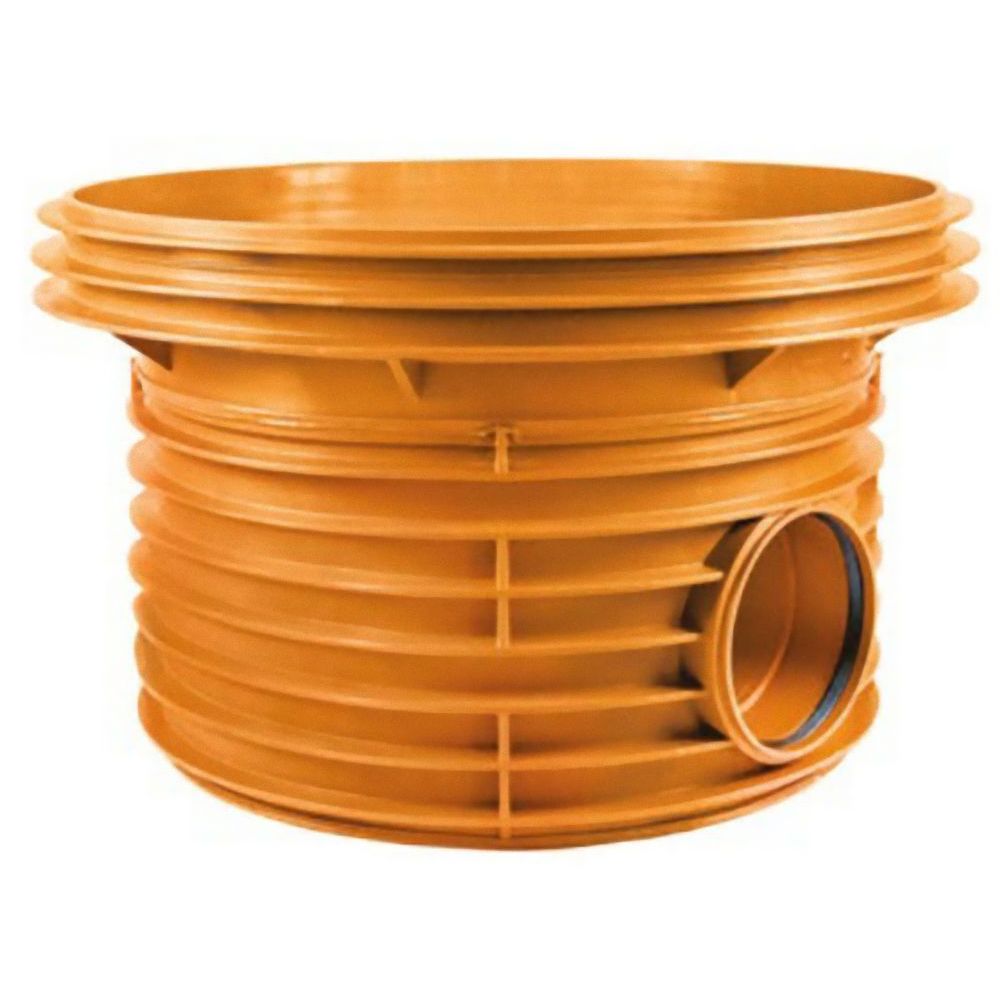

Profiled manhole base composed of an injection-moulded manhole body, equipped with reinforcing ribs, steps and a flow profile adapted to the outlet diameter. Suitable for connection to ribbed PP pipes. The connections are fitted with fixed lip seals. The manhole body is equipped at the top with a riser collar with lip seal for watertight connection of a ribbed PP DN800 riser pipe. Maximum installation depth: 6 m Permissible groundwater level: 5 m Traffic load: SLW60 |
| Documents |
Availablility
Profiled manhole base composed of an injection-moulded manhole body, equipped with reinforcing ribs, steps and a flow profile adapted to the outlet diameter. Suitable for connection to ribbed PP pipes. The connections are fitted with fixed lip seals. The manhole body is equipped at the top with a riser collar with lip seal for watertight connection of a ribbed PP DN800 riser pipe. Maximum installation depth: 6 m Permissible groundwater level: 5 m Traffic load: SLW60
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Accessories
(Selected for you)
Availablility
-
Aartselaar
-
Farciennes
-
Geel
-
Hasselt
-
Herent
-
Herstal
-
Hoogstraten
-
Oostakker
-
Tielt
-
Zedelgem
Product information
(Well informed)Description
(In detail)Profiled manhole base composed of an injection-moulded manhole body, equipped with reinforcing ribs, steps and a flow profile adapted to the outlet diameter. Suitable for connection to ribbed PP pipes. The connections are fitted with fixed lip seals. The manhole body is equipped at the top with a riser collar with lip seal for watertight connection of a ribbed PP DN800 riser pipe.
- Maximum installation depth: 6 m
- Permissible groundwater level: 5 m
- Traffic load: SLW60
Pros and cons
(According to our consultants)Technical specifications

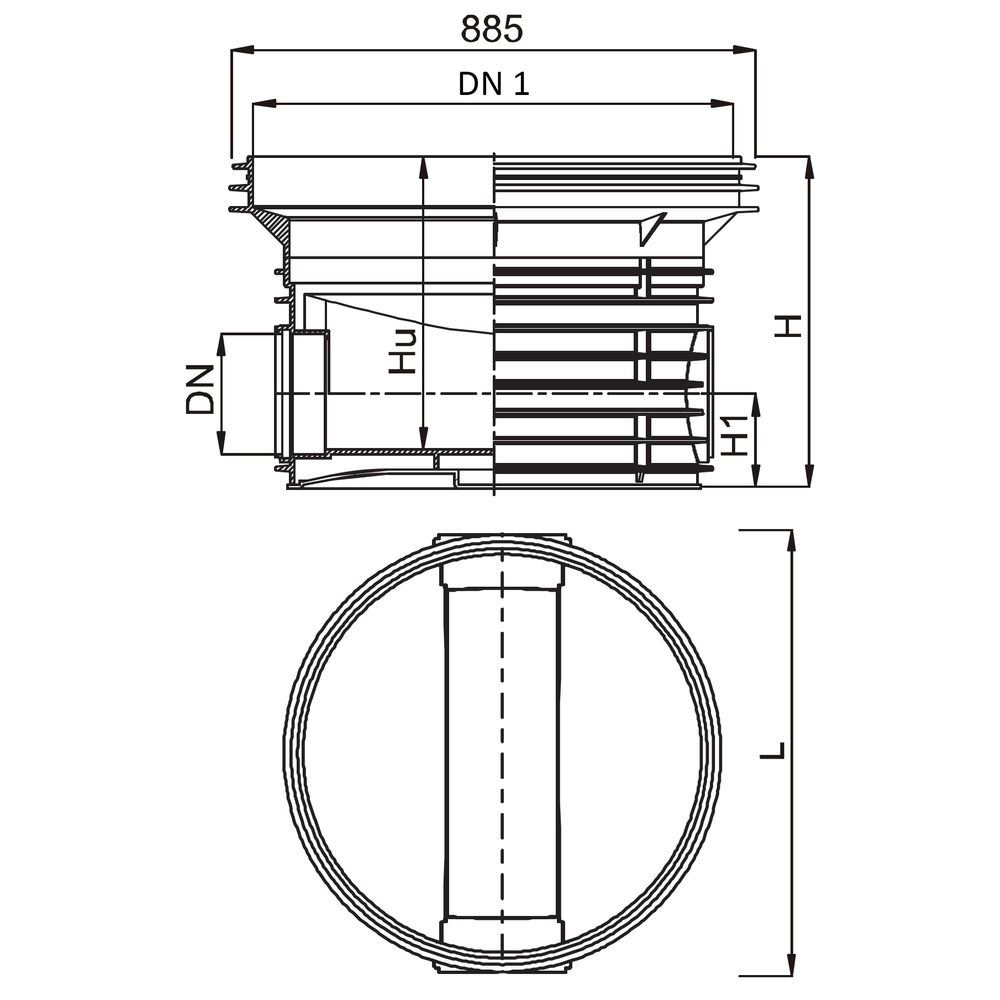

(Everything you should know)| Product type | PP Ribwall Pit Bottom |
| Raw material | PP |
| Colour | Reddish brown |
| DN 1 (mm) | 800mm |
| DN (mm) | 250mm |
| Number of connections | 2 |
| Base | Profile |
| Pipe wall | Ribbed |
| Certificate norm | EN 13598-2 |
| Certificate | BENOR |
| H (mm) | 705mm |
| Hu (mm) | 595mm |
| Length (mm) | 778mm |
| H1 (mm) | 233mm |
| Weight (kg) | 28,1kg |
| Product type | PP Ribwall Pit Bottom |
| Raw material | PP |
| Colour | Reddish brown |
| DN 1 (mm) | 800mm |
| DN (mm) | 250mm |
| Number of connections | 2 |
| Base | Profile |
| Pipe wall | Ribbed |
| Certificate norm | EN 13598-2 |
| Certificate | BENOR |
| H (mm) | 705mm |
| Hu (mm) | 595mm |
| Length (mm) | 778mm |
| H1 (mm) | 233mm |
| Weight (kg) | 28,1kg |
