PP HOUSE INFILTRATION CHAMBER Ø315 2X160 H1200 60L
PP HOUSE INFILTRATION CHAMBER Ø315 2X160 H1200 60L
| Code | PPHUISINF315 |
| Code | PPHUISINF315 |
| Reference | 46767 |
| Unit | pieces |
| Product model | Infiltration house connection pit PP |
| Availablility |
Availablility |
| Description |

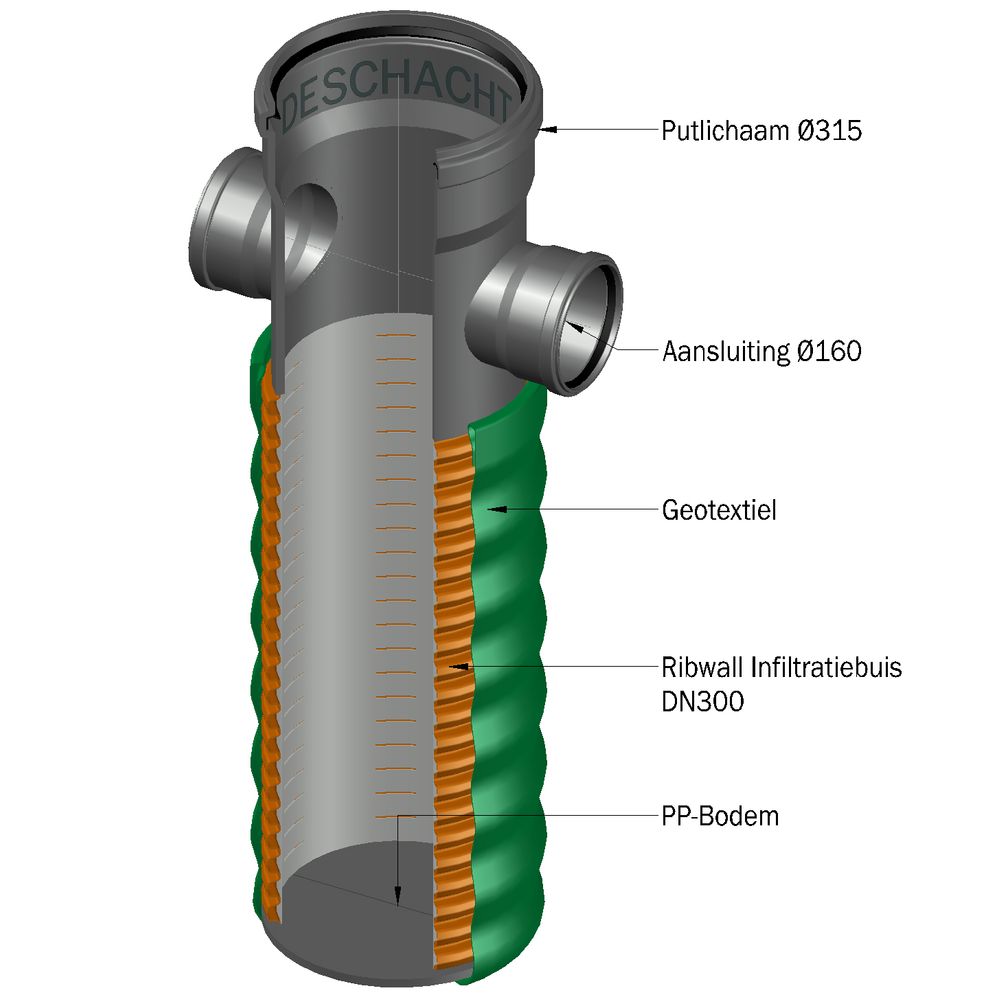

The PP infiltration house connection chamber is an injection-moulded inspection chamber made of polypropylene (PP), welded to a PP Ribwall infiltration pipe and wrapped with woven geotextile. |
| Documents |
Availablility
The PP infiltration house connection chamber is an injection-moulded inspection chamber made of polypropylene (PP), welded to a PP Ribwall infiltration pipe and wrapped with woven geotextile.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)The PP infiltration house connection chamber is an injection-moulded inspection chamber made of polypropylene (PP), welded to a PP Ribwall infiltration pipe and wrapped with woven geotextile.
Application
This chamber offers a combination of inspection and infiltration functions in a single solution, suitable for various applications in water management and the sewerage industry.
Pros and cons
(According to our consultants)Technical specifications

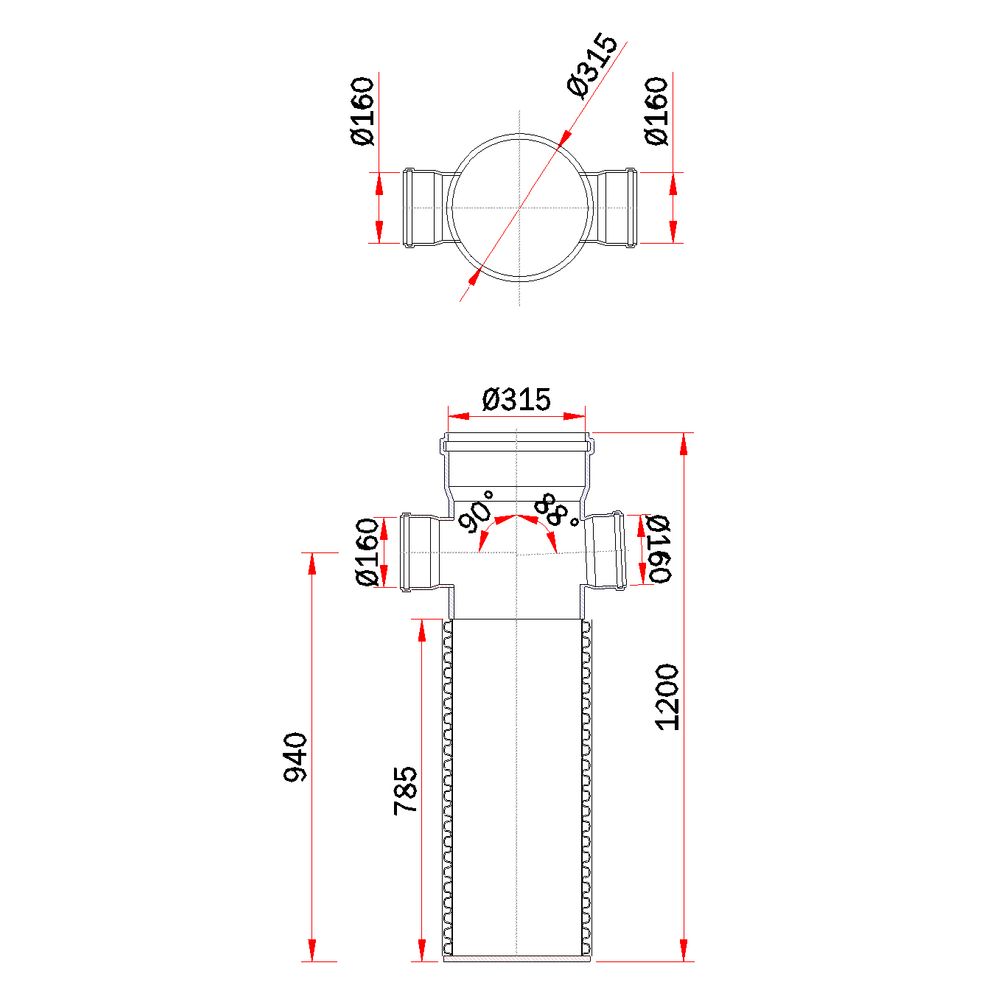

(Everything you should know)| Product type | Infiltration house connection pit PP |
| Diameter manhole (mm) | 315mm |
| Connection diameter (mm) | 160mm |
| Colour | Grey |
| Height (mm) | 1200mm |
| Raw material | PP |
| Slot width (mm) | 5mm |
| Base | Flat |
| Perforations | >=100cm²/m |
| Infiltration volume (L) | 60l |
| Side infiltration area (m²) | 0,83m² |
| Product type | Infiltration house connection pit PP |
| Diameter manhole (mm) | 315mm |
| Connection diameter (mm) | 160mm |
| Colour | Grey |
| Height (mm) | 1200mm |
| Raw material | PP |
| Slot width (mm) | 5mm |
| Base | Flat |
| Perforations | >=100cm²/m |
| Infiltration volume (L) | 60l |
| Side infiltration area (m²) | 0,83m² |
