PP RIBWALL IT-SEWER Ø200 SN16 BARE L6M BLACK

PP RIBWALL IT-SEWER Ø200 SN16 BARE L6M BLACK

Code ITR200SN16
Code ITR200SN16
Reference 28145
Unit meter
Product model Bare pipe PP ribwall
Collection Ribwall
Availablility

Availablility

  • Geel
Description

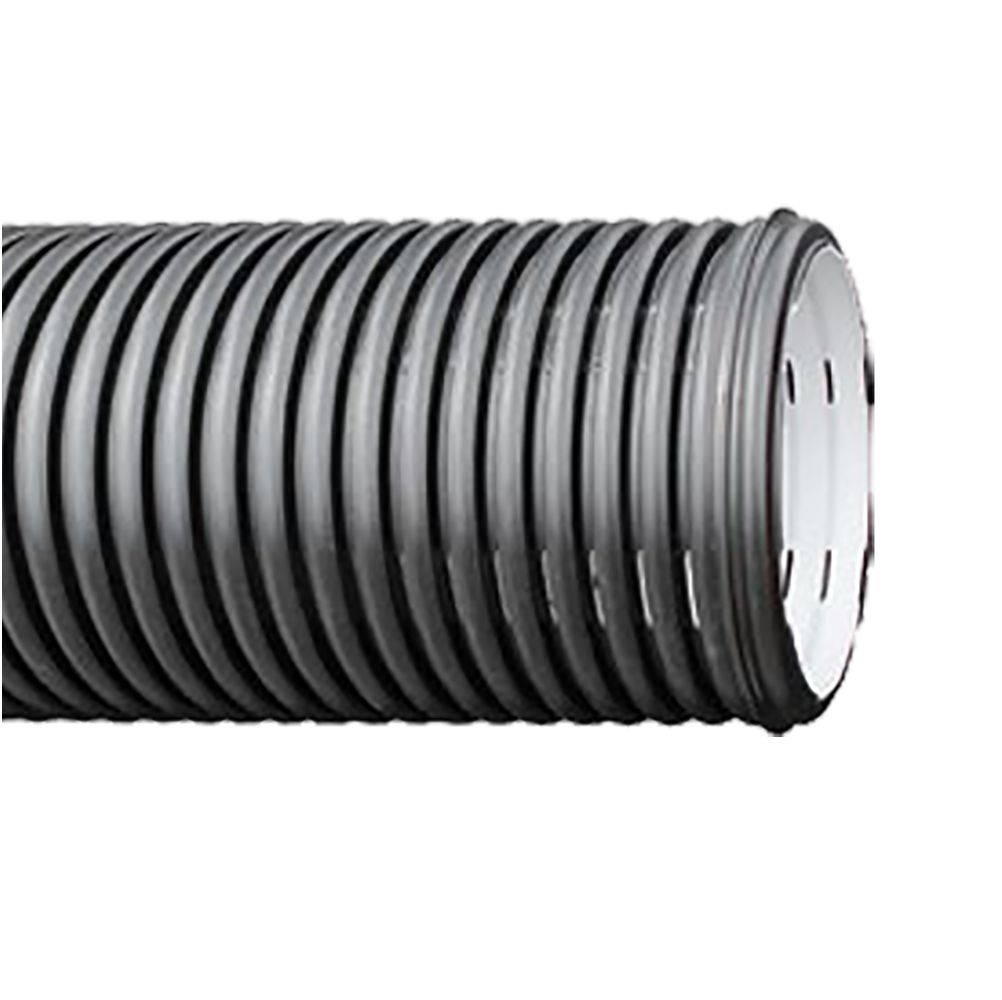

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN16, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Full description
Documents

Availablility

  • Geel

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN16, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Accessories

(Selected for you)

Availablility

  • Farciennes
  • Geel
  • Hasselt
  • Herent
  • Tielt
  • Zedelgem

Product information

(Well informed)

Description

(In detail)

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter.

The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN16, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black.

Material: SBR sealing ring.

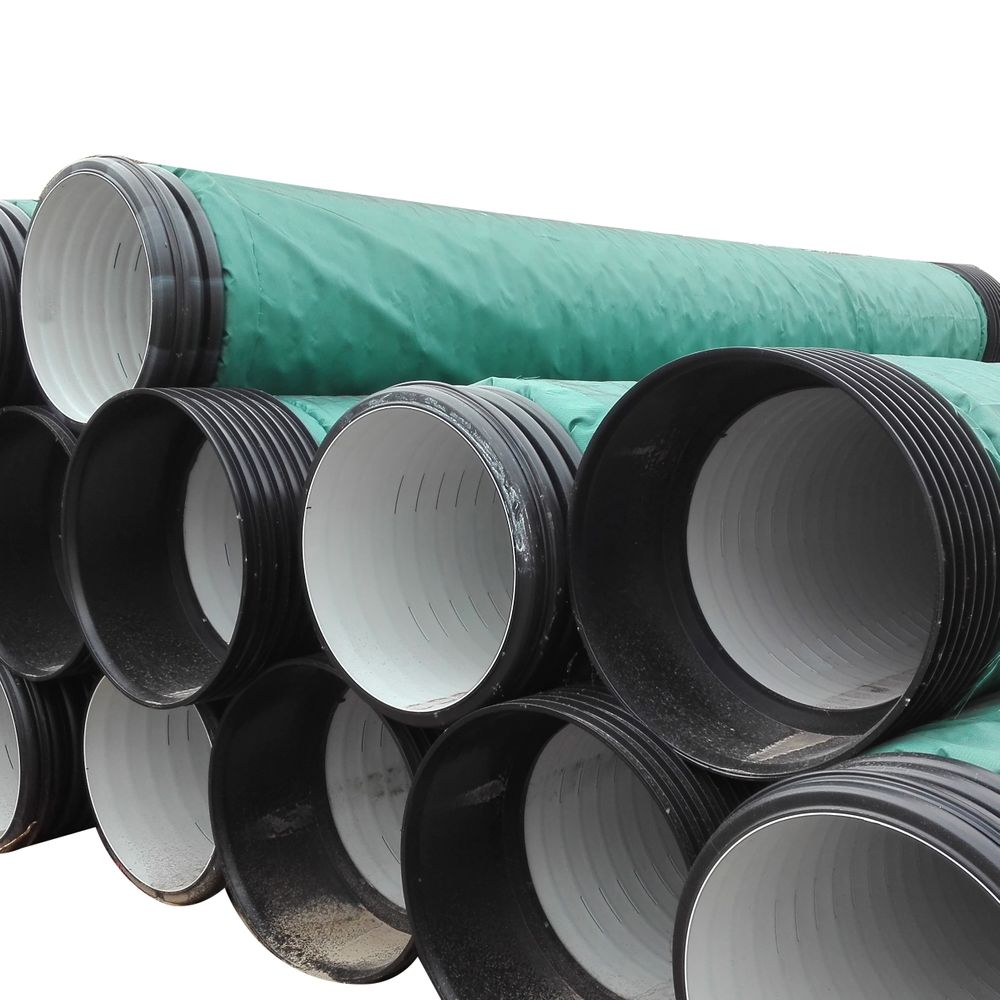

The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Technical specifications

(Everything you should know)
Product type Bare pipe PP ribwall
DN (mm) 200mm
Length (m) 6m
Certificate Uncertified
Colour Black
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Ring stiffness commercial SN16
Weight (kg) 20,4kg

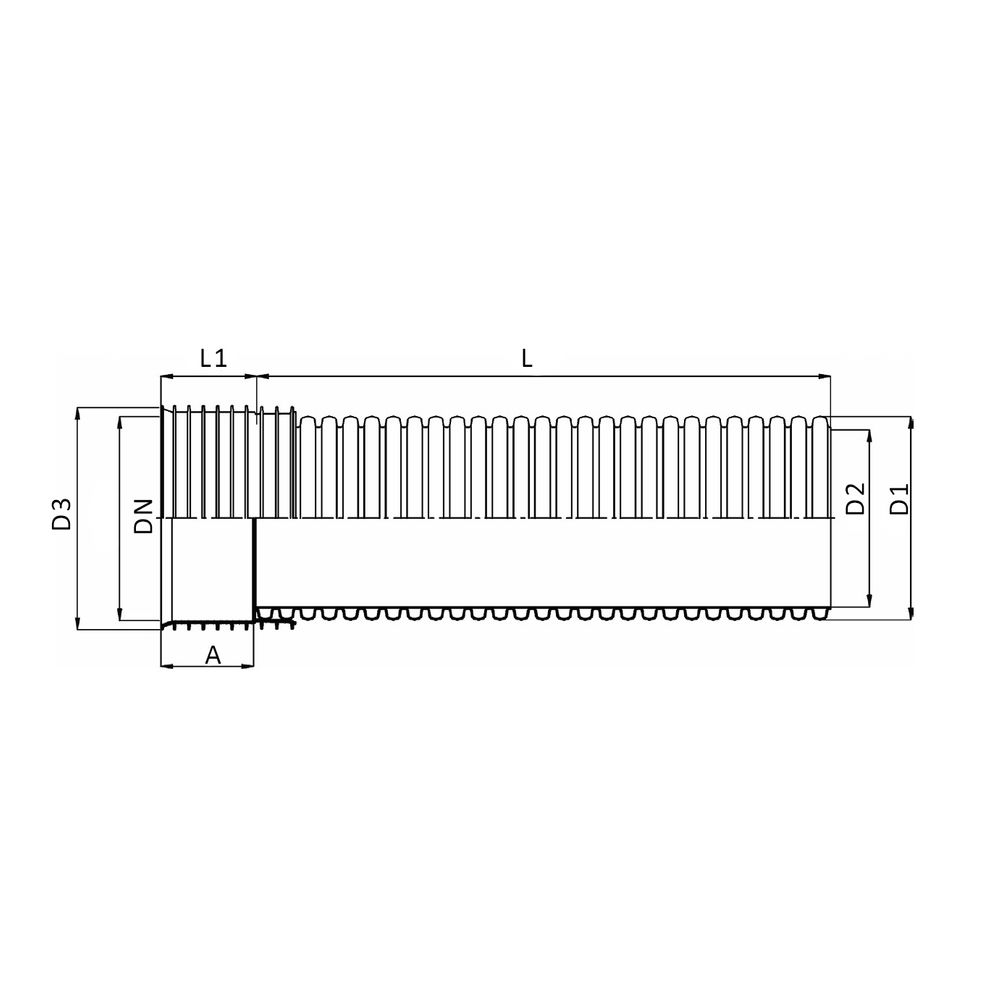

D1 (mm) 225
D2 (mm) 198
D3 (mm) 254
A (mm) 101mm
L1 (mm) 110mm
Volume (l/m) 31,1l
Weight (kg/m) 3,3kg
Side infiltration area (m²/m) 0,35
Product type Bare pipe PP ribwall
DN (mm) 200mm
Length (m) 6m
Certificate Uncertified
Colour Black
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Ring stiffness commercial SN16
Weight (kg) 20,4kg
D1 (mm) 225
D2 (mm) 198
D3 (mm) 254
A (mm) 101mm
L1 (mm) 110mm
Volume (l/m) 31,1l
Weight (kg/m) 3,3kg
Side infiltration area (m²/m) 0,35
