PP RIBWALL IT-SEWER Ø500 SN16 BARE L6M BLACK
PP RIBWALL IT-SEWER Ø500 SN16 BARE L6M BLACK
| Code | ITR500SN16 |
| Code | ITR500SN16 |
| Reference | 28149 |
| Unit | meter |
| Product model | Bare pipe PP ribwall |
| Collection | Ribwall |
| Availablility |
Availablility |
| Description |

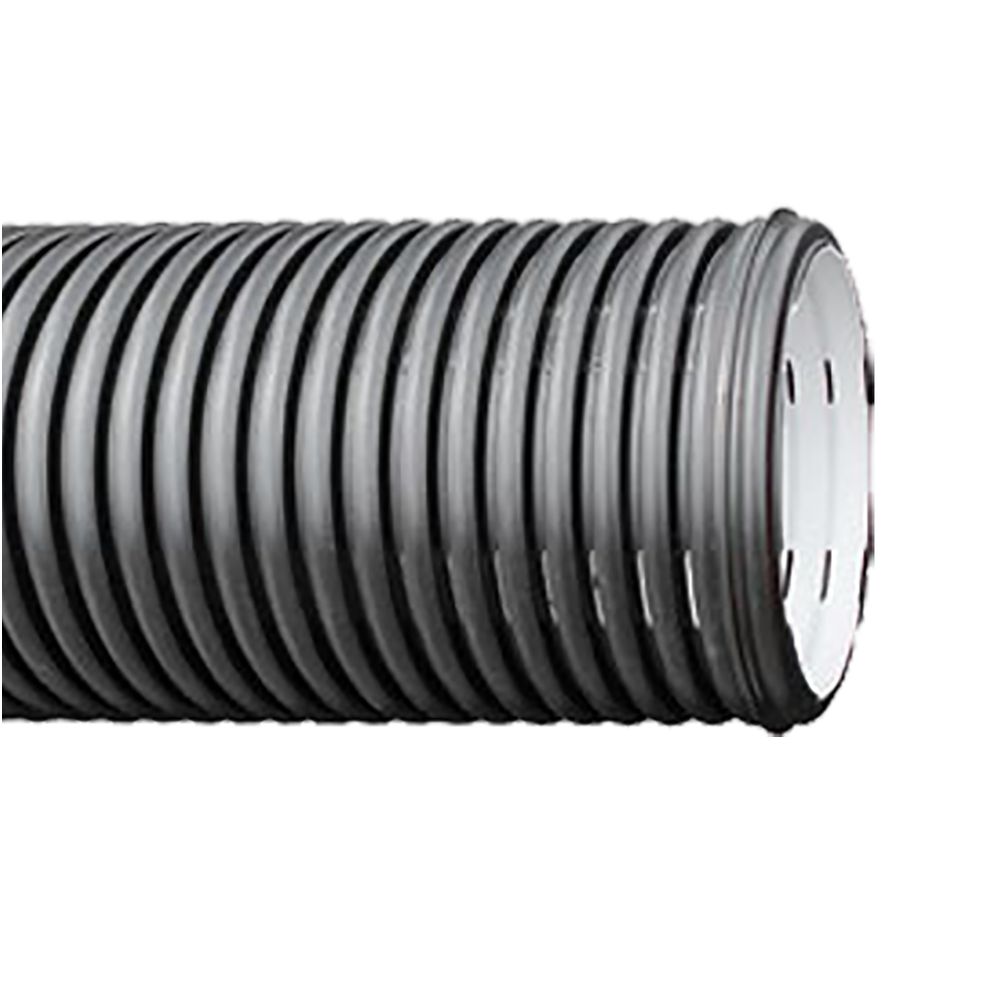

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN16, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180. |
| Documents |
Availablility
The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN16, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Accessories
(Selected for you)
Availablility
-
Farciennes
-
Geel
-
Hasselt
-
Hoogstraten
-
Tielt
-
Zedelgem
Product information
(Well informed)Description
(In detail)The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter.
The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN16, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black.
Material: SBR sealing ring.
The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.
Technical specifications
(Everything you should know)| Product type | Bare pipe PP ribwall |
| DN (mm) | 500mm |
| Length (m) | 6m |
| Certificate | Uncertified |
| Colour | Black |
| Raw material | PP |
| Pipe wall | Ribbed |
| Collection | Ribwall |
| Ring stiffness commercial | SN16 |
| Weight (kg) | 131,35kg |

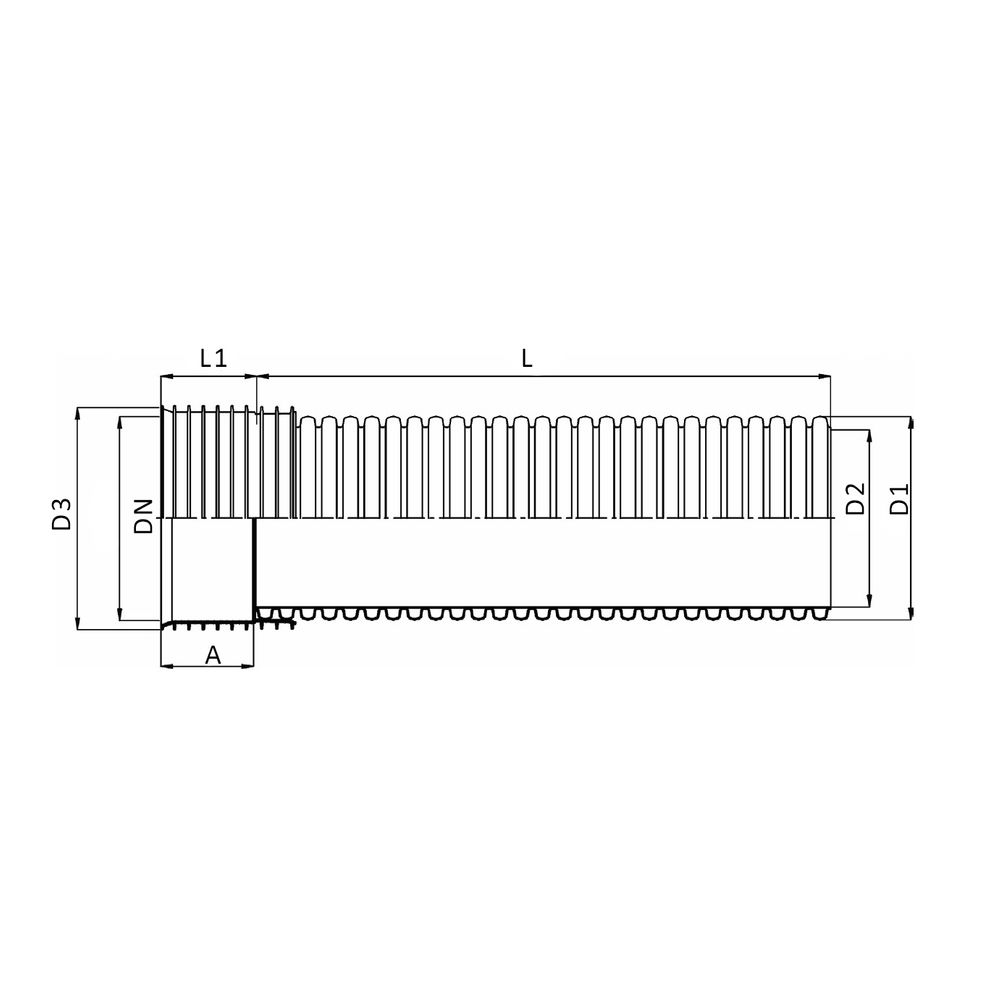

| D1 (mm) | 569 |
| D2 (mm) | 496 |
| D3 (mm) | 569 |
| A (mm) | 248mm |
| L1 (mm) | 268mm |
| Volume (l/m) | 194l |
| Weight (kg/m) | 20,95kg |
| Side infiltration area (m²/m) | 0,89 |
| Product type | Bare pipe PP ribwall |
| DN (mm) | 500mm |
| Length (m) | 6m |
| Certificate | Uncertified |
| Colour | Black |
| Raw material | PP |
| Pipe wall | Ribbed |
| Collection | Ribwall |
| Ring stiffness commercial | SN16 |
| Weight (kg) | 131,35kg |
| D1 (mm) | 569 |
| D2 (mm) | 496 |
| D3 (mm) | 569 |
| A (mm) | 248mm |
| L1 (mm) | 268mm |
| Volume (l/m) | 194l |
| Weight (kg/m) | 20,95kg |
| Side infiltration area (m²/m) | 0,89 |
