PP RIBWALL IT-SEWER BENOR Ø400 SN8 BARE L6M BLACK

PP RIBWALL IT-SEWER BENOR Ø400 SN8 BARE L6M BLACK

Code ITR400
Code ITR400
Reference 9745
Unit meter
Product model Bare pipe PP ribwall
Collection Ribwall
Availablility

Availablility

  • Geel
  • Hasselt
  • Herent
  • Tielt
  • Zedelgem
Description

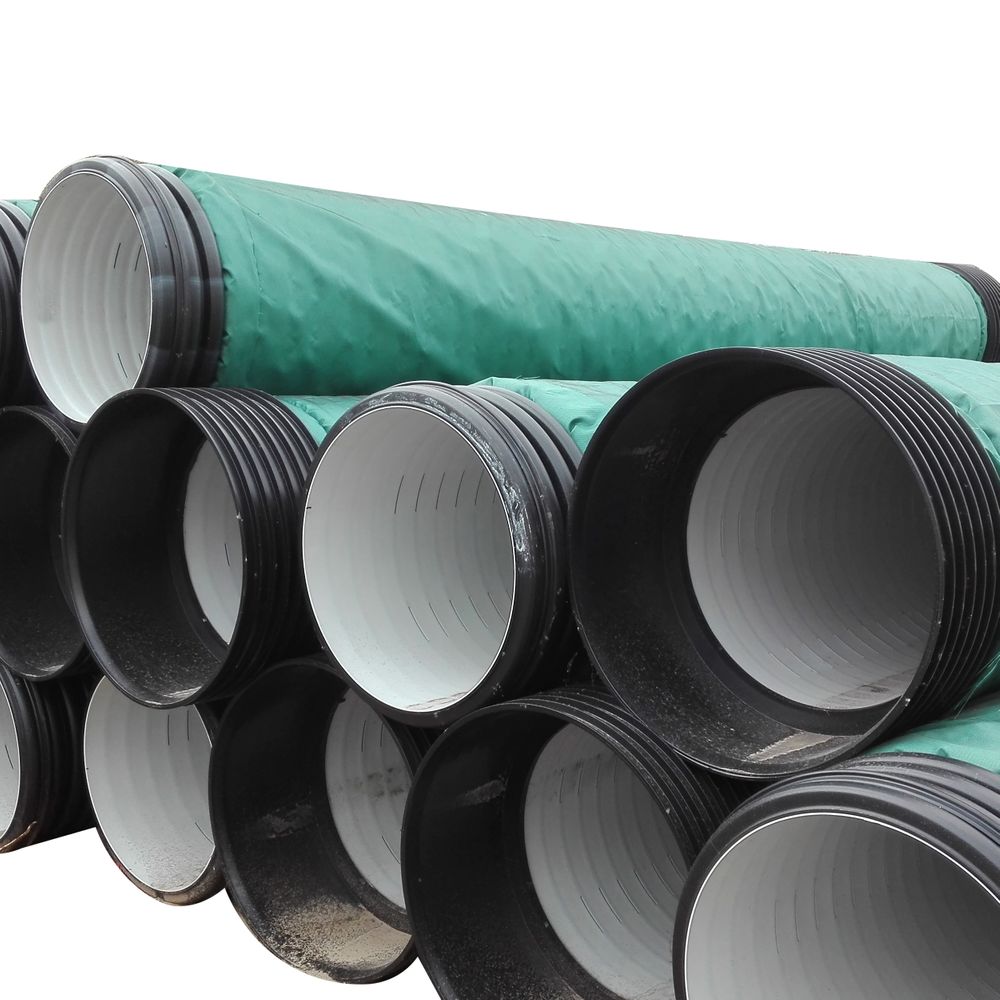

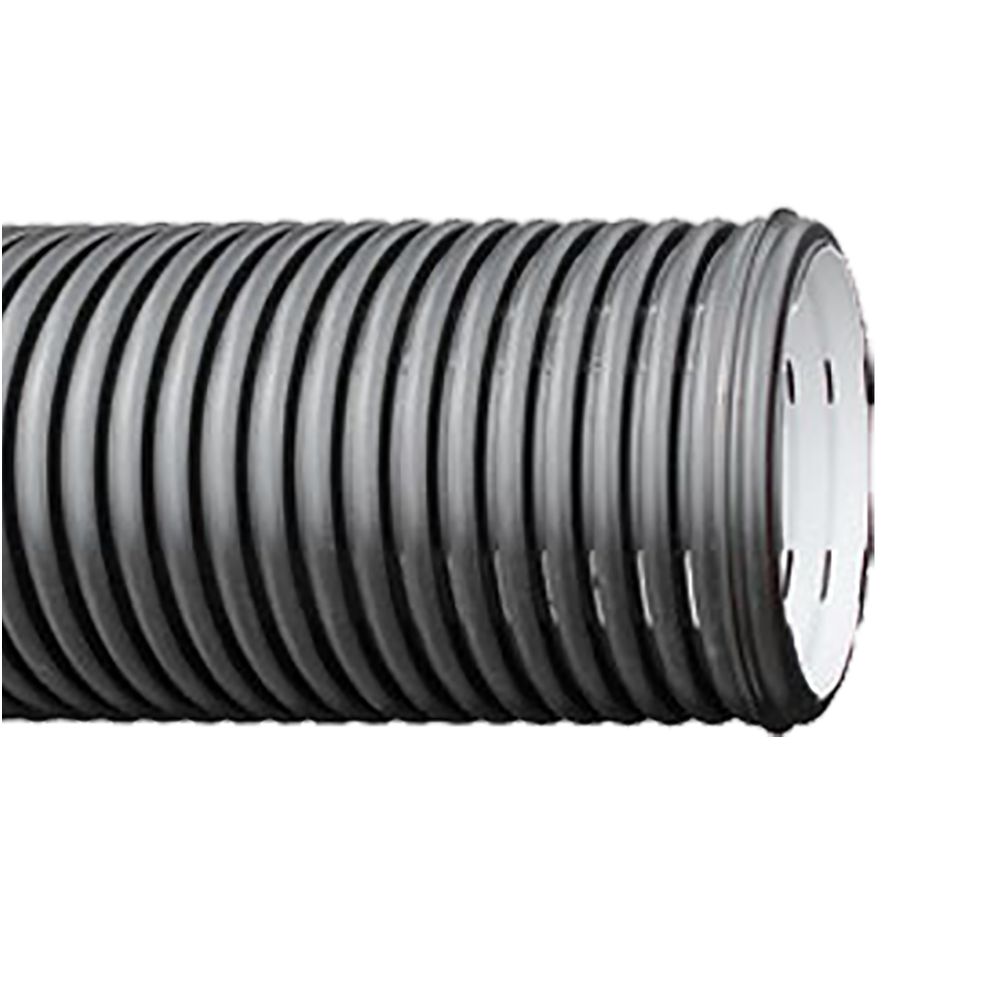

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Full description
Documents

Availablility

  • Geel
  • Hasselt
  • Herent
  • Tielt
  • Zedelgem

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Often bought together with

(Selected for you)

Availablility

  • Aartselaar
  • Geel
  • Hasselt
  • Herent
  • Tielt
  • Zedelgem

Product information

(Well informed)

Description

(In detail)

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter.

The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black.

Material: SBR sealing ring.

The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Technical specifications

(Everything you should know)
Product type Bare pipe PP ribwall
DN (mm) 400mm
Length (m) 6m
Certificate BENOR
Colour Black
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Certificate norm NBN T-42-115
Ring stiffness commercial SN8
Weight (kg) 48,57kg

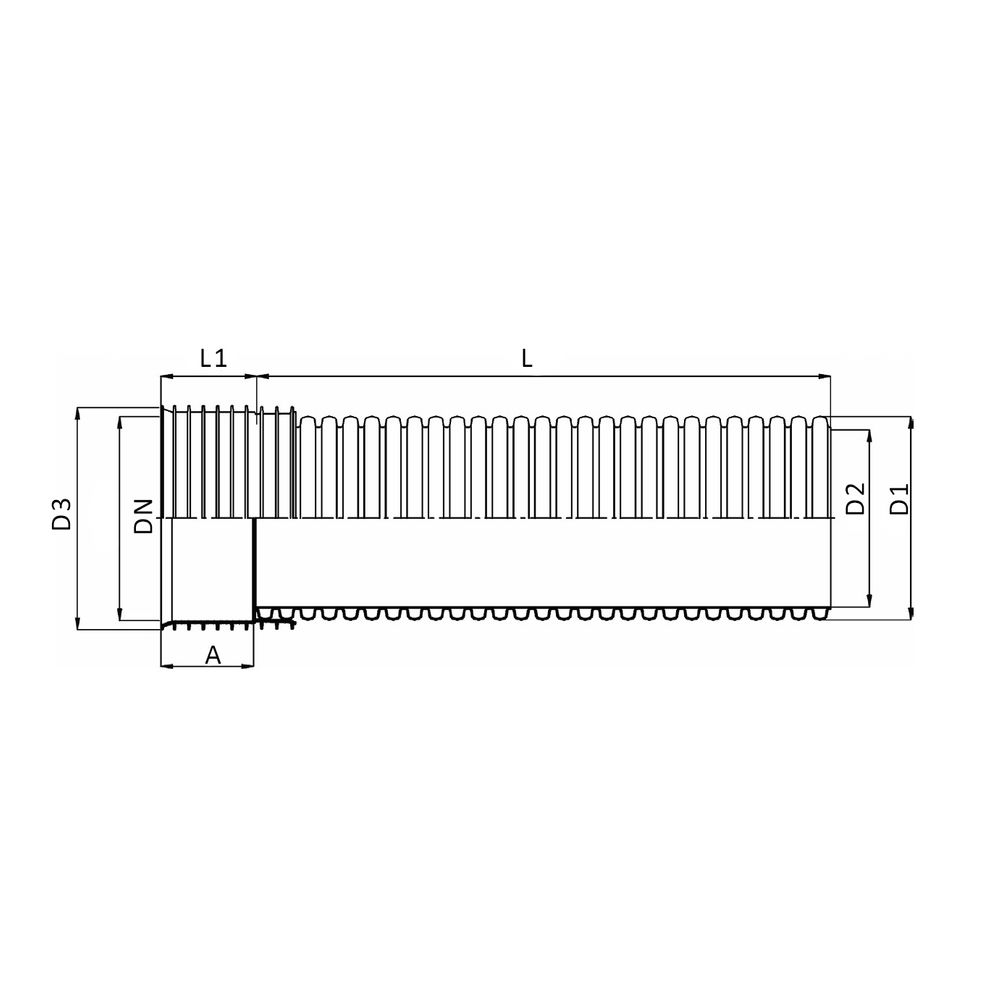

D1 (mm) 455
D2 (mm) 396
D3 (mm) 499
A (mm) 208mm
L1 (mm) 214mm
Volume (l/m) 124,1l
Weight (kg/m) 7,7kg
Side infiltration area (m²/m) 0,72
Product type Bare pipe PP ribwall
DN (mm) 400mm
Length (m) 6m
Certificate BENOR
Colour Black
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Certificate norm NBN T-42-115
Ring stiffness commercial SN8
Weight (kg) 48,57kg
D1 (mm) 455
D2 (mm) 396
D3 (mm) 499
A (mm) 208mm
L1 (mm) 214mm
Volume (l/m) 124,1l
Weight (kg/m) 7,7kg
Side infiltration area (m²/m) 0,72
