PP RIBWALL IT-SEWER BENOR Ø500 SN8 BARE L6M BLACK

PP RIBWALL IT-SEWER BENOR Ø500 SN8 BARE L6M BLACK

Code ITR500
Code ITR500
Reference 9746
Unit meter
Product model Bare pipe PP ribwall
Collection Ribwall
Availablility

Availablility

  • Geel
  • Hasselt
  • Tielt
  • Zedelgem
Description

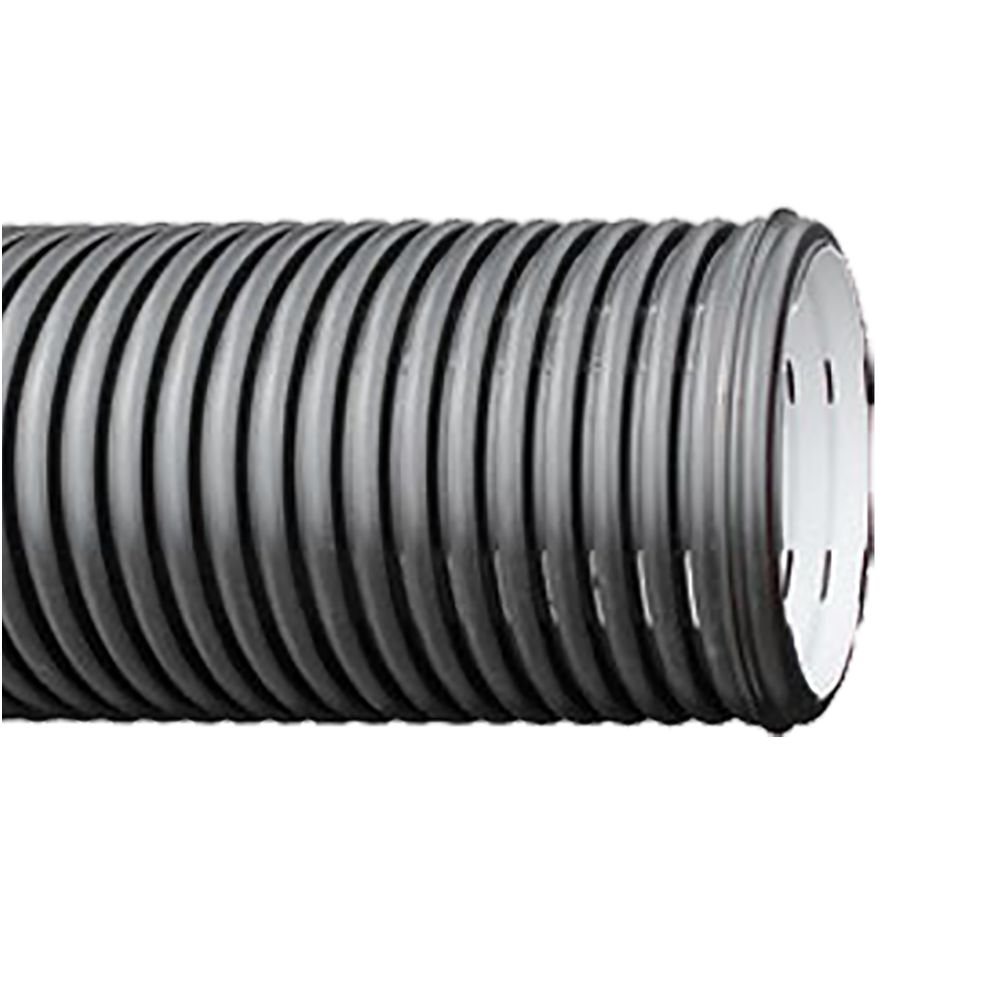

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Full description
Documents

Availablility

  • Geel
  • Hasselt
  • Tielt
  • Zedelgem

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter. The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black. Material: SBR sealing ring. The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Accessories

(Selected for you)

Availablility

  • Farciennes
  • Geel
  • Hasselt
  • Hoogstraten
  • Tielt
  • Zedelgem

Product information

(Well informed)

Description

(In detail)

The PP-Ribwall IT sewer pipe is an infiltration pipe with a double-walled structured wall (Type B). PP-Ribwall pipes have a nominal size (DN) that refers to the internal diameter.

The PP-Ribwall IT sewer pipe complies with BENOR NBN T42-115, strength class SN8, and is equipped with a socket and a pre-assembled sealing ring. The inner wall of the PP-Ribwall IT pipe is smooth and white in colour, while the outer wall is black.

Material: SBR sealing ring.

The PP-Ribwall IT sewer pipe can be supplied with a wrap of BENOR-certified geotextile HF180.

Technical specifications

(Everything you should know)
Product type Bare pipe PP ribwall
DN (mm) 500mm
Length (m) 6m
Certificate BENOR
Colour Black
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Certificate norm NBN T-42-115
Ring stiffness commercial SN8
Weight (kg) 80,65kg

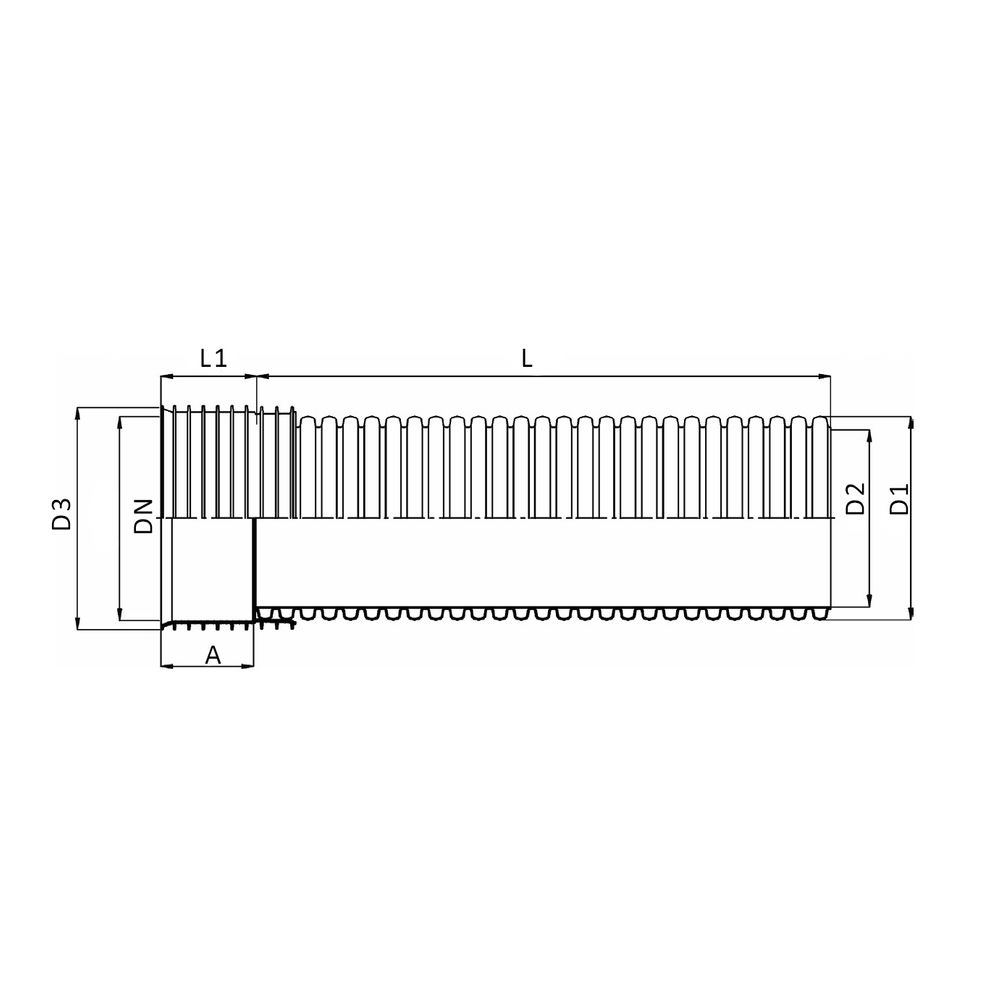

D1 (mm) 569
D2 (mm) 496
D3 (mm) 569
A (mm) 248mm
L1 (mm) 268mm
Volume (l/m) 194l
Weight (kg/m) 12,5kg
Side infiltration area (m²/m) 0,89
Product type Bare pipe PP ribwall
DN (mm) 500mm
Length (m) 6m
Certificate BENOR
Colour Black
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Certificate norm NBN T-42-115
Ring stiffness commercial SN8
Weight (kg) 80,65kg
D1 (mm) 569
D2 (mm) 496
D3 (mm) 569
A (mm) 248mm
L1 (mm) 268mm
Volume (l/m) 194l
Weight (kg/m) 12,5kg
Side infiltration area (m²/m) 0,89
