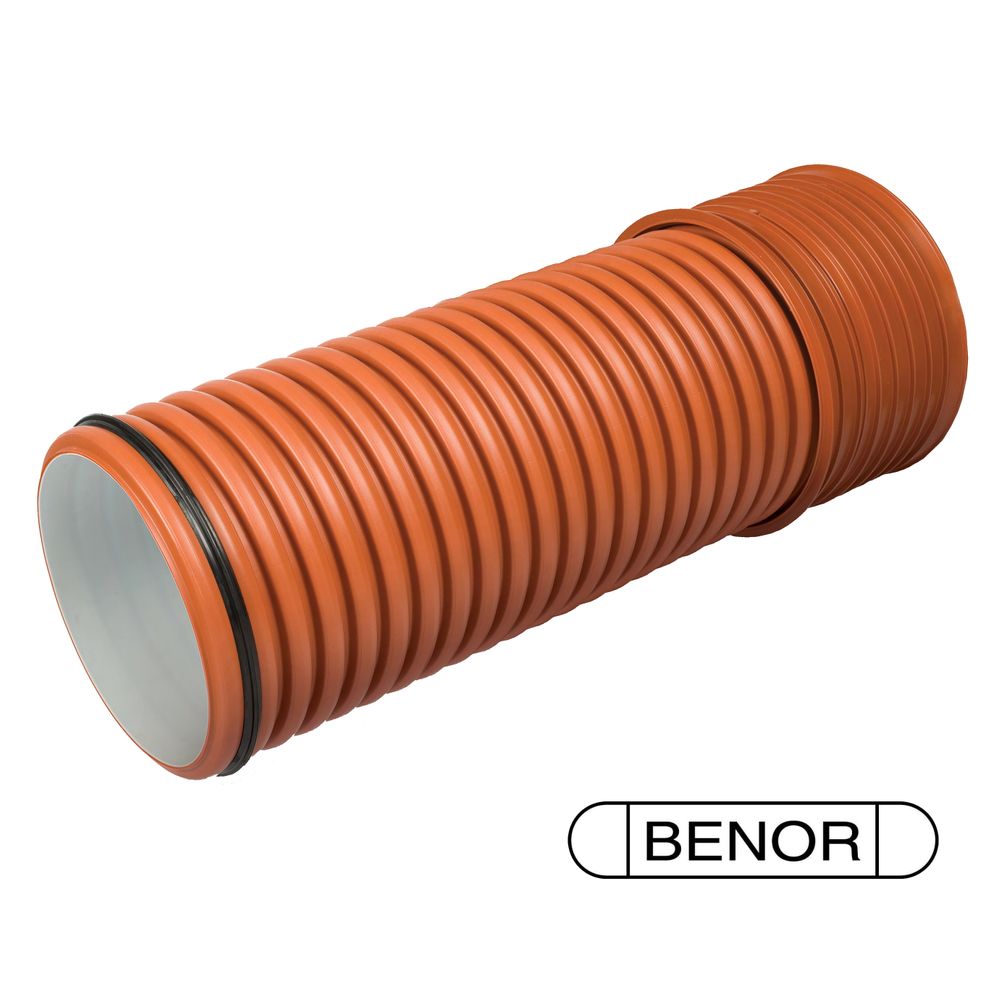

PP RIBWALL SOCKETED PIPE BENOR DN1000 SN8 L=6M
PP RIBWALL SOCKETED PIPE BENOR DN1000 SN8 L=6M
| Code | PPRIB10006 |
| Code | PPRIB10006 |
| Reference | 14913 |
| Unit | meter |
| Product model | Socket pipe PP Ribwall |
| Collection | Ribwall |
| Availablility |
Availablility
|
| Description |
PP-Ribwall pipe with structured wall (Type B), manufactured from virgin polypropylene, in accordance with NBN EN 13476-3. The PP-Ribwall pipes with socket, strength class SN8, are equipped with a pre-assembled sealing ring. The inner pipe wall is smooth, while the outer wall is ribbed. The pipes are welded together, forming a double-wall structure. The inner wall is white to ensure good reflectivity during underground inspections using CCTV cameras. The external colour is reddish-brown up to Ø 600; from Ø 800 onwards, the pipes are black. |
| Documents |
Availablility
-
Geel
PP-Ribwall pipe with structured wall (Type B), manufactured from virgin polypropylene, in accordance with NBN EN 13476-3. The PP-Ribwall pipes with socket, strength class SN8, are equipped with a pre-assembled sealing ring. The inner pipe wall is smooth, while the outer wall is ribbed. The pipes are welded together, forming a double-wall structure. The inner wall is white to ensure good reflectivity during underground inspections using CCTV cameras. The external colour is reddish-brown up to Ø 600; from Ø 800 onwards, the pipes are black.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)PP-Ribwall pipe with structured wall (Type B), manufactured from virgin polypropylene, in accordance with NBN EN 13476-3. The PP-Ribwall pipes with socket, strength class SN8, are equipped with a pre-assembled sealing ring.
The inner pipe wall is smooth, while the outer wall is ribbed. The pipes are welded together, forming a double-wall structure. The inner wall is white to ensure good reflectivity during underground inspections using CCTV cameras. The external colour is reddish-brown up to Ø 600; from Ø 800 onwards, the pipes are black.
Application
PP-Ribwall is a sewer system for underground sanitary wastewater, rainwater, drainage and industrial sewer applications.
Pros and cons
(According to our consultants)Technical specifications
(Everything you should know)| Product type | Socket pipe PP Ribwall |
| DN (mm) | 1000mm |
| Length (m) | 6m |
| Ring stiffness | SN8 |
| Certificate | BENOR |
| Colour | Reddish brown |
| Raw material | PP |
| Pipe wall | Ribbed |
| Collection | Ribwall |
| Certificate norm | EN 13476-3 |
| Weight (kg) | 324,4kg |

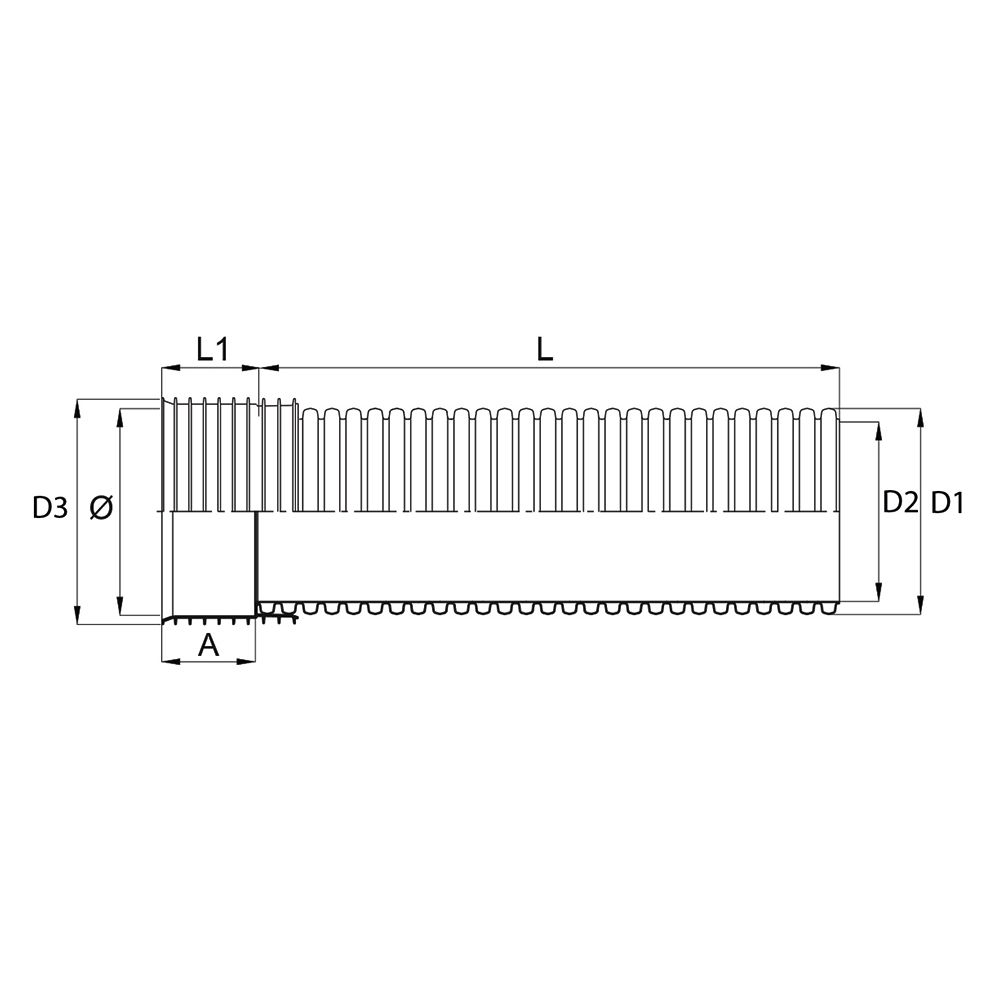

| D1 (mm) | 1135 |
| D2 (mm) | 990 |
| D3 (mm) | 1212 |
| A (mm) | 456mm |
| L1 (mm) | 480mm |
| Volume (l/m) | 769,4l |
| Product type | Socket pipe PP Ribwall |
| DN (mm) | 1000mm |
| Length (m) | 6m |
| Ring stiffness | SN8 |
| Certificate | BENOR |
| Colour | Reddish brown |
| Raw material | PP |
| Pipe wall | Ribbed |
| Collection | Ribwall |
| Certificate norm | EN 13476-3 |
| Weight (kg) | 324,4kg |
| D1 (mm) | 1135 |
| D2 (mm) | 990 |
| D3 (mm) | 1212 |
| A (mm) | 456mm |
| L1 (mm) | 480mm |
| Volume (l/m) | 769,4l |
