PP RIBWALL SOCKETED PIPE DN1000 SN16 L=6M BLACK

PP RIBWALL SOCKETED PIPE DN1000 SN16 L=6M BLACK

Code PPRIB1000SN16ZW
Code PPRIB1000SN16ZW
Reference 28074
Unit meter
Product model Socket pipe PP Ribwall
Collection Ribwall
Availablility

Availablility

Description

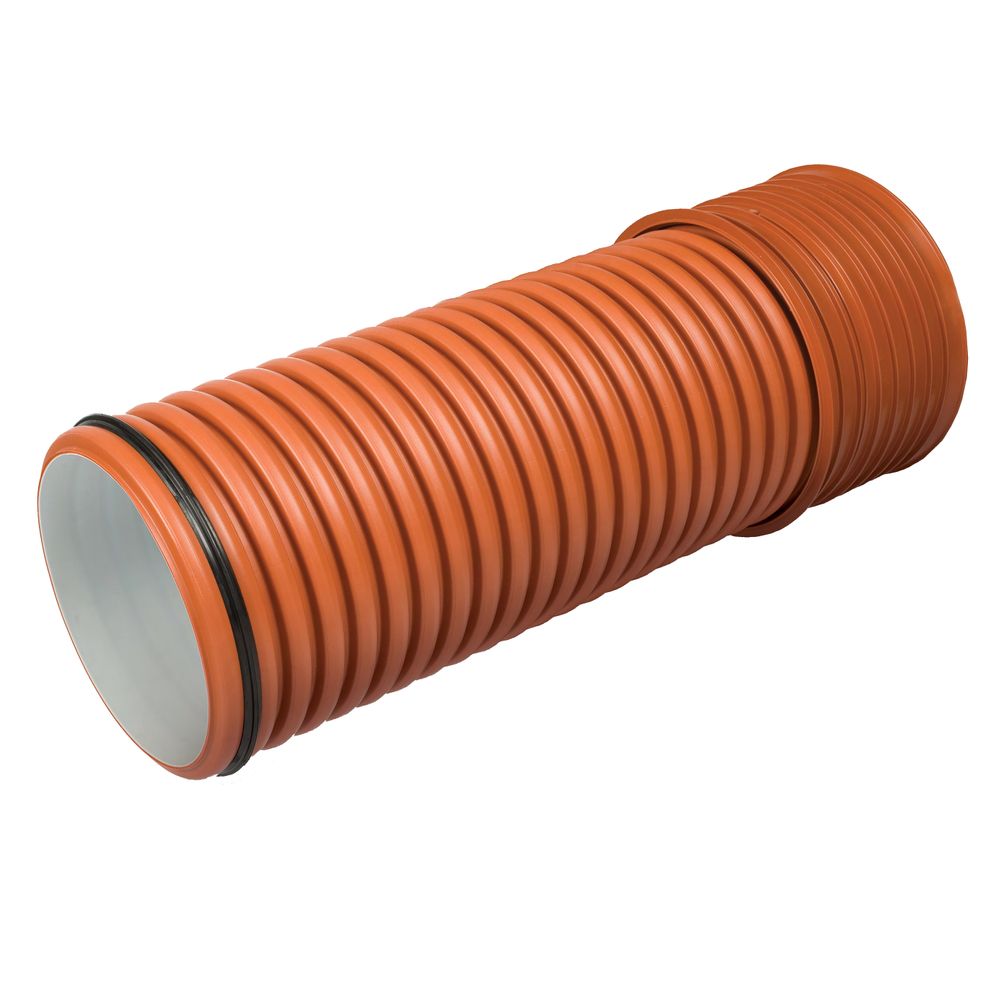

PP-Ribwall pipe with structured wall (Type B), manufactured from virgin polypropylene, in accordance with NBN EN 13476-3. The PP-Ribwall pipes with socket, strength class SN16, are equipped with a pre-assembled sealing ring. The inner pipe wall is smooth, while the outer wall is ribbed. The pipes are welded together, forming a double-wall structure. The inner wall is white to ensure good reflectivity during underground inspections using CCTV cameras. The external colour is reddish-brown up to Ø 600; from Ø 800 onwards, the pipes are black.

Full description
Documents
Technical data sheet

Availablility

PP-Ribwall pipe with structured wall (Type B), manufactured from virgin polypropylene, in accordance with NBN EN 13476-3. The PP-Ribwall pipes with socket, strength class SN16, are equipped with a pre-assembled sealing ring. The inner pipe wall is smooth, while the outer wall is ribbed. The pipes are welded together, forming a double-wall structure. The inner wall is white to ensure good reflectivity during underground inspections using CCTV cameras. The external colour is reddish-brown up to Ø 600; from Ø 800 onwards, the pipes are black.

Full description
Technical data sheet
Become a professional online customer
  • ✓ Access to your net prices
  • ✓ Exclusive online promotions
  • ✓ Tracking of your orders, deliveries, and invoices
  • ✓ Insight into the currently available stock per branch
  • ✓ 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

PP-Ribwall pipe with structured wall (Type B), manufactured from virgin polypropylene, in accordance with NBN EN 13476-3. The PP-Ribwall pipes with socket, strength class SN16, are equipped with a pre-assembled sealing ring.

The inner pipe wall is smooth, while the outer wall is ribbed. The pipes are welded together, forming a double-wall structure. The inner wall is white to ensure good reflectivity during underground inspections using CCTV cameras. The external colour is reddish-brown up to Ø 600; from Ø 800 onwards, the pipes are black.

Pros and cons

(According to our consultants)
  • High chemical resistance; suitable for wastewater with a pH value from 2 (acidic) to 12 (alkaline), rainwater, groundwater contaminated with organic waste, and chemically loaded industrial wastewater
  • Resistant to domestic wastewater at high, continuous temperatures up to 95 °C
  • Smooth inner wall prevents sedimentation and deposits
  • High impact strength despite low pipe weight
  • High modulus of elasticity and excellent ageing resistance
  • The PP-Ribwall pipe is 100% recyclable

Technical specifications

(Everything you should know)
Product type Socket pipe PP Ribwall
DN (mm) 1000mm
Length (m) 6m
Ring stiffness SN16
Colour Reddish brown
Raw material PP
Pipe wall Ribbed
Collection Ribwall
Certificate norm EN 13476-3
Weight (kg) 440,8kg

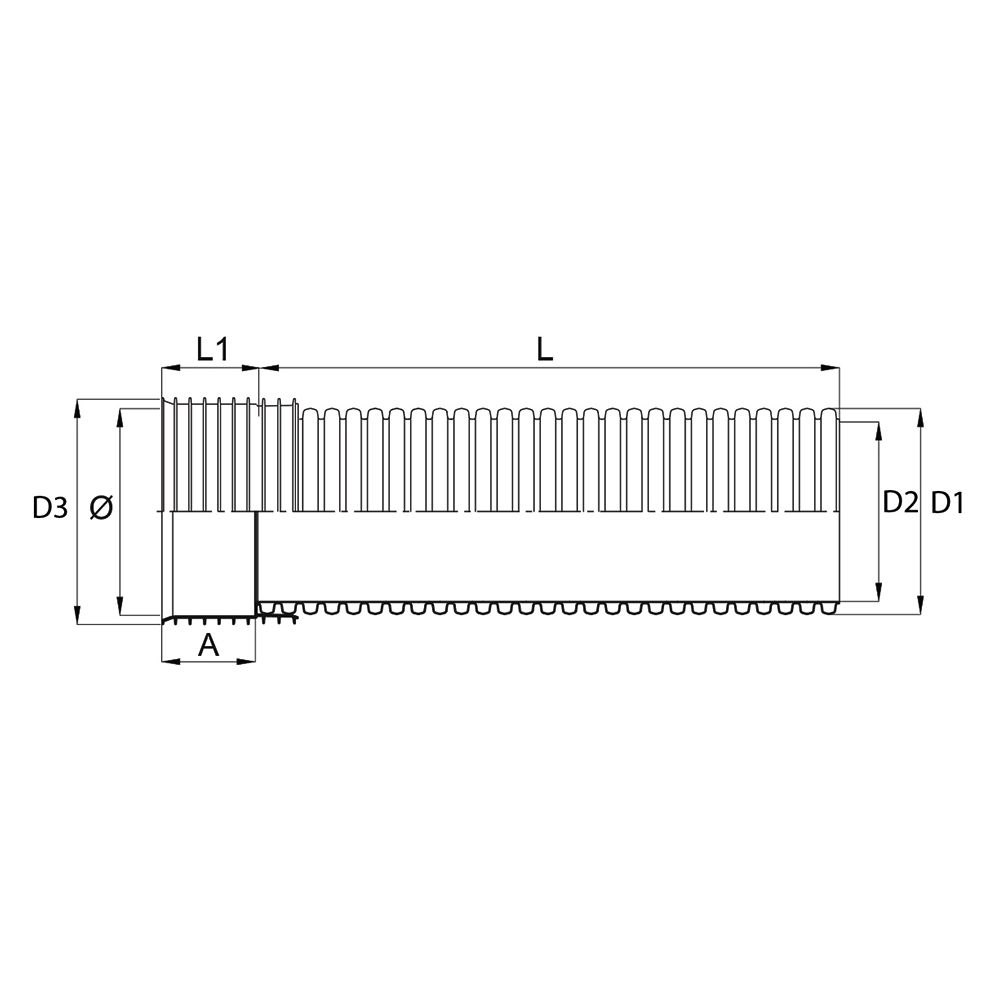

D1 (mm) 1135
D2 (mm) 1000
D3 (mm) 1212
A (mm) 456mm
L1 (mm) 480mm
Volume (l/m) 769,4l
