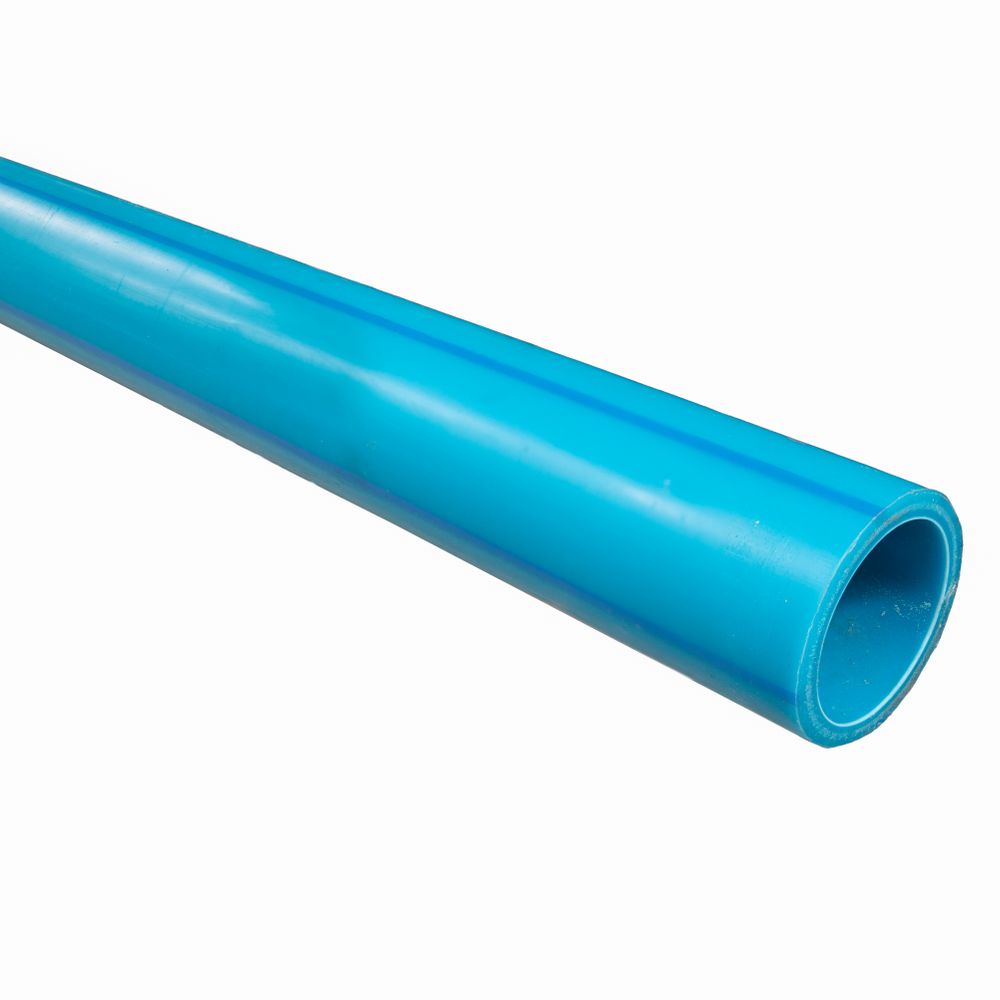

PPR NIRON CLIMA11 BLUE FIBERGLASS Ø400 SDR17 4M
PPR NIRON CLIMA11 BLUE FIBERGLASS Ø400 SDR17 4M
| Code | NIRBUCL17400 |
| Code | NIRBUCL17400 |
| Brand | Niron |
| Reference | 29266 |
| Unit | meter |
| Product model | Multilayer pipe CLIMA |
| Availablility |
Availablility |
| Description |
In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065 |
| Documents |
Availablility
In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe.
- Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065
Technical specifications
(Everything you should know)| Product type | Multilayer pipe CLIMA |
| SDR value | SDR17 |
| Colour | Blue |
| Diameter Ø (mm) | 400mm |
| Length (m) | 4m |
| Raw material | Glass fiber, PP-R |

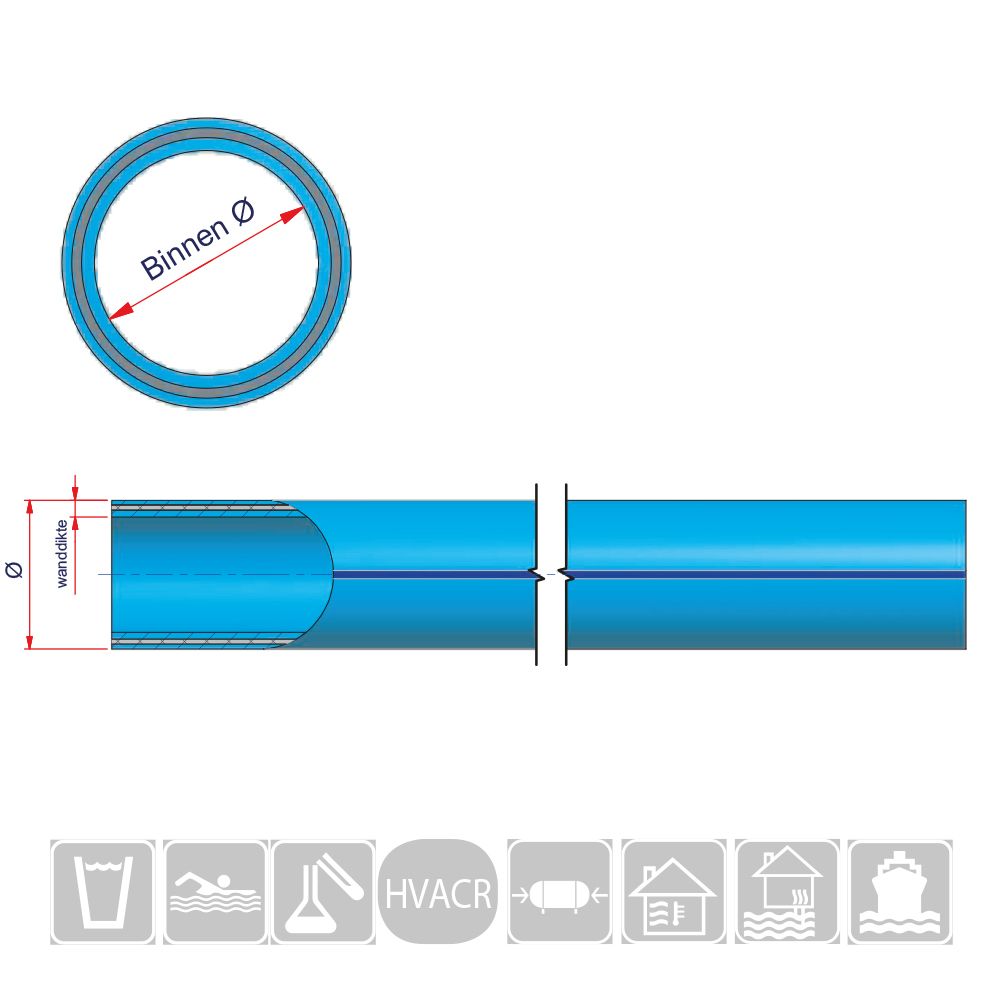

| Inner diameter Ø (mm) | 352,6mm |
| Weight (kg/m) | 27,03kg |
| Litre (l/m) | 97,6l |
| Wall thickness (mm) | 23,7mm |
| Product type | Multilayer pipe CLIMA |
| SDR value | SDR17 |
| Colour | Blue |
| Diameter Ø (mm) | 400mm |
| Length (m) | 4m |
| Raw material | Glass fiber, PP-R |
| Inner diameter Ø (mm) | 352,6mm |
| Weight (kg/m) | 27,03kg |
| Litre (l/m) | 97,6l |
| Wall thickness (mm) | 23,7mm |
