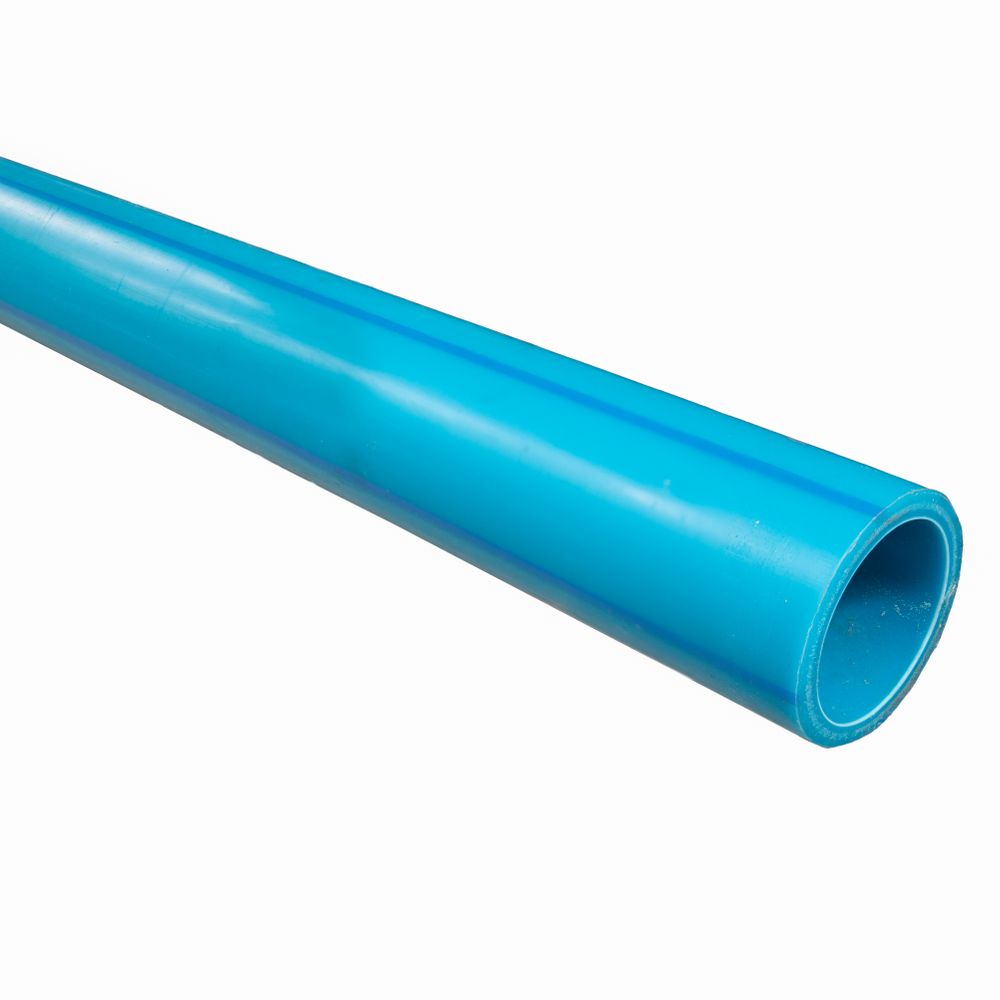

PPR NIRON CLIMA11 BLUE FIBERGLASS Ø63 SDR11 4M

PPR NIRON CLIMA11 BLUE FIBERGLASS Ø63 SDR11 4M

Code NIRBUCL063
Code NIRBUCL063
Brand Niron
Reference 29250
Unit meter
Product model Multilayer pipe CLIMA
Availablility

Availablility

  • Geel
  • Hamme
Description

In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065

Full description
Documents

Availablility

  • Geel
  • Hamme

In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)
In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water.
The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe.

  • Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065

Technical specifications

(Everything you should know)
Product type Multilayer pipe CLIMA
SDR value SDR11
Colour Blue
Diameter Ø (mm) 63mm
Length (m) 4m
Raw material Glass fiber, PP-R
Inner diameter Ø (mm) 51,4mm
Weight (kg/m) 1,06kg
Litre (l/m) 2,07l
Wall thickness (mm) 5,8mm
Product type Multilayer pipe CLIMA
SDR value SDR11
Colour Blue
Diameter Ø (mm) 63mm
Length (m) 4m
Raw material Glass fiber, PP-R
Inner diameter Ø (mm) 51,4mm
Weight (kg/m) 1,06kg
Litre (l/m) 2,07l
Wall thickness (mm) 5,8mm
