PPR NIRON CLIMA11 BLUE FIBERGLASS Ø75 SDR11 4M
PPR NIRON CLIMA11 BLUE FIBERGLASS Ø75 SDR11 4M
| Code | NIRBUCL075 |
| Code | NIRBUCL075 |
| Brand | Niron |
| Reference | 29251 |
| Unit | meter |
| Product model | Multilayer pipe CLIMA |
| Availablility |
Availablility
|
| Description |
In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065 |
| Documents |
Availablility
-
Geel
-
Hamme
In order to limit the thermal expansion of plastic materials at both high and low temperatures, a glass fleece reinforcement must be applied for air-conditioning applications involving hot and cold water. The structure of the PP-R pipe consists of 25% PP-R – 50% glass fleece – 25% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK, instead of 0.15 mm/mK for a standard PP-R pipe. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)- Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065
Technical specifications
(Everything you should know)| Product type | Multilayer pipe CLIMA |
| SDR value | SDR11 |
| Colour | Blue |
| Diameter Ø (mm) | 75mm |
| Length (m) | 4m |
| Raw material | Glass fiber, PP-R |

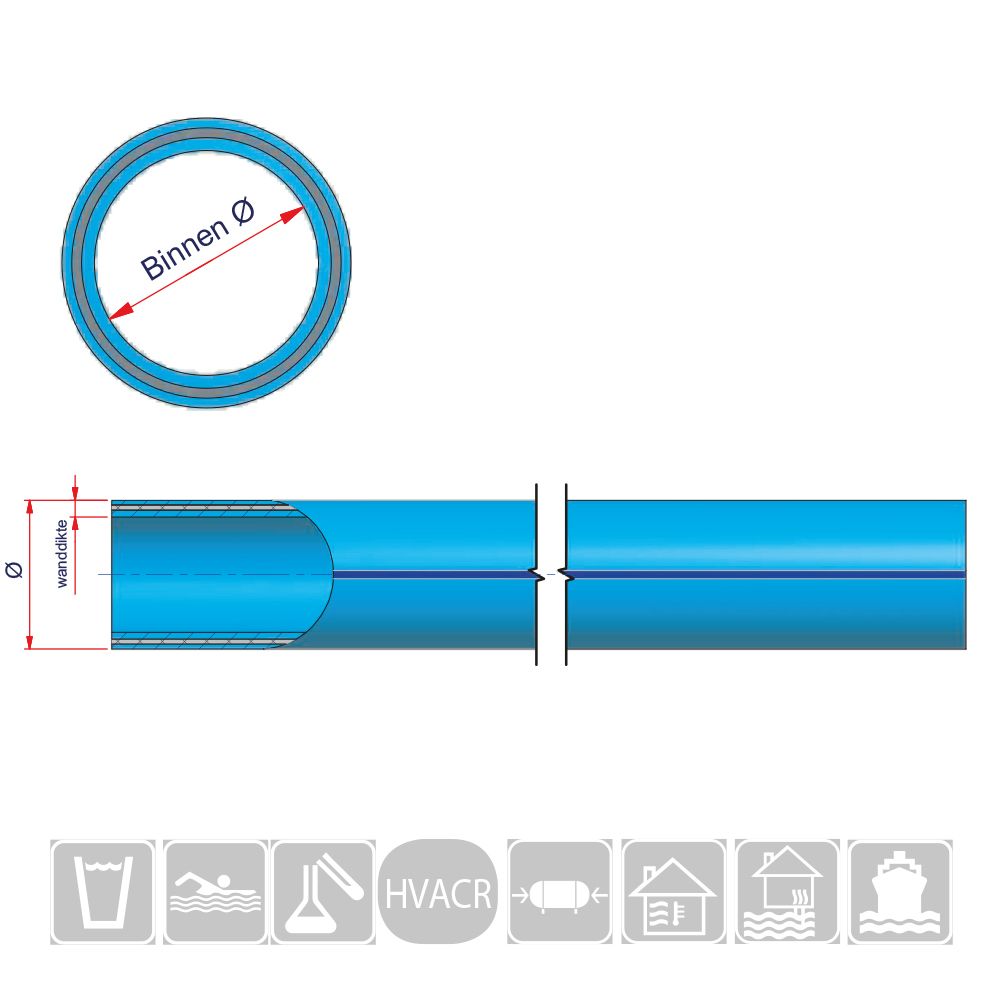

| Inner diameter Ø (mm) | 61,4mm |
| Weight (kg/m) | 1,47kg |
| Litre (l/m) | 2,96l |
| Wall thickness (mm) | 6,8mm |
| Product type | Multilayer pipe CLIMA |
| SDR value | SDR11 |
| Colour | Blue |
| Diameter Ø (mm) | 75mm |
| Length (m) | 4m |
| Raw material | Glass fiber, PP-R |
| Inner diameter Ø (mm) | 61,4mm |
| Weight (kg/m) | 1,47kg |
| Litre (l/m) | 2,96l |
| Wall thickness (mm) | 6,8mm |
