PPR NIRON FG7.4 FIBERGLASS PIPE Ø400 SDR7.4 4M
PPR NIRON FG7.4 FIBERGLASS PIPE Ø400 SDR7.4 4M
| Code | NIRBUFG400 |
| Code | NIRBUFG400 |
| Brand | Niron |
| Reference | 29244 |
| Unit | meter |
| Product model | Multilayer pipe FG |
| Availablility |
Availablility |
| Description |

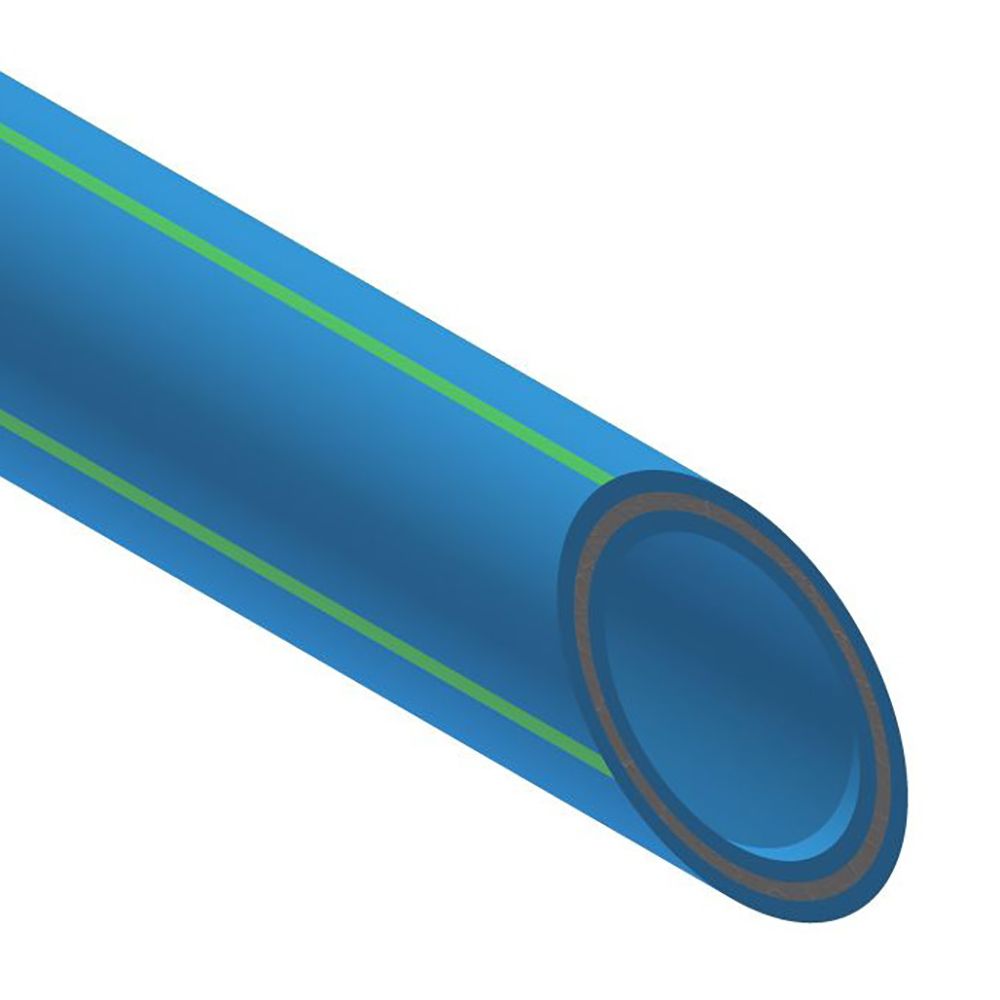

In order to limit the thermal expansion of plastic materials at elevated temperatures, a glass fibre reinforced pipe must be used for surface-mounted hot water applications. The structure of the PP-R pipe consists of 33% PP-R – 33% glass fibre layer – 33% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065 |
| Documents |
Availablility
In order to limit the thermal expansion of plastic materials at elevated temperatures, a glass fibre reinforced pipe must be used for surface-mounted hot water applications. The structure of the PP-R pipe consists of 33% PP-R – 33% glass fibre layer – 33% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK. Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)In order to limit the thermal expansion of plastic materials at elevated temperatures, a glass fibre reinforced pipe must be used for surface-mounted hot water applications. The structure of the PP-R pipe consists of 33% PP-R – 33% glass fibre layer – 33% PP-R. In this way, the thermal expansion coefficient α of the plastic pipe is reduced to 0.035 mm/mK.
- Compliant with: UNI EN ISO 15874 – DIN 8077 – DIN 8078 – CSA B 137.11 – ASTM F 2389 – UNI EN ISO 15494 – ISO 4065

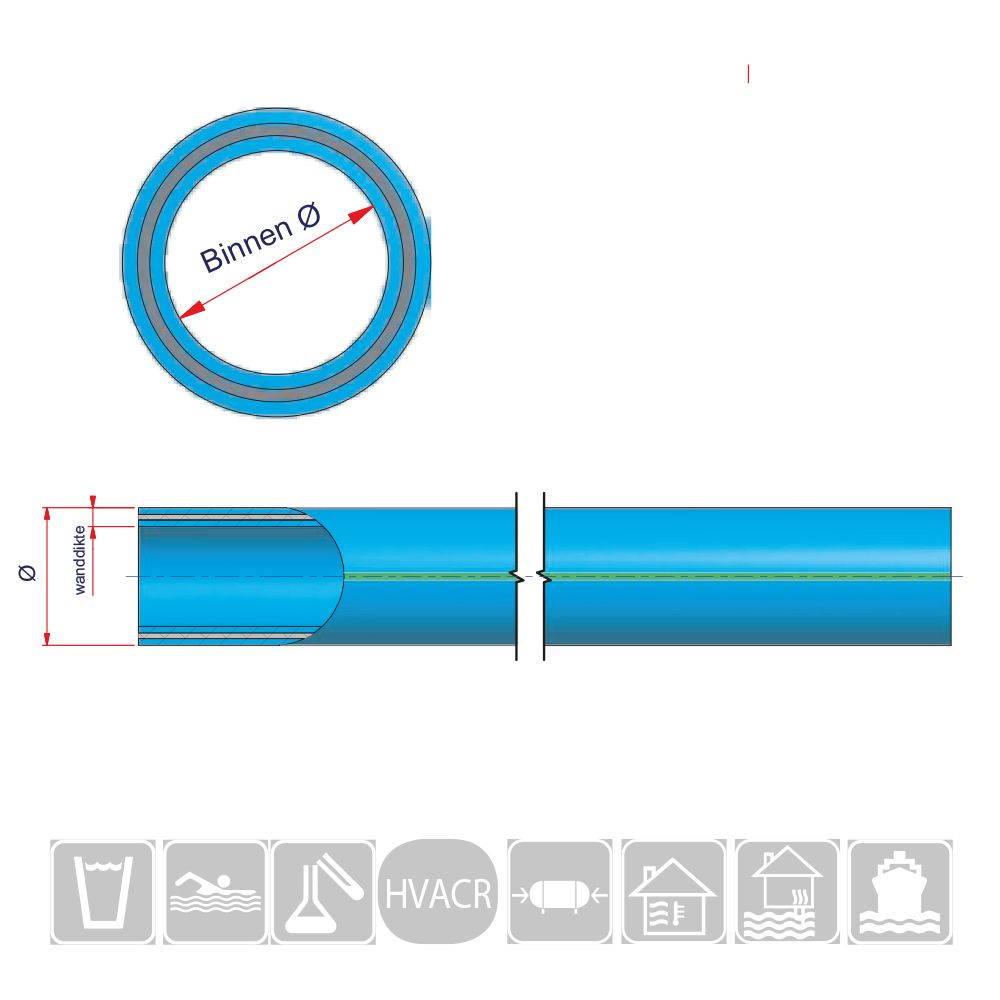

Technical specifications
(Everything you should know)| Product type | Multilayer pipe FG |
| SDR value | SDR7.4 |
| Colour | Blue with green stripes |
| Diameter Ø (mm) | 400mm |
| Length (m) | 4m |
| Raw material | Glass fiber, PP-R |
| Inner diameter Ø (mm) | 290,6mm |
| Weight (kg/m) | 56kg |
| Litre (l/m) | 65,38l |
| Wall thickness (mm) | 54,7mm |
| Product type | Multilayer pipe FG |
| SDR value | SDR7.4 |
| Colour | Blue with green stripes |
| Diameter Ø (mm) | 400mm |
| Length (m) | 4m |
| Raw material | Glass fiber, PP-R |
| Inner diameter Ø (mm) | 290,6mm |
| Weight (kg/m) | 56kg |
| Litre (l/m) | 65,38l |
| Wall thickness (mm) | 54,7mm |
