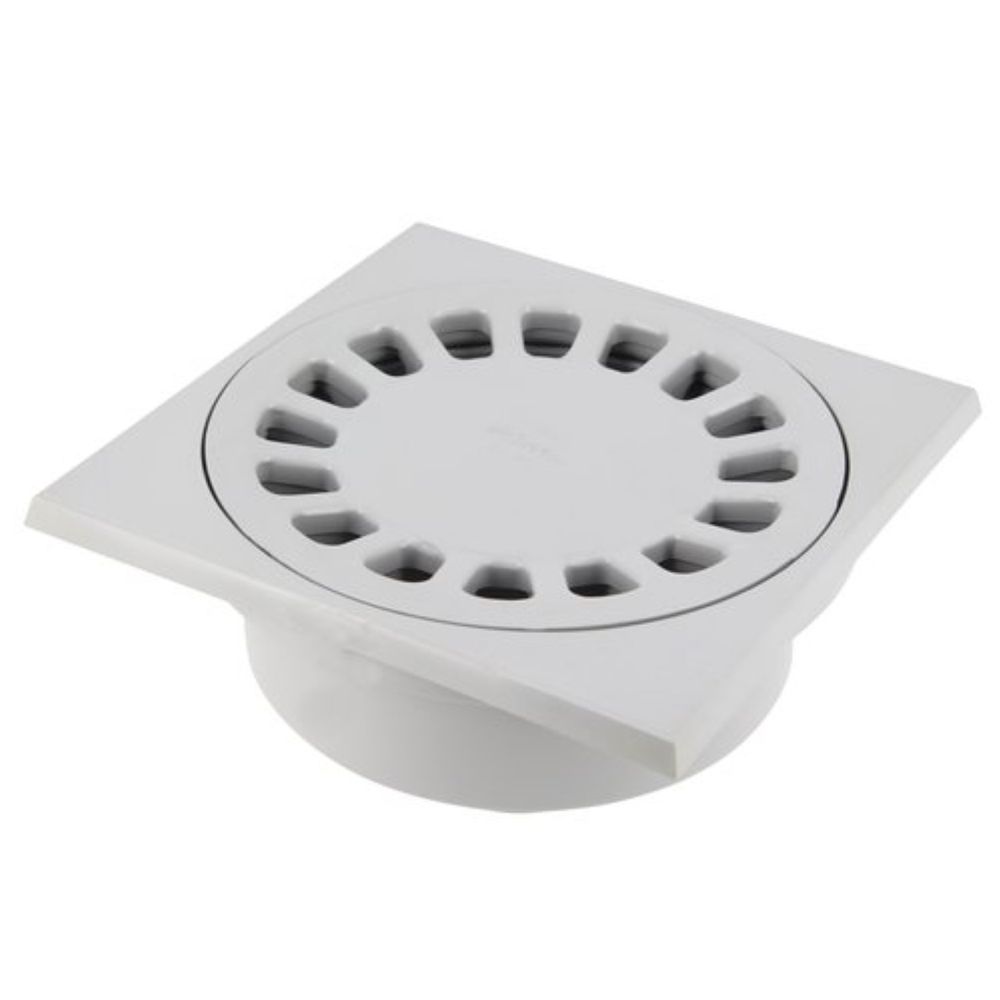

PVC BELL TRAP 20X20 CM LIGHT GREY Ø75MM

Code	KR2020LG
Code	KR2020LG
Brand	Nicoll
Reference	4764
Unit	pieces
Product model	Bell grille PVC
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herstal Hoogstraten Oostakker Tielt Zedelgem
Description	The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg. Full description
Documents	Technical data sheet

Availablility

The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓ Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Application

For the drainage of excess surface water on terraces, courtyards, basements, garages, laundry rooms, technical rooms, industrial areas, etc.

Technical specifications

(Everything you should know)

Product type	Bell grille PVC
Raw material	PVC
Colour	Light grey
Load class	A15
Certificate	Uncertified
Shape	Square

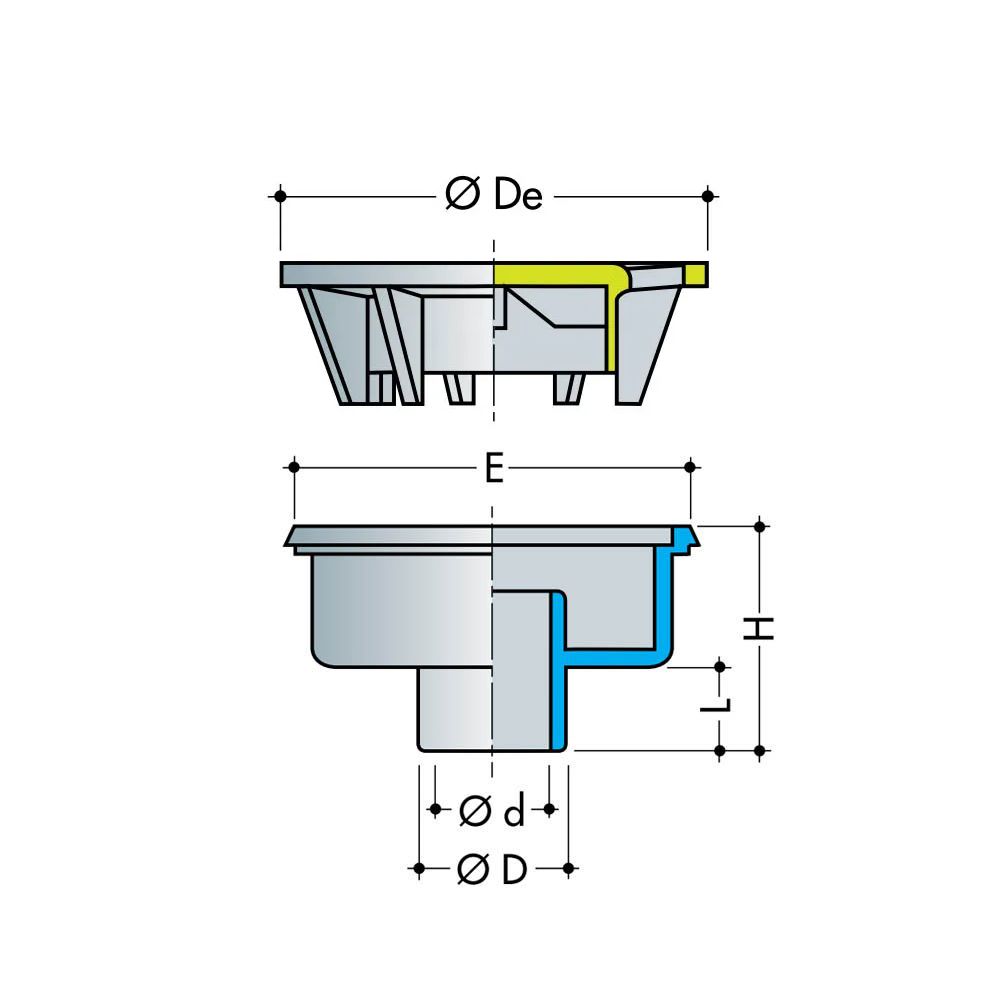

Male spigot Ø (mm)	75mm

Female socket Ø (mm)	63mm
E (mm)	200mm
De (mm)	179mm
H (mm)	110mm
Water trap (mm)	19,5mm
L (mm)	45mm

Product type	Bell grille PVC
Raw material	PVC
Colour	Light grey
Load class	A15
Certificate	Uncertified
Shape	Square
Male spigot Ø (mm)	75mm
Female socket Ø (mm)	63mm
E (mm)	200mm
De (mm)	179mm
H (mm)	110mm
Water trap (mm)	19,5mm
L (mm)	45mm
