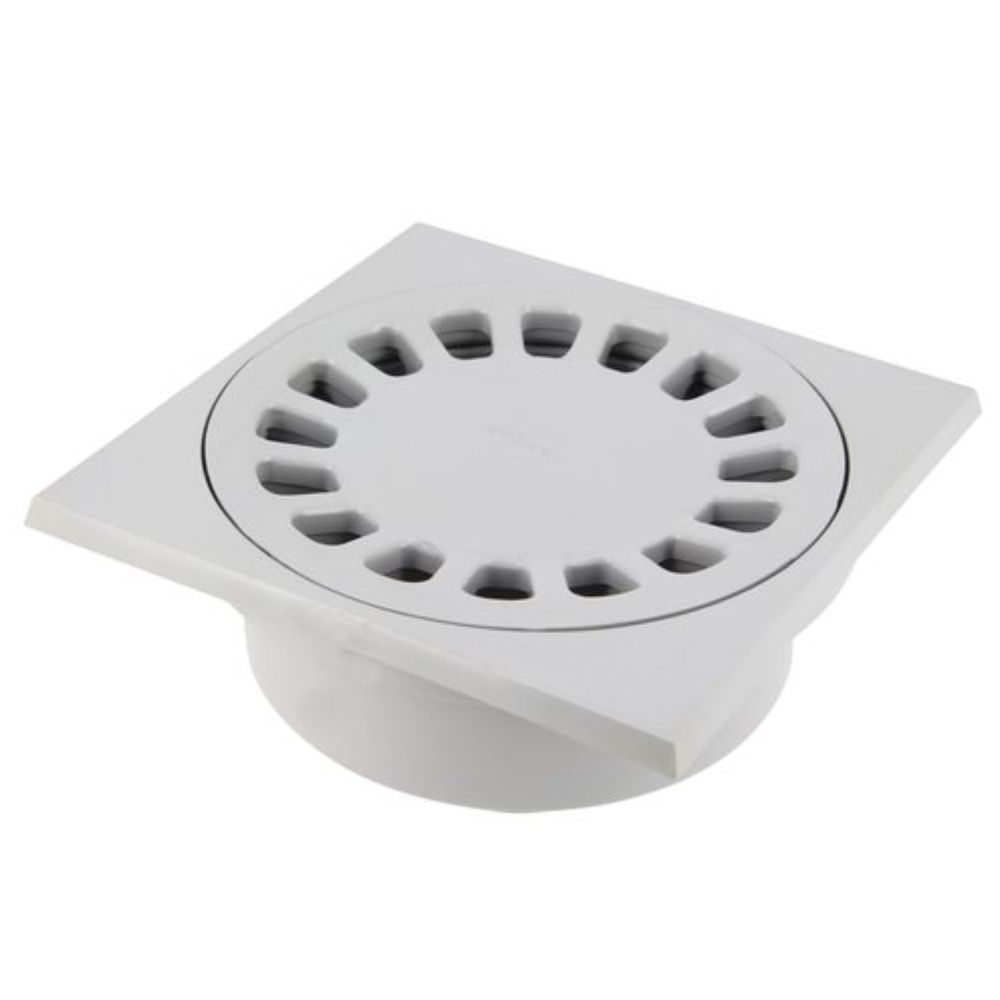

PVC BELL TRAP 25X25 CM LIGHT GREY Ø90MM
PVC BELL TRAP 25X25 CM LIGHT GREY Ø90MM
| Code | KR2525LG |
| Code | KR2525LG |
| Brand | Nicoll |
| Reference | 4792 |
| Unit | pieces |
| Product model | Bell grille PVC |
| Availablility |
Availablility
|
| Description |
The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg. |
| Documents |
Availablility
-
Aartselaar
-
Geel
-
Hamme
-
Hoogstraten
-
Oostakker
-
Tielt
-
Zedelgem
The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg.
Application
For the drainage of excess surface water on terraces, courtyards, basements, garages, laundry rooms, technical rooms, industrial areas, etc.

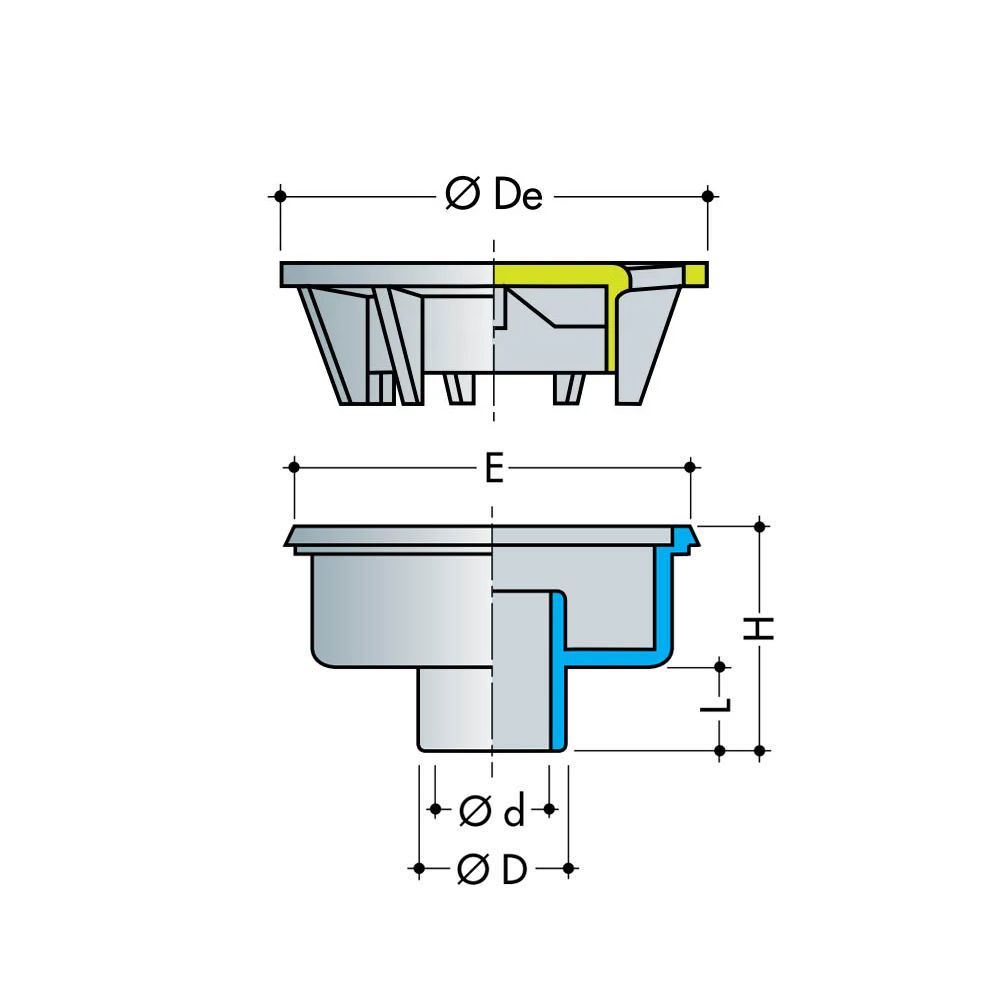

Technical specifications
(Everything you should know)| Product type | Bell grille PVC |
| Raw material | PVC |
| Colour | Light grey |
| Load class | A15 |
| Certificate | Uncertified |
| Shape | Square |
| Male spigot Ø (mm) | 90mm |
| Female socket Ø (mm) | 80mm |
| E (mm) | 250mm |
| De (mm) | 229mm |
| H (mm) | 134mm |
| Water trap (mm) | 26mm |
| L (mm) | 52mm |
| Product type | Bell grille PVC |
| Raw material | PVC |
| Colour | Light grey |
| Load class | A15 |
| Certificate | Uncertified |
| Shape | Square |
| Male spigot Ø (mm) | 90mm |
| Female socket Ø (mm) | 80mm |
| E (mm) | 250mm |
| De (mm) | 229mm |
| H (mm) | 134mm |
| Water trap (mm) | 26mm |
| L (mm) | 52mm |
