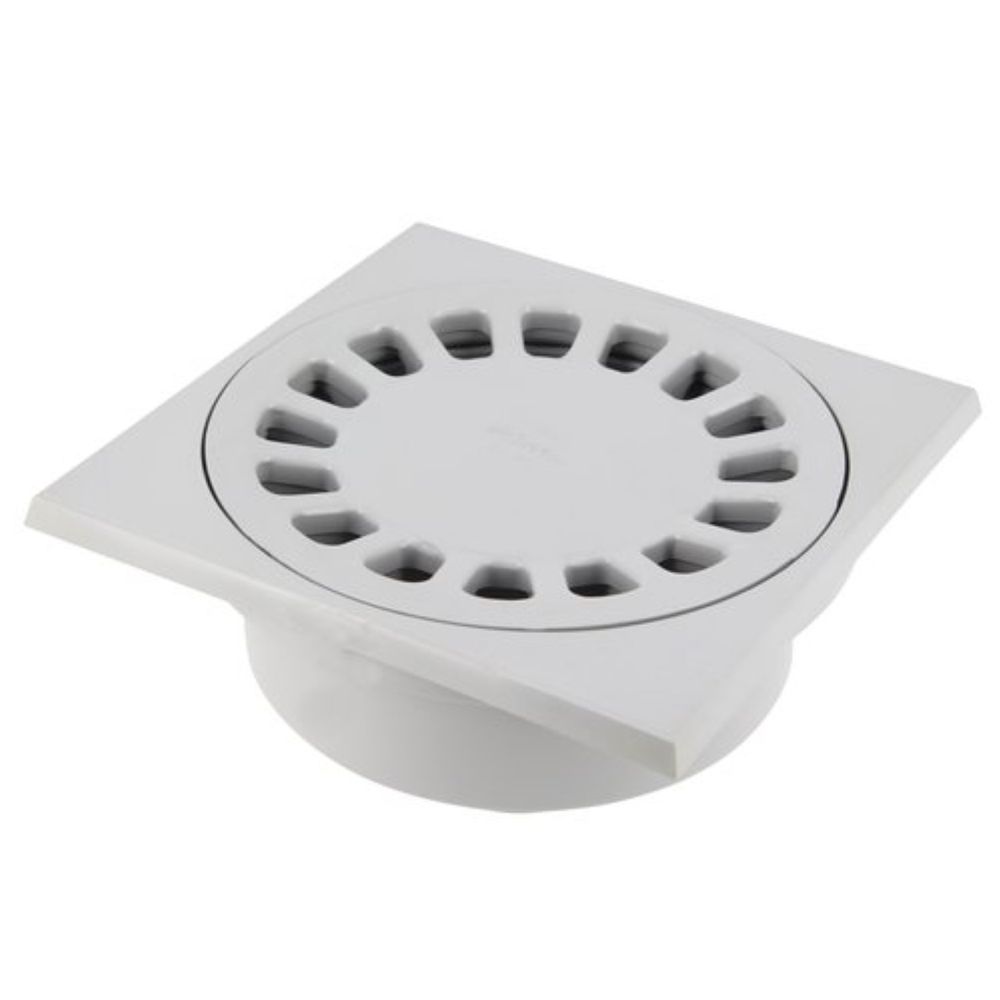

PVC BELL TRAP 30X30 CM LIGHT GREY Ø110MM

Code	KR3030LG
Code	KR3030LG
Brand	Nicoll
Reference	4861
Unit	pieces
Product model	Bell grille PVC
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Zedelgem
Description	The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg. Full description
Documents	Technical data sheet

Availablility

The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a vertical outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes, except KR1515: 800 kg.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓ Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Application

For the drainage of excess surface water on terraces, courtyards, basements, garages, laundry rooms, technical rooms, industrial areas, etc.

Technical specifications

(Everything you should know)

Product type	Bell grille PVC
Raw material	PVC
Colour	Light grey
Load class	A15
Certificate	Uncertified
Shape	Square
Male spigot Ø (mm)	110mm

Female socket Ø (mm)	100mm

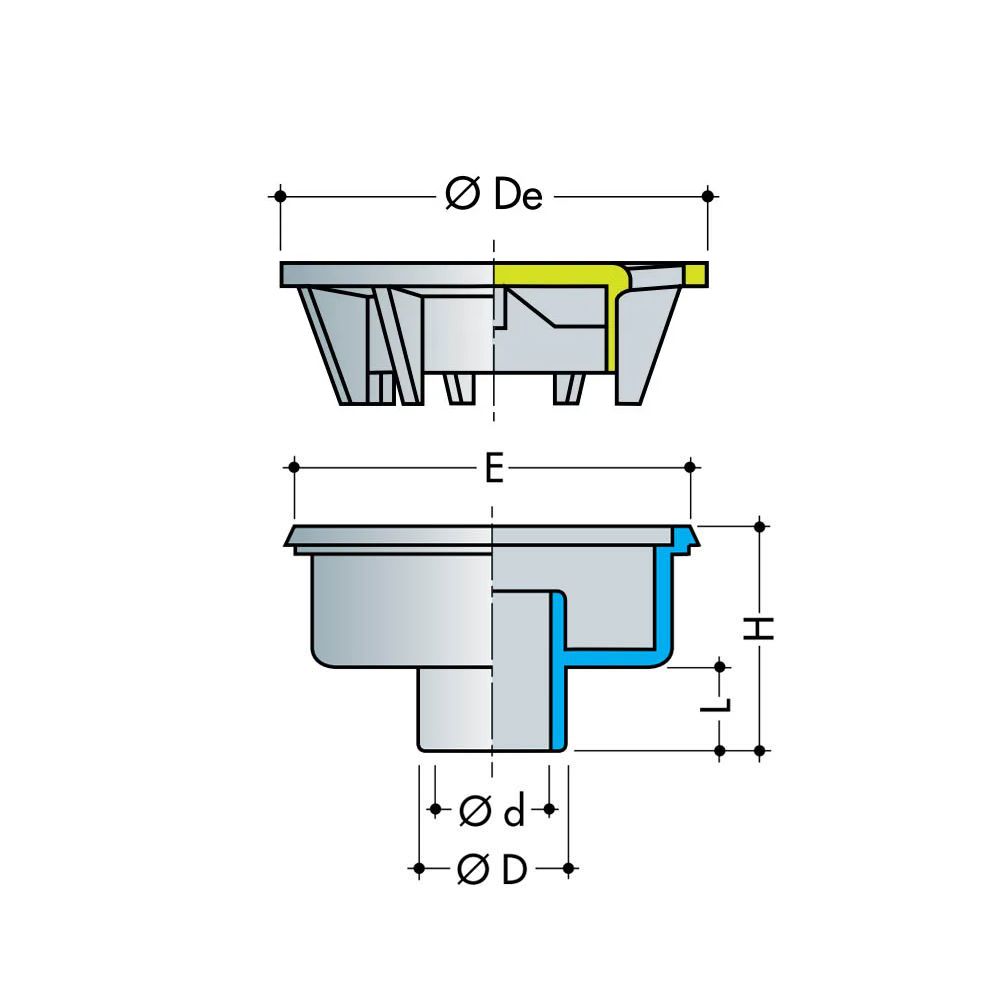

E (mm)	300mm
De (mm)	230mm
H (mm)	183mm
Water trap (mm)	50mm
L (mm)	61mm

Product type	Bell grille PVC
Raw material	PVC
Colour	Light grey
Load class	A15
Certificate	Uncertified
Shape	Square
Male spigot Ø (mm)	110mm
Female socket Ø (mm)	100mm
E (mm)	300mm
De (mm)	230mm
H (mm)	183mm
Water trap (mm)	50mm
L (mm)	61mm
