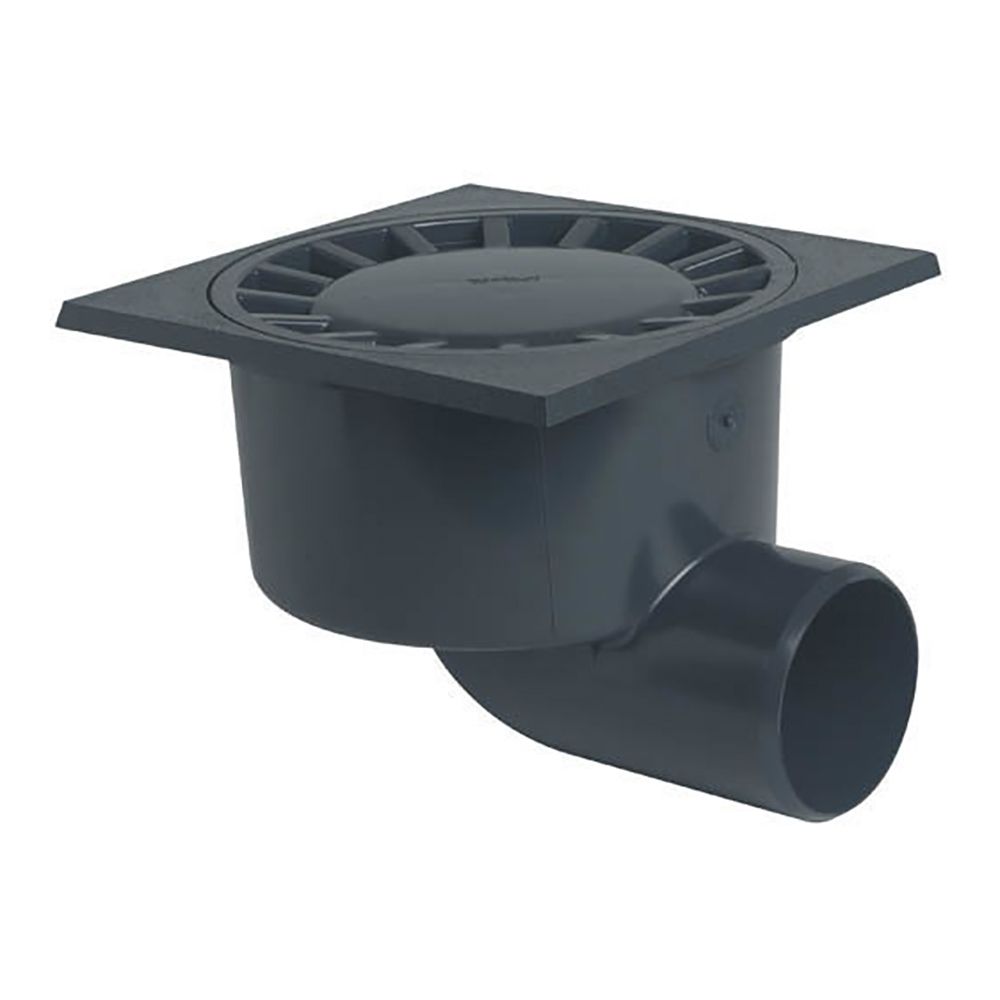

PVC BELL TRAP SIDE OUTLET 300X300MM Ø100MM
PVC BELL TRAP SIDE OUTLET 300X300MM Ø100MM
| Code | KRZ3030 |
| Code | KRZ3030 |
| Brand | Nicoll |
| Reference | 3895 |
| Unit | pieces |
| Product model | Bell grille PVC |
| Availablility |
Availablility
|
| Description |
The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a horizontal outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes |
| Documents |
Availablility
-
Aartselaar
-
Geel
-
Herent
-
Hoogstraten
-
Oostakker
-
Zedelgem
The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a horizontal outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)The floor drains with trap are made of UV-resistant PVC. The unit is designed to be built in and is fitted with a square base plate with a horizontal outlet. The bell grille is reinforced and removable. Load capacity up to 1.5 tonnes
Application
For the drainage of excess surface water on terraces, courtyards, basements, garages, laundry rooms, technical rooms, industrial areas, etc.
Technical specifications
(Everything you should know)| Product type | Bell grille PVC |
| Raw material | PVC |
| Colour | Dark grey |
| Load class | A15 |
| Certificate | Uncertified |
| Shape | Square |
| Male spigot Ø (mm) | 100mm |
| Female socket Ø (mm) | 90mm |

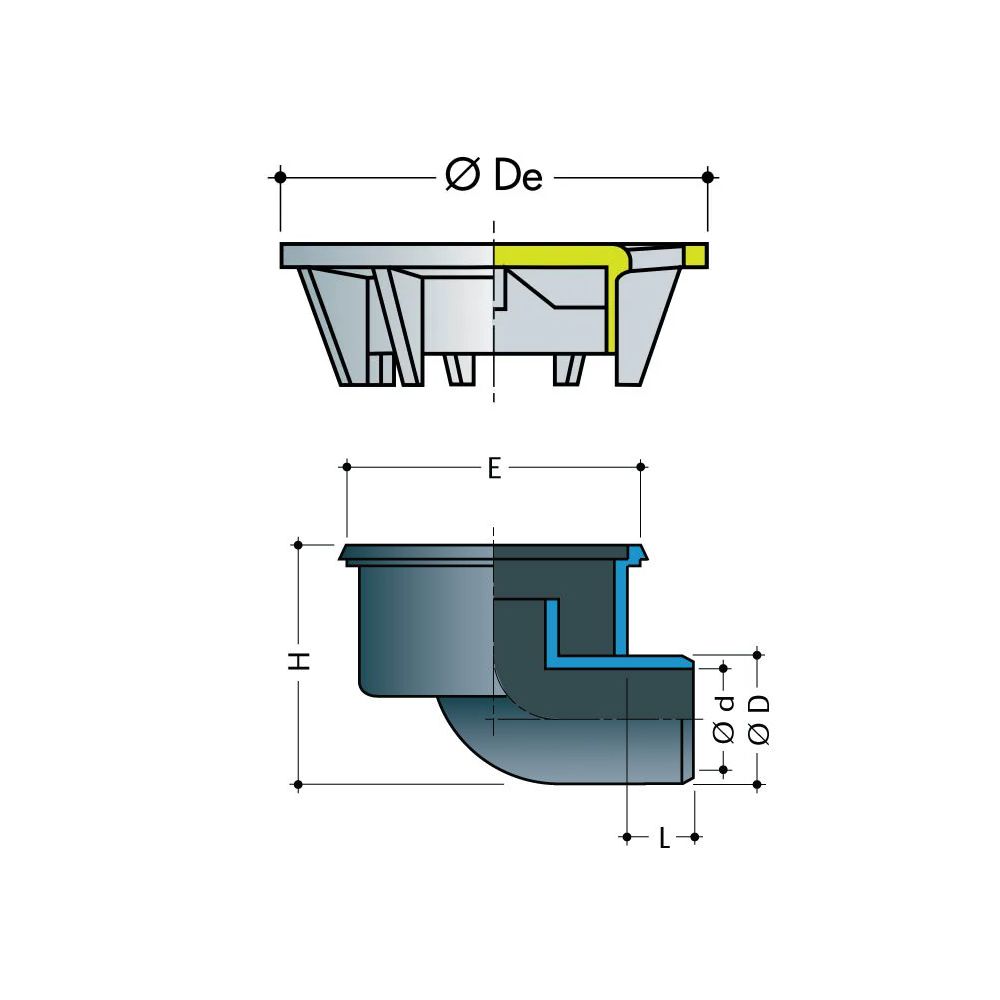

| E (mm) | 300mm |
| De (mm) | 230mm |
| H (mm) | 192mm |
| Water trap (mm) | 50mm |
| L (mm) | 57mm |
| Product type | Bell grille PVC |
| Raw material | PVC |
| Colour | Dark grey |
| Load class | A15 |
| Certificate | Uncertified |
| Shape | Square |
| Male spigot Ø (mm) | 100mm |
| Female socket Ø (mm) | 90mm |
| E (mm) | 300mm |
| De (mm) | 230mm |
| H (mm) | 192mm |
| Water trap (mm) | 50mm |
| L (mm) | 57mm |
