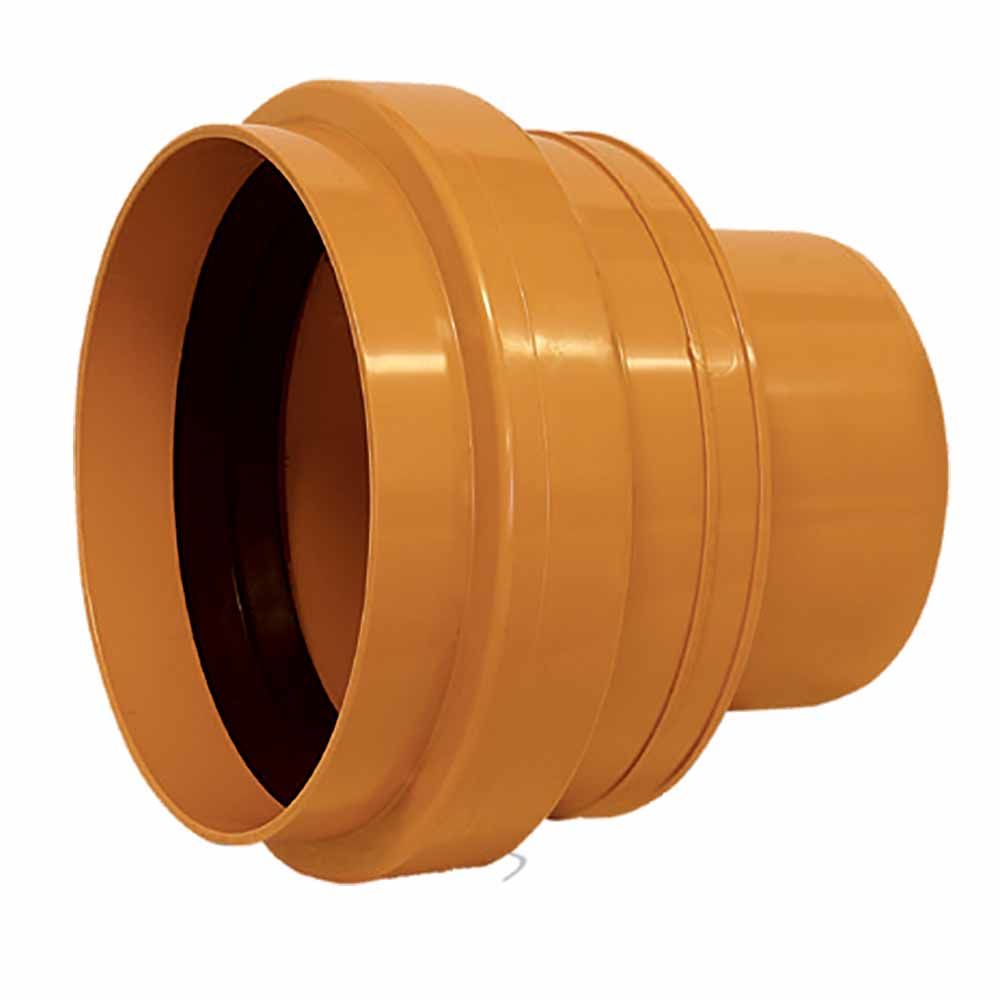

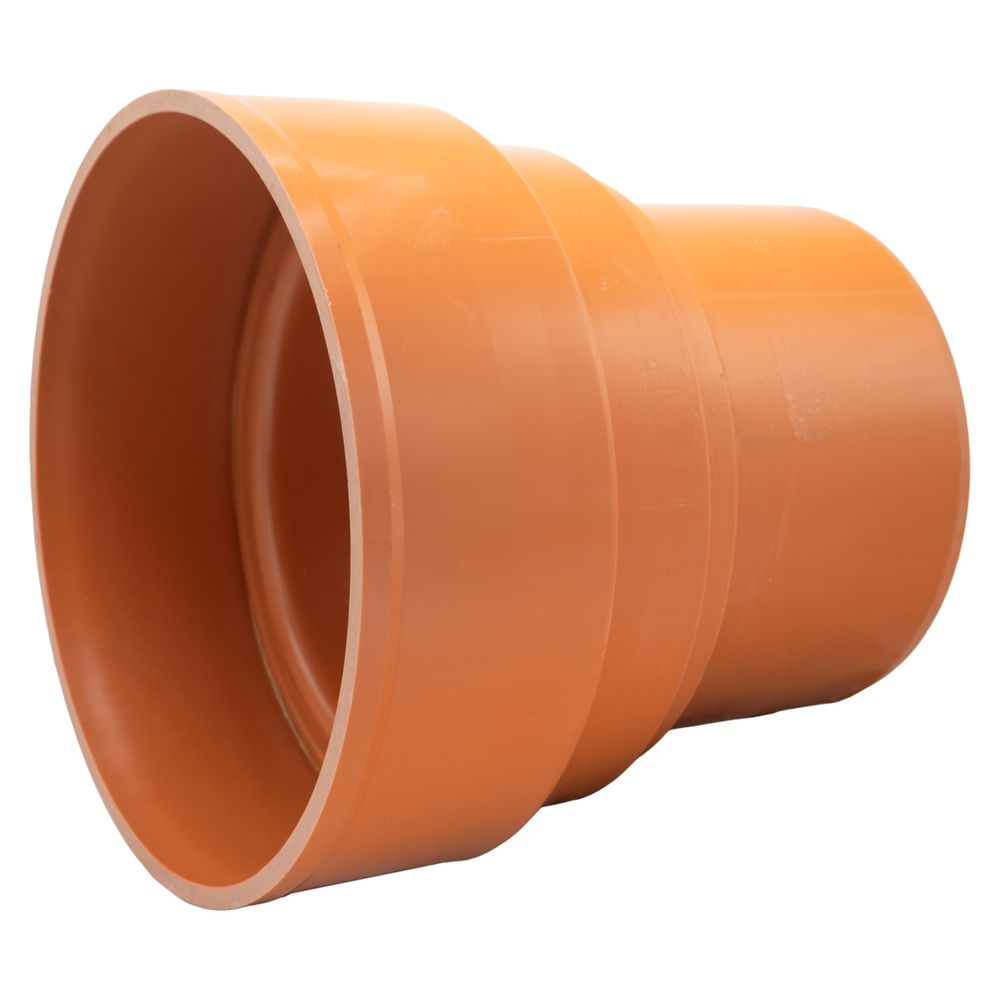

PVC TRANS. PC. PVC 250/OVER CLAY SP. 299MM (250MM)

Code	GRE250
Code	GRE250
Reference	19443
Unit	pieces
Product model	Transition piece PVC / clay pipe
Availablility	Availablility Farciennes Geel Hasselt Herent Tielt
Description	PVC transition fitting for connection to vitrified clay (GRES) pipe (standard series) and PVC/PP pipe. Fits over the spigot end of the clay pipe (over the existing rubber seal) and features a PVC spigot end for further connection to PVC/PP pipe or fitting. If the clay pipe has been cut, a P-ring (standard series) can be used. Full description
Documents	Technical data sheet

Availablility

PVC transition fitting for connection to vitrified clay (GRES) pipe (standard series) and PVC/PP pipe. Fits over the spigot end of the clay pipe (over the existing rubber seal) and features a PVC spigot end for further connection to PVC/PP pipe or fitting. If the clay pipe has been cut, a P-ring (standard series) can be used.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓ Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

Description

(In detail)

Technical specifications

(Everything you should know)

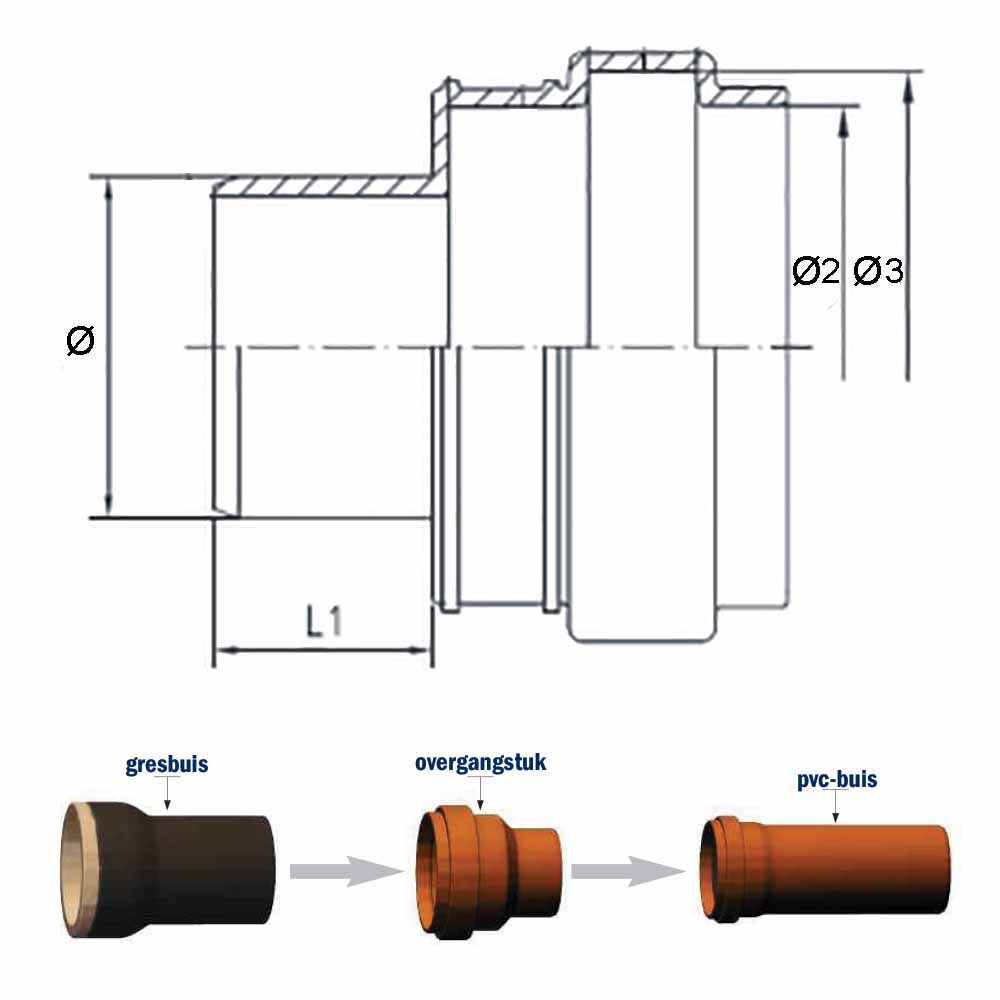

Product type	Transition piece PVC / clay pipe
Diameter Ø (mm)	250mm
Diameter Ø 2 (mm)	299mm
Raw material	PVC
Colour	Reddish brown

Connection	Single socket
Length (mm)	334mm
Diameter Ø 3 (mm)	317,5mm
L1 (mm)	125mm

Product type	Transition piece PVC / clay pipe
Diameter Ø (mm)	250mm
Diameter Ø 2 (mm)	299mm
Raw material	PVC
Colour	Reddish brown
Connection	Single socket
Length (mm)	334mm
Diameter Ø 3 (mm)	317,5mm
L1 (mm)	125mm
