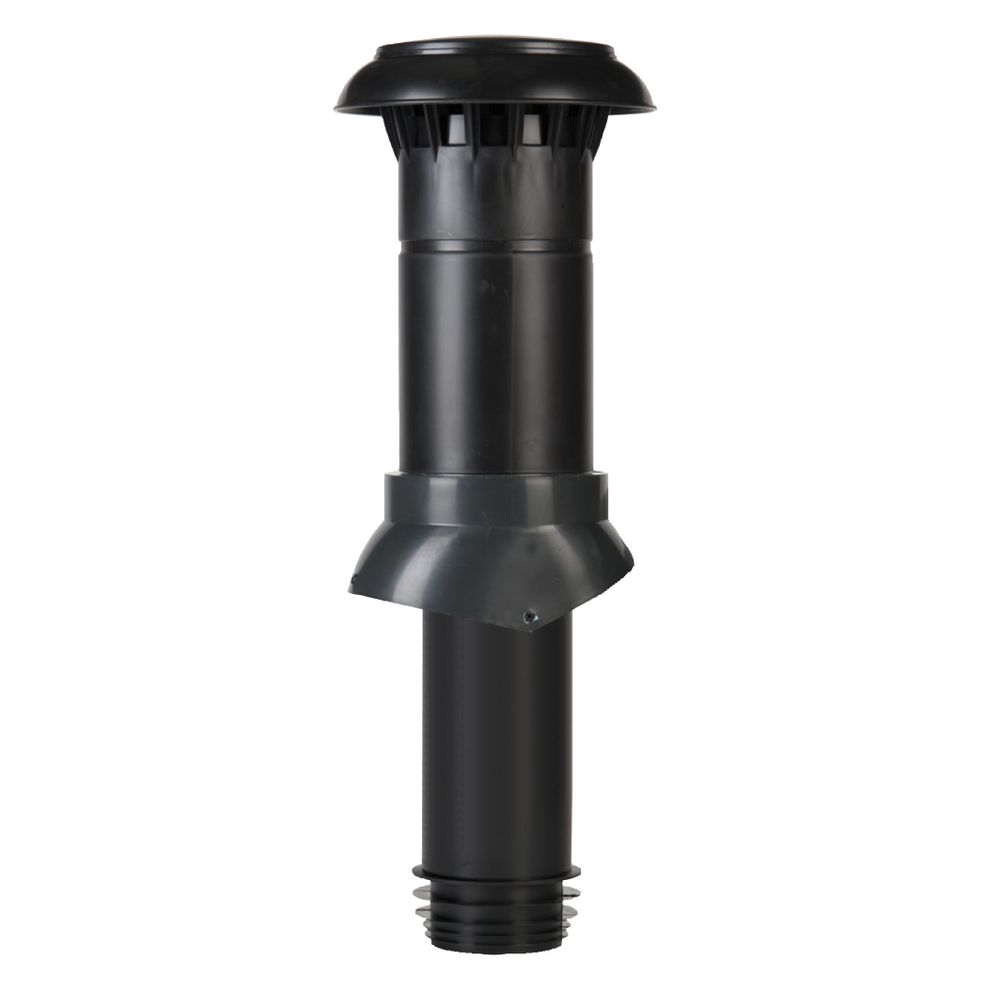

VENT-ALU 3000 DW SLOPED ROOF + FX HINGE CAP 90/100
VENT-ALU 3000 DW SLOPED ROOF + FX HINGE CAP 90/100
| Code | VENT3000DWSD100 |
| Code | VENT3000DWSD100 |
| Brand | Anjo |
| Reference | 45098 |
| Unit | pieces |
| Product model | Roof penetration double-walled PP |
| Collection | Vent-Alu 3000 |
| Availablility |
Availablility
|
| Description |
The very compact Vent-Alu 3000 pitched roof vent with PP top cap fits any universal tile adaptor and is used on tiled roofs. The vent is supplied as standard with a hinged cap. Thanks to its shape, the PP top cap provides a very high ventilation capacity. |
| Documents |
Availablility
-
Geel
-
Herent
The very compact Vent-Alu 3000 pitched roof vent with PP top cap fits any universal tile adaptor and is used on tiled roofs. The vent is supplied as standard with a hinged cap. Thanks to its shape, the PP top cap provides a very high ventilation capacity.
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)The very compact Vent-Alu 3000 pitched roof vent with PP top cap fits any universal tile adaptor and is used on tiled roofs. The vent is supplied as standard with a hinged cap. Thanks to its shape, the PP top cap provides a very high ventilation capacity.
Technical specifications
(Everything you should know)| Product type | Roof penetration double-walled PP |
| Diameter Ø (mm) | 90mm |
| Raw material | PP |
| Colour | Black |
| Version | Double-walled |
| Height (mm) | 361mm |
| Minimum roof pitch (°) | 25° |
| Collection | Vent-Alu 3000 |
| Maximum roof pitch (°) | 45° |
| Insulation material | Polyurethane (PU) |
| Max. pipe diameter (mm) | 100mm |
| Min. pipe diameter (mm) | 90mm |
| Product type | Roof penetration double-walled PP |
| Diameter Ø (mm) | 90mm |
| Raw material | PP |
| Colour | Black |
| Version | Double-walled |
| Height (mm) | 361mm |
| Minimum roof pitch (°) | 25° |
| Collection | Vent-Alu 3000 |
| Maximum roof pitch (°) | 45° |
| Insulation material | Polyurethane (PU) |
| Max. pipe diameter (mm) | 100mm |
| Min. pipe diameter (mm) | 90mm |
