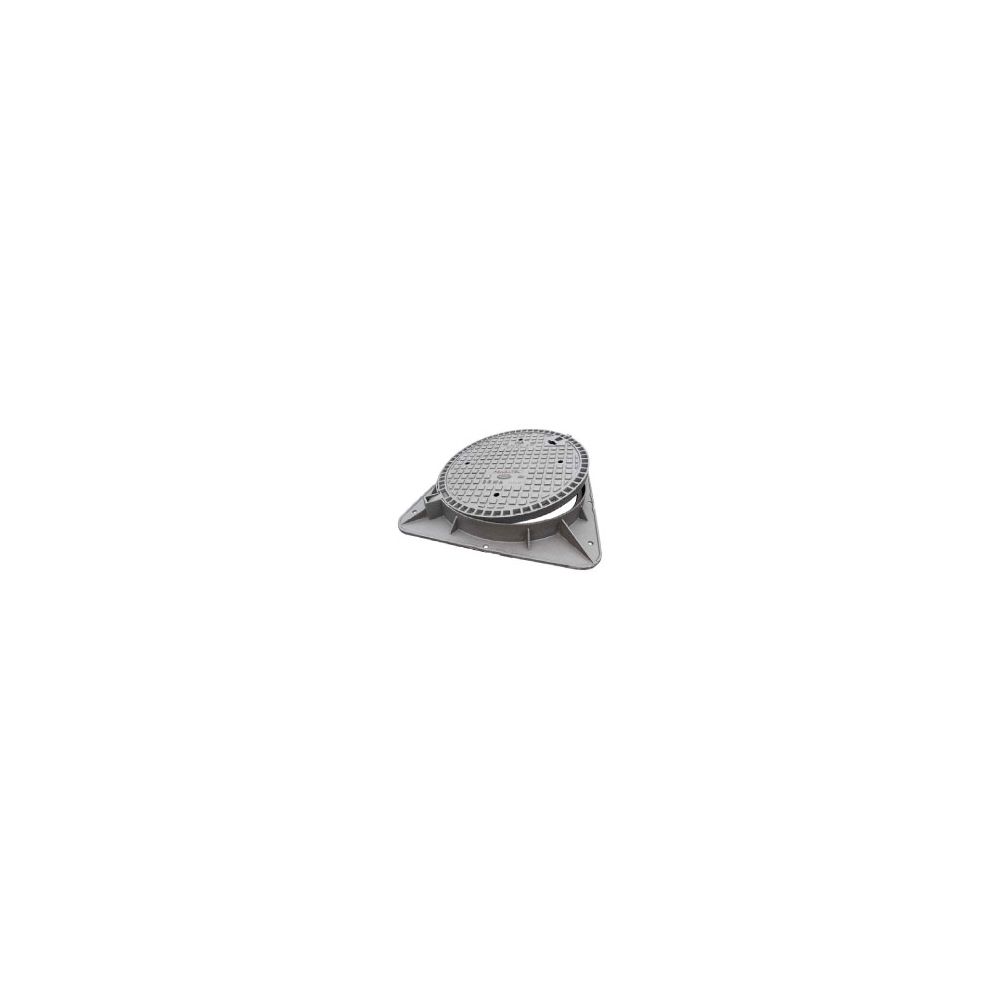

VIA6L COPRO D400: 950x950MM/DN700MM H=100MM

VIA6L COPRO D400: 950x950MM/DN700MM H=100MM

Code VIA6L
Code VIA6L
Brand EJ
Reference 19032
Unit pieces
Product model Cast Iron Road Cover
Availablility

Availablility

  • Farciennes
  • Herstal
  • Marche-en-Famenne
  • Zedelgem
Description

Material: cast iron EN GJS 500-7 Test load: 400 kN in accordance with EN 124 Protective coating: black, water-based, non-toxic and environmentally friendly paint Frame: monoblock casting, equipped with Ø 16 mm anchoring holes Cover: hinged, anti-slip relief in “chocolate square” pattern, fitted with a keyhole for operation, fully removable at 120° opening angle Hinge: locking at 90° prevents accidental closing, fitted with identification mark “S”

Full description
Documents

Availablility

  • Farciennes
  • Herstal
  • Marche-en-Famenne
  • Zedelgem

Material: cast iron EN GJS 500-7 Test load: 400 kN in accordance with EN 124 Protective coating: black, water-based, non-toxic and environmentally friendly paint Frame: monoblock casting, equipped with Ø 16 mm anchoring holes Cover: hinged, anti-slip relief in “chocolate square” pattern, fitted with a keyhole for operation, fully removable at 120° opening angle Hinge: locking at 90° prevents accidental closing, fitted with identification mark “S”

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)
  • Material: cast iron EN GJS 500-7
  • Test load: 400 kN in accordance with EN 124
  • Protective coating: black, water-based, non-toxic and environmentally friendly paint
  • Frame: monoblock casting, equipped with Ø 16 mm anchoring holes
  • Cover: hinged, anti-slip relief in “chocolate square” pattern, fitted with a keyhole for operation, fully removable at 120° opening angle
  • Hinge: locking at 90° prevents accidental closing, fitted with identification mark “S”

Technical specifications

(Everything you should know)
Product type Cast Iron Road Cover
Width (mm) 950mm
Length (mm) 950mm
Load class D400
Shape Round
Certificate Copro
Raw material Cast iron
Certificate norm EN 124
Weight (kg) 120,8kg
Height (mm) 100mm
Cover weight (kg) 70,9kg
Clear opening diameter Ø (mm) 700mm
Label Zonder/Sans
Function Hydraulic seal
Product type Cast Iron Road Cover
Width (mm) 950mm
Length (mm) 950mm
Load class D400
Shape Round
Certificate Copro
Raw material Cast iron
Certificate norm EN 124
Weight (kg) 120,8kg
Height (mm) 100mm
Cover weight (kg) 70,9kg
Clear opening diameter Ø (mm) 700mm
Label Zonder/Sans
Function Hydraulic seal
