C. IR. COV. C250 FSØ160 COØ160 RBA160 DWA/EU COPRO

Code	DWA160
Code	DWA160
Reference	8721
Unit	pieces

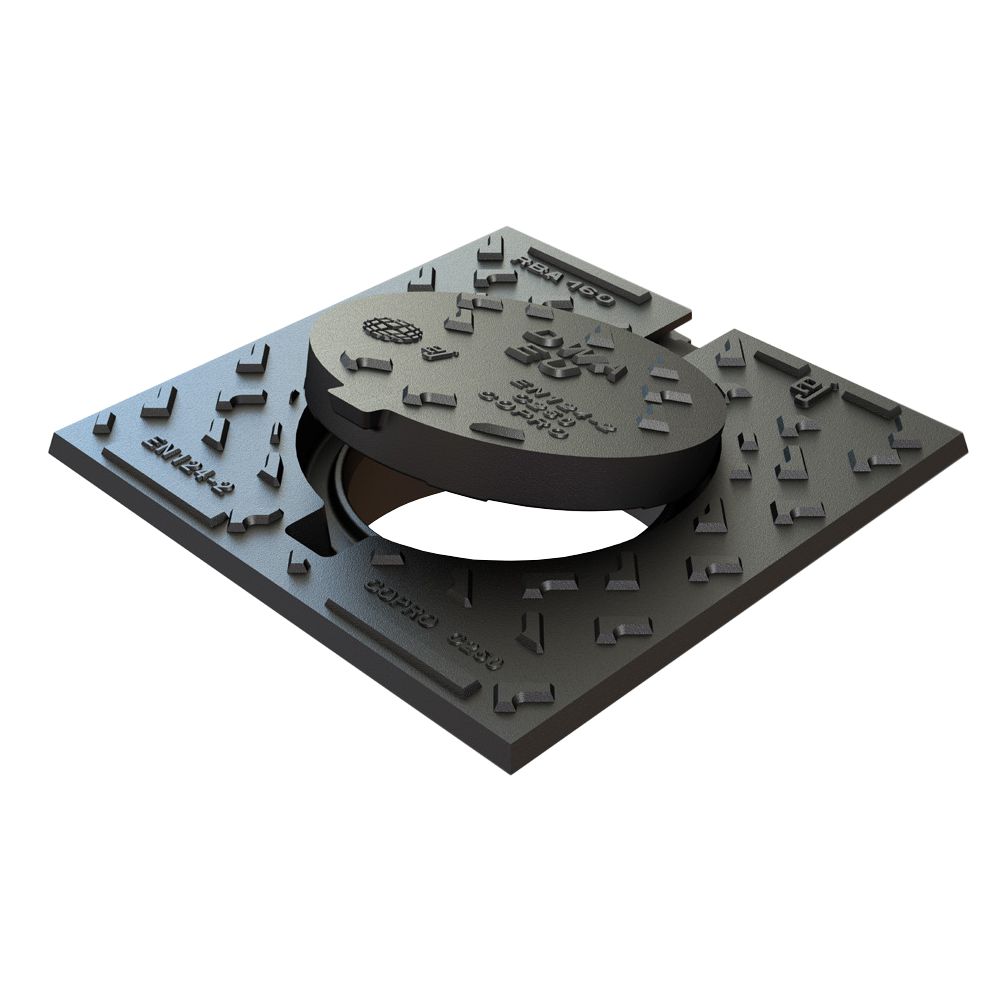

Product model	Lid cast iron
Availablility	Availablility Aartselaar Farciennes Geel Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Description	House connection cover with hydraulic slot, equipped with a skirt for installation over the PVC pipe. Hydraulic slot (equal to or greater than) 6 mm. Square frame / circular cover. Installation adjustable up to ±4°. Full description
Documents	Technical data sheet

Availablility

House connection cover with hydraulic slot, equipped with a skirt for installation over the PVC pipe. Hydraulic slot (equal to or greater than) 6 mm. Square frame / circular cover. Installation adjustable up to ±4°.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

House connection cover with hydraulic slot, equipped with a skirt for installation over the PVC pipe.

Hydraulic slot (equal to or greater than) 6 mm.
Square frame / circular cover.
Installation adjustable up to ±4°.

Pros and cons

(According to our consultants)

Simplicity: installed directly onto the pipe.
Safety: hinged cover that cannot be removed after embedding.
Comfort: the hydraulic slot prevents odour rise.

Technical specifications

(Everything you should know)

Product type	Lid cast iron
Width (mm)	286mm
Length (mm)	286mm
Load class	C250
Shape	Square
Certificate	Copro
Raw material	Cast iron

Certificate norm	EN 124-1
Weight (kg)	9kg
Height (mm)	90mm
Lid properties	Hydraulic seal
Clear opening diameter Ø (mm)	150mm
Label	DWA

Product type	Lid cast iron
Width (mm)	286mm
Length (mm)	286mm
Load class	C250
Shape	Square
Certificate	Copro
Raw material	Cast iron
Certificate norm	EN 124-1
Weight (kg)	9kg
Height (mm)	90mm
Lid properties	Hydraulic seal
Clear opening diameter Ø (mm)	150mm
Label	DWA
