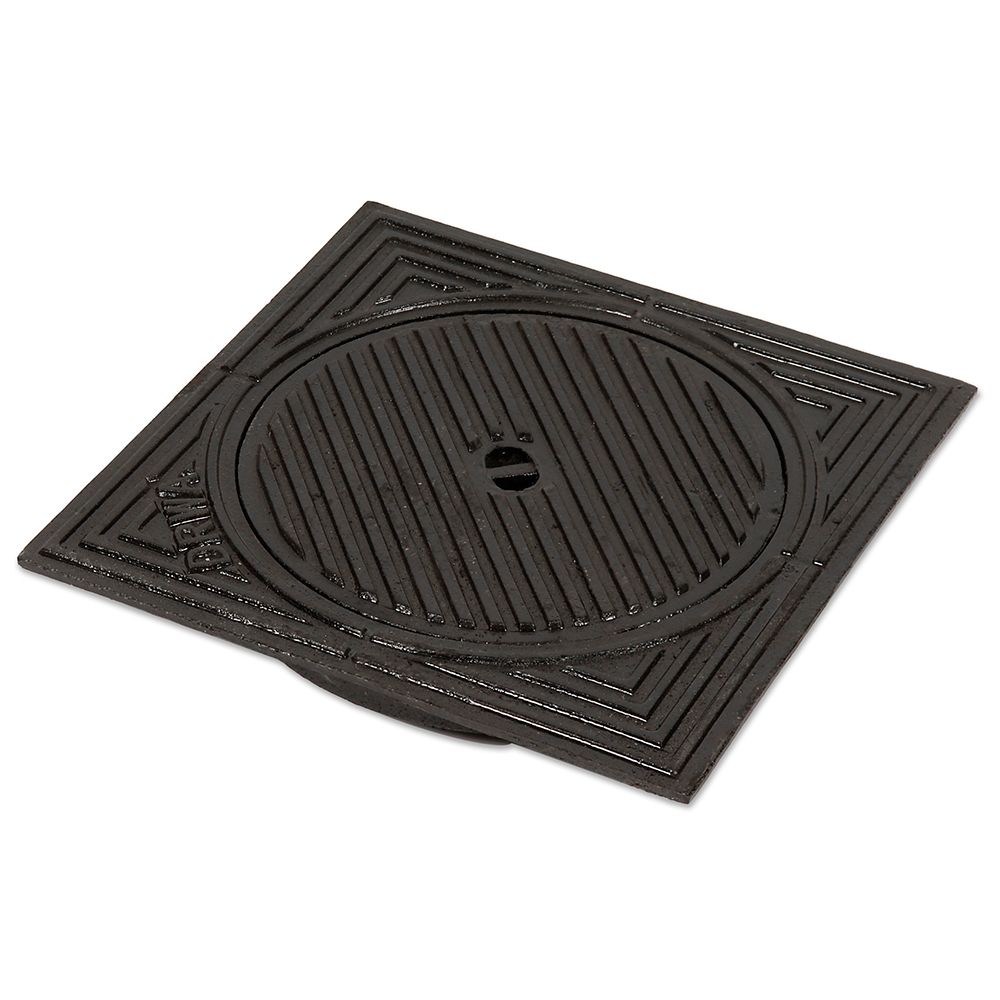

CAST IRON COVER FS=395X395 CO=Ø315 DOUBLE-TOOTH

Code	STZ315D
Code	STZ315D
Reference	1753
Unit	pieces
Product model	Toothed cover cast iron
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Description	Cover with a double tongue-and-groove profile, greased to ensure hydraulic watertightness. Perfect fit on PVC and PP inspection chambers (not on the collar). Provided with a bituminous coating to prevent corrosion. A prefabricated concrete seating ring can also be used to provide the necessary support for the cover. Suitable for pedestrian traffic only. Frame supplied as standard with DRWA marking. Full description
Documents	Technical data sheet

Availablility

Cover with a double tongue-and-groove profile, greased to ensure hydraulic watertightness. Perfect fit on PVC and PP inspection chambers (not on the collar). Provided with a bituminous coating to prevent corrosion. A prefabricated concrete seating ring can also be used to provide the necessary support for the cover. Suitable for pedestrian traffic only. Frame supplied as standard with DRWA marking.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Cover with a double tongue-and-groove profile, greased to ensure hydraulic watertightness.

Perfect fit on PVC and PP inspection chambers (not on the collar).
Provided with a bituminous coating to prevent corrosion.
A prefabricated concrete seating ring can also be used to provide the necessary support for the cover.
Suitable for pedestrian traffic only.
Frame supplied as standard with DRWA marking.

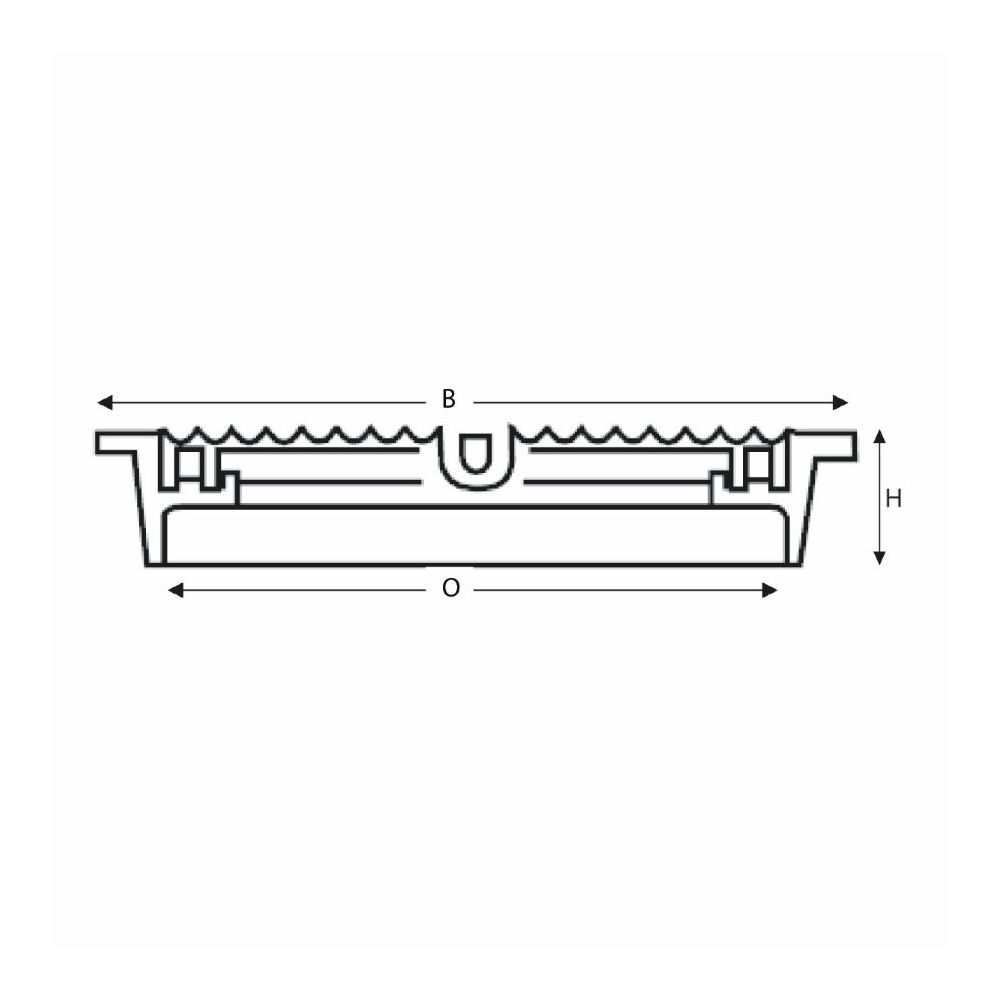

Technical specifications

(Everything you should know)

Product type	Toothed cover cast iron
Width (mm)	395mm
Length (mm)	395mm
Load class	A15
Shape	Round, Square

Certificate	Uncertified
Raw material	Cast iron
Height (mm)	85mm
Lid properties	Hydraulic seal
Clear opening diameter Ø (mm)	315mm

Product type	Toothed cover cast iron
Width (mm)	395mm
Length (mm)	395mm
Load class	A15
Shape	Round, Square
Certificate	Uncertified
Raw material	Cast iron
Height (mm)	85mm
Lid properties	Hydraulic seal
Clear opening diameter Ø (mm)	315mm
