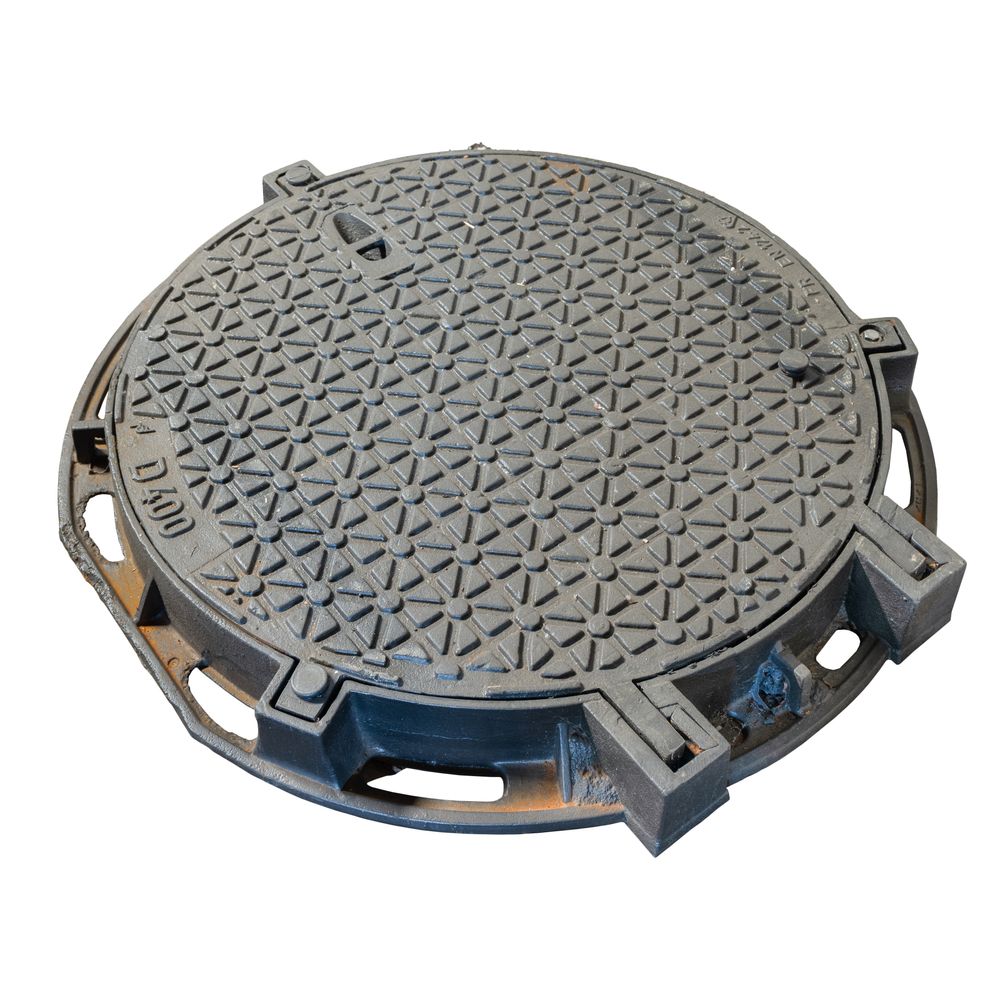

CA. IR. COV. D400 FSØ1000 COØ800 H100 MEDITERRANEE
CA. IR. COV. D400 FSØ1000 COØ800 H100 MEDITERRANEE
| Code | IJCOH |
| Code | IJCOH |
| Reference | 19905 |
| Unit | pieces |
| Product model | Cast Iron Road Cover |
| Availablility |
|
| Description |
Cast iron EN-GJS-500-7 Bituminous coating Neoprene damping ring Frame provided with slots and openings for anchoring Locking with a stainless steel bolt Opening aid with stainless steel spring Splash-proof |
| Documents |
-
Hasselt
-
Oostakker
Cast iron EN-GJS-500-7 Bituminous coating Neoprene damping ring Frame provided with slots and openings for anchoring Locking with a stainless steel bolt Opening aid with stainless steel spring Splash-proof
Become a professional online customer
- ✓ Access to your net prices
- ✓ Exclusive online promotions
- ✓ Tracking of your orders, deliveries, and invoices
- ✓ Insight into the currently available stock per branch
- ✓ 1% additional online order discount on top of your net prices
Product information
(Well informed)Description
(In detail)- Cast iron EN-GJS-500-7
- Bituminous coating
- Neoprene damping ring
- Frame provided with slots and openings for anchoring
- Locking with a stainless steel bolt
- Opening aid with stainless steel spring
- Splash-proof
Technical specifications
(Everything you should know)| Product type | Cast Iron Road Cover |
| Load class | D400 |
| Shape | Round |
| Certificate | Uncertified |
| Raw material | Cast iron |
| Weight (kg) | 148kg |
| Height (mm) | 100mm |
| Lid properties | Hinged cover |
| Clear opening diameter Ø (mm) | 800mm |
| Label | Zonder/Sans |
| Outer diameter Ø (mm) | 1000mm |
| Function | Hydraulic seal |
| Product type | Cast Iron Road Cover |
| Load class | D400 |
| Shape | Round |
| Certificate | Uncertified |
| Raw material | Cast iron |
| Weight (kg) | 148kg |
| Height (mm) | 100mm |
| Lid properties | Hinged cover |
| Clear opening diameter Ø (mm) | 800mm |
| Label | Zonder/Sans |
| Outer diameter Ø (mm) | 1000mm |
| Function | Hydraulic seal |
