CAST IRON COVER C250 FS=600X600 CO=480X480 H55

Code	IJC060060
Code	IJC060060
Reference	1714
Unit	pieces
Product model	Lid cast iron
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker Tielt Zedelgem
Description	Cast iron cover with a load class according to EN 124-1 – C250 (kN). Anti-slip cover with hydraulic locking system Cover fitted with a lifting recess With DRWA_EUP inscription Full description
Documents	Technical data sheet

Availablility

Cast iron cover with a load class according to EN 124-1 – C250 (kN). Anti-slip cover with hydraulic locking system Cover fitted with a lifting recess With DRWA_EUP inscription

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

Cast iron cover with a load class according to EN 124-1 – C250 (kN).

Anti-slip cover with hydraulic locking system
Cover fitted with a lifting recess

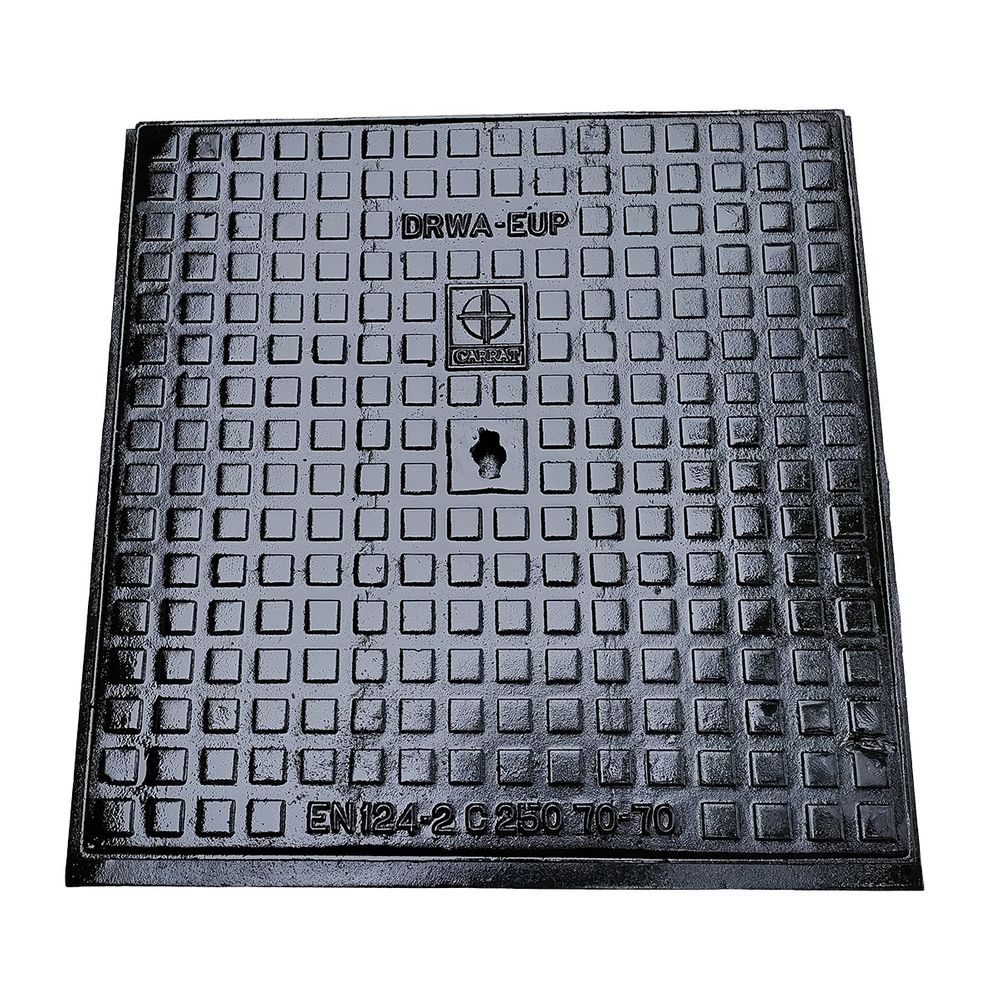

With DRWA_EUP inscription

Technical specifications

(Everything you should know)

Product type	Lid cast iron
Width (mm)	600mm
Length (mm)	600mm
Load class	C250
Shape	Square
Certificate	Uncertified
Raw material	Cast iron

Certificate norm	EN 124-1
Weight (kg)	36kg
Height (mm)	55mm
Lid properties	Hydraulic seal
Clear opening width (mm)	480mm
Clear opening length (mm)	480mm
