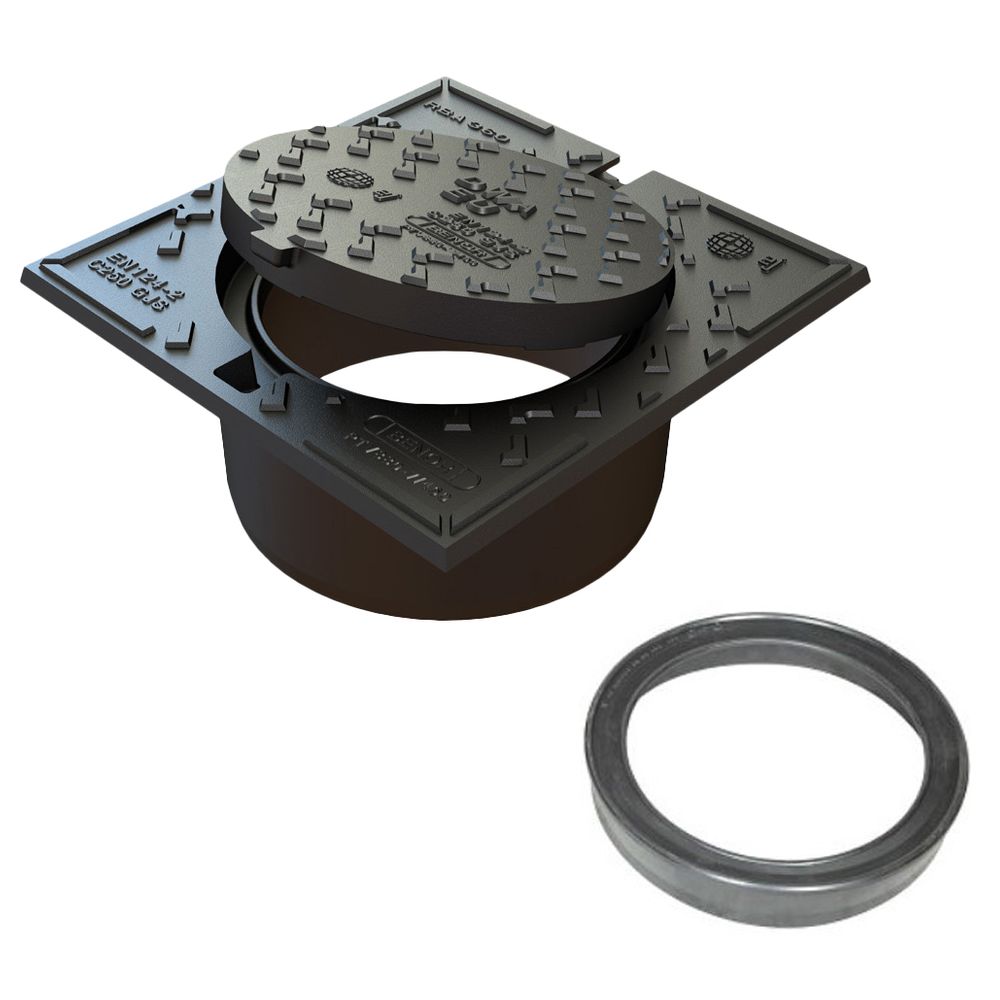

CAST IRON COVER C250 FSØ315 COØ315 RBA DWA COPRO

Code	DWA315
Code	DWA315
Reference	30078
Unit	pieces
Product model	Lid cast iron
Availablility	Availablility Aartselaar Farciennes Geel Hamme Hasselt Herent Herstal Hoogstraten Oostakker
Description	House connection cover with hydraulic slot, equipped with skirt and EPDM connection ring for connection into the PVC pipe. Hydraulic slot (equal to or greater than) 6 mm. Square frame / circular cover. Height-adjustable by means of elastomer rubber. Suitable for installation in concrete or asphalt. Painted with water-based black site paint in accordance with SB 250, version 4.1. Full description
Documents	Technical data sheet

Availablility

House connection cover with hydraulic slot, equipped with skirt and EPDM connection ring for connection into the PVC pipe. Hydraulic slot (equal to or greater than) 6 mm. Square frame / circular cover. Height-adjustable by means of elastomer rubber. Suitable for installation in concrete or asphalt. Painted with water-based black site paint in accordance with SB 250, version 4.1.

Full description

Technical data sheet

Become a professional online customer

✓ Access to your net prices
✓Exclusive online promotions
✓ Tracking of your orders, deliveries, and invoices
✓ Insight into the currently available stock per branch
✓ 1% additional online order discount on top of your net prices

Product information
|
Technical specifications
|
Other customers also bought

Product information

(Well informed)

Description

(In detail)

House connection cover with hydraulic slot, equipped with skirt and EPDM connection ring for connection into the PVC pipe.

Hydraulic slot (equal to or greater than) 6 mm.
Square frame / circular cover.
Height-adjustable by means of elastomer rubber.
Suitable for installation in concrete or asphalt.
Painted with water-based black site paint in accordance with SB 250, version 4.1.

Pros and cons

(According to our consultants)

Practical: connection to the PVC pipe by means of an EPDM ring that:

is easily height-adjustable;
prevents the ingress of dirt and parasites into the pipeline.

Safety: hinged cover that cannot be removed after embedding.

Comfort: the hydraulic slot prevents odour rise.

Technical specifications

(Everything you should know)

Product type	Lid cast iron
Width (mm)	355mm
Length (mm)	355mm
Load class	C250
Shape	Square
Certificate	BENOR
Raw material	Cast iron

Certificate norm	EN 124-1
Weight (kg)	17,5kg
Height (mm)	150mm
Inner diameter Ø (mm)	315mm
Clear opening diameter Ø (mm)	218mm
Label	DWA

Product type	Lid cast iron
Width (mm)	355mm
Length (mm)	355mm
Load class	C250
Shape	Square
Certificate	BENOR
Raw material	Cast iron
Certificate norm	EN 124-1
Weight (kg)	17,5kg
Height (mm)	150mm
Inner diameter Ø (mm)	315mm
Clear opening diameter Ø (mm)	218mm
Label	DWA
