CAST IRON GRATE FS=500X500 CO=Ø400 DOUBLE-TOOTH

CAST IRON GRATE FS=500X500 CO=Ø400 DOUBLE-TOOTH

Code STZ400R
Code STZ400R
Reference 30082
Unit pieces
Product model Toothed grate cast iron
Availablility

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem
Description

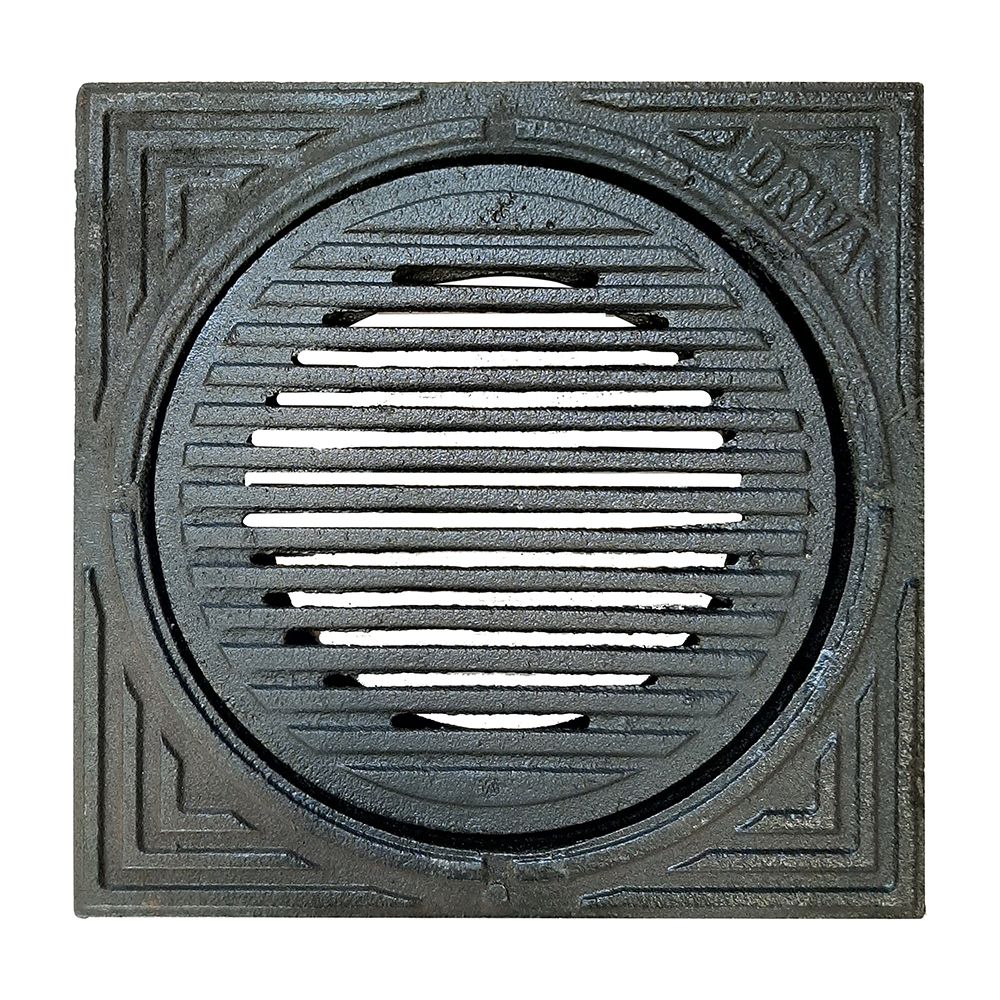

Cast iron double tongue-and-groove cover and grating with square frame and circular opening. The frame seating and the cover bearing edge are provided with a double tongue-and-groove profile, greased to ensure hydraulic watertightness. Perfect fit on PVC and PP inspection chambers (not on the collar). Provided with a bituminous coating to prevent corrosion. A prefabricated concrete seating ring can also be used to provide the necessary support for the cover. Suitable for pedestrian traffic only. Frame supplied as standard with DRWA marking.

Full description
Documents

Availablility

  • Aartselaar
  • Farciennes
  • Geel
  • Hamme
  • Hasselt
  • Herent
  • Herstal
  • Hoogstraten
  • Oostakker
  • Tielt
  • Zedelgem

Cast iron double tongue-and-groove cover and grating with square frame and circular opening. The frame seating and the cover bearing edge are provided with a double tongue-and-groove profile, greased to ensure hydraulic watertightness. Perfect fit on PVC and PP inspection chambers (not on the collar). Provided with a bituminous coating to prevent corrosion. A prefabricated concrete seating ring can also be used to provide the necessary support for the cover. Suitable for pedestrian traffic only. Frame supplied as standard with DRWA marking.

Full description
Become a professional online customer
  • Access to your net prices
  • Exclusive online promotions
  • Tracking of your orders, deliveries, and invoices
  • Insight into the currently available stock per branch
  • 1% additional online order discount on top of your net prices

Product information

(Well informed)

Description

(In detail)

Cast iron double tongue-and-groove cover and grating with square frame and circular opening. The frame seating and the cover bearing edge are provided with a double tongue-and-groove profile, greased to ensure hydraulic watertightness.

  • Perfect fit on PVC and PP inspection chambers (not on the collar).
  • Provided with a bituminous coating to prevent corrosion.
  • A prefabricated concrete seating ring can also be used to provide the necessary support for the cover.
  • Suitable for pedestrian traffic only.
  • Frame supplied as standard with DRWA marking.

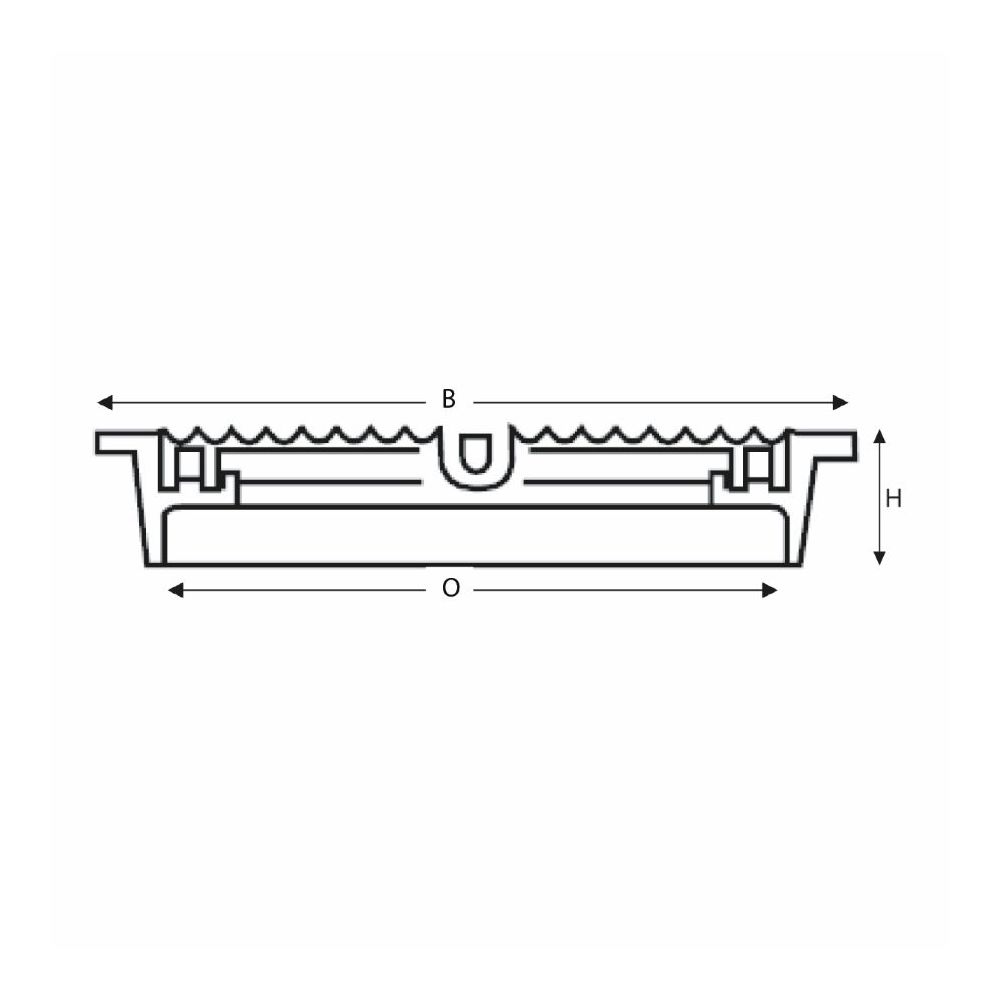

Technical specifications

(Everything you should know)
Product type Toothed grate cast iron
Width (mm) 500mm
Load class A15
Shape Round
Certificate Uncertified
Raw material Cast iron
Height (mm) 93mm
Length (mm) 500mm
Lid properties Hydraulic seal
Clear opening diameter Ø (mm) 400mm
Product type Toothed grate cast iron
Width (mm) 500mm
Load class A15
Shape Round
Certificate Uncertified
Raw material Cast iron
Height (mm) 93mm
Length (mm) 500mm
Lid properties Hydraulic seal
Clear opening diameter Ø (mm) 400mm
